Seaward Apollo 600+ Pro Printer Kit - 5th Edition Compliant

SKU: SEAWAPOLLO600PLUSKITSA
  • Includes a highly advanced PAT tester with a built in risk assessment tool
  • Comprehensive range of electrical tests updated for 5th edition testing
  • Seaward barcode scanner and Test n Tag Pro Printer included
More Info
In stock - Next day delivery available
Choose Your Free Gift

For a limited time only, receive a FREE limited edition kit (worth up to £235) with every Apollo 500+ or 600+ purchase.

- Only available while stocks last.


Kit includes: 230V adaptor | Cloverleaf adaptor | 1000 Pass / 1000 Fail labels | Plug checker cards | 1 Year PATGuard 3 software licence | Guide to portable appliance testing

Seaward Apollo 600+ Pro Printer Kit (380A9890) - 5th Edition Compliant

The Seaward Apollo 600+ Pro Printer Kit (380A9890) contains one of the most advanced appliance testers on the market as well as a range of useful accessories that streamline the PAT testing process.

Updated to be fully compliant with the 5th edition of the IET Code of Practice, the Apollo 600+ includes functions such as:

  • Pass/Fail limit of 5mA for all protective & touch leakage tests in line with 5th edition
  • New Test sequence for Class 2 FE equipment

Seaward Apollo 600+ PAT Tester

The Seaward Apollo 600+ PAT Tester is a highly advanced appliance tester that is capable of testing earth bond, insulation, RCD, leakage current, power sockets, load current/power and polarity. This makes it suitable for appliances in commercial, domestic or industrial environments.

The large internal memory of the Seaward Apollo 600+ has room for 50,000 test results organised into a useful database which is now searchable thanks to a recent firmware update. A full QWERTY keyboard allows swift data entry and it even has Bluetooth connectivity with compatible printers.

The Seaward Apollo 600+ also has a built in risk assessment tool that suggests appropriate re-test dates for appliances. An integrated digital camera allows the user to take pictures of appliances in order to maintain a visual record.

Seaward Test n Tag Pro Printer

The Seaward Test n Tag Pro Printer is a compact, portable PAT label printer that allows the user to print customised PAT labels on site. PAT labels can be printed with a barcode, appliance ID information, test dates, test results and other information. It connects to the Seaward Apollo 500+ tester via a wireless Bluetooth connection.

Seaward Barcode Scanner

In order to better organise the onboard database, the kit includes a Seaward Barcode Scanner. This allows the user to immediately recall appliance information to the screen and organise test results in a logical order under the correct appliance within the large internal memory.

Other Accessories

The Seaward Apollo 600+ Pro Printer Kit contains a set of other accessories that can be used to enhance the PAT testing process. These include a 110V appliance adaptor as well as a custom carry case.

Seaward part number: 380A9893

We know the importance of getting the right instrument for the job, so we now offer a "Try Before You Buy" option on many of our products to help you make a more informed buying decision. Simply give us a call or click here to find out more.

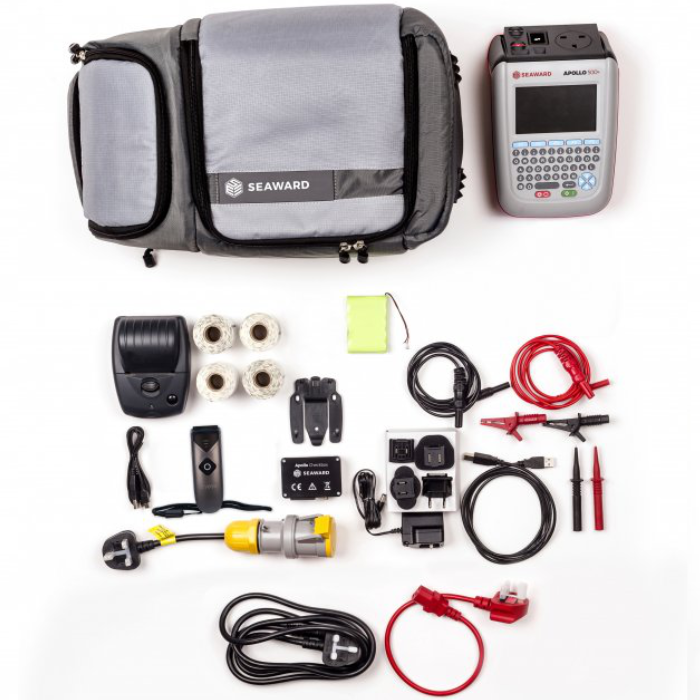

What's In The Box?

  • Seaward Apollo 600+ PAT Tester
  • Seaward Test n Tag Pro Printer
  • Seaward 1D Barcode Scanner
  • 110V Test Adaptor
  • 10 x Free Rolls of Labels for either Pro or Elite Printer (see above for details)
  • Apollo Kit Carry Case
Specification

Earth Continuity

  • Test Current: +/- 200mA DC
  • Display Range: 0.01 – 19.99Ω
  • Pass Value: User Defined

Insulation Resistance

  • Test Voltage: 500V / 250V DC @ 1mA nominal
  • Display Range: 0.01MΩ - 19.99MΩ
  • Pass Value: User Defined

IEC Lead Test

  • Test voltage: 5V AC nominal
  • Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

  • Test Voltage: Supply voltage, maximum load current 16A
  • Display Ranges: 0.01mA to 19.99mA
  • Pass Value: User Defined

Touch Current

  • Test Voltage: Supply Voltage, maximum load current 16A
  • Display Range: 0.00 – 3.50mA
  • Pass Value: User defined

Load Power/Current

  • Test Voltage: 230V +10%, -15%, maximum load current 16A
  • Test Duration: Programmable up to a maximum of 255s depending on load
  • Display Range: 0.00kVA – 4.00kVA, 0.00A – 16.00A

Alternative Leakage Current

  • Test Voltages: >25Vac <50Vac
  • Display Range: 0.00mA to 19.99mA
  • Pass Value: User Defined

RCD Test

  • Test Voltage: 230V +10%, -15%
  • Test Current: 15mA / 30mA rms sinusoidal
  • Display Range: 0ms - 2000ms
  • Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

  • Voltage Range: 207V – 253Vac
  • Indicates configuration of voltage potential: Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

  • Memory size: 50,000 records & 2000 photos
  • Weight: 1.5kg
  • Dimensions: 230mm x 150mm x 100mm
  • Power Source: Mains or rechargeable battery pack
