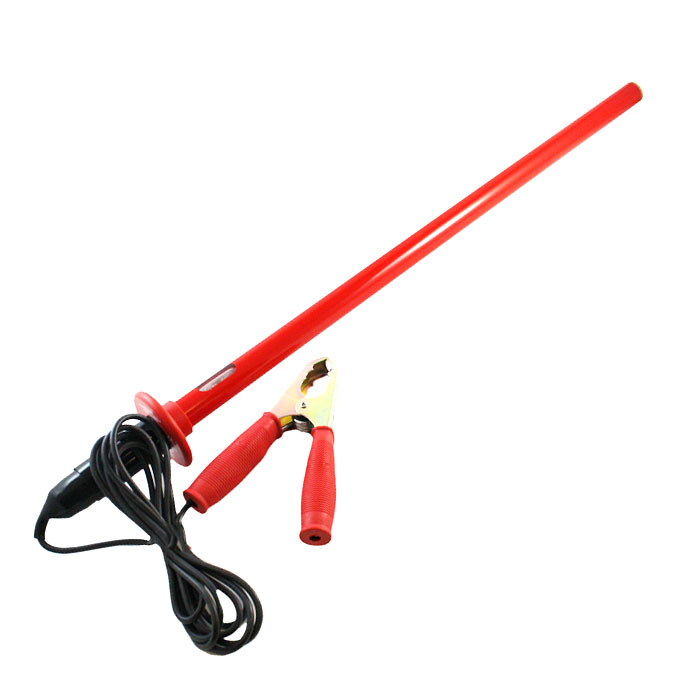

Seaward KD1E/22 Potential Indicator - 113A912
A highly robust KD1E/22, portable HV AC/DC voltage indicator. This HV potential indicator provides a means of confirming the presence of voltage on earthed neutral electrical circuits. from 3kV to 22kV. Conforming in design lengths to recommended, creepage and safety standards, the Seaward KDIE/22 series features high grade PVC tubing and incorporates totally encapsulated resistor chains part number 113A912.
Seaward KD1E/22 Key Features:
- Duplicate neon indicators within shock resistant sleeves.
- Permanently connected earth cable.
- Hand guard
- Direct access possible to practically every type of vertical or horizontal metal clad switch gear.
- UK Electricity Council Approval list G9
For additional safety a Seaward proving unit (PH3) is also available and should be used before and after the high voltage indicator is employed.
Seaward KD1E Comparison Table
Neon Indicators Digital Indicators KD1E KD1E/19 KD1E/19S KD1E/22 KD1E/33 KD1E/15D KD1E/33D Maximum System Voltage 11kV 19kV 19kV 22kV 33kV 15kV 33kV Maximum Voltage to Earth 6.6kV 11kV 11kV 12.5kV 19kV 8.6kV 19kV Threshold Voltage 300V 300V 300V 300V 300V Measuring Range 0.00kV-8.6kV 0.00kV-19.0kV Resolution 10V 100V Sensitivity AC/DC AC/DC AC Only AC/DC AC/DC AC/DC AC/DC Circuit Current
Dielectric Leakage Current
Length (mm) 330 330 330 665 670 600 600 Diameter (mm) 25 25 25 25 25 25 25 Handle Length (mm) 105 105 105 90 250 235 235 Hand Guard Height (mm) 105 105 105 90 250 235 235 Contact Electrode Type Domed Flat Flat Domed Flat Domed Domed
- Maximum System voltage: 22kV
- Maximum Voltage to earth: 12.5kV
- Threshold voltage: 300V
- Measuring Range: N/A
- Resolution: N/A
- Sensitivity: AC/DC
- Circuit current: 3.5mA
- Nominal: @ 22.kV (IEC 61234-2)
- Dielectric leakage current: 12uA
- Nominal: @ 26.4kV (IEC 61234-2)
- Length (mm): 665
- Diameter (mm): 25
- Handle length (mm): 90
- Hand guard height (mm): 23.5
- Contact Electrode Type: Domed
- Seaward KD1E/22 HV Potential Indicator
- Carry Bag with pouch for optional PH3 Proving Unit
