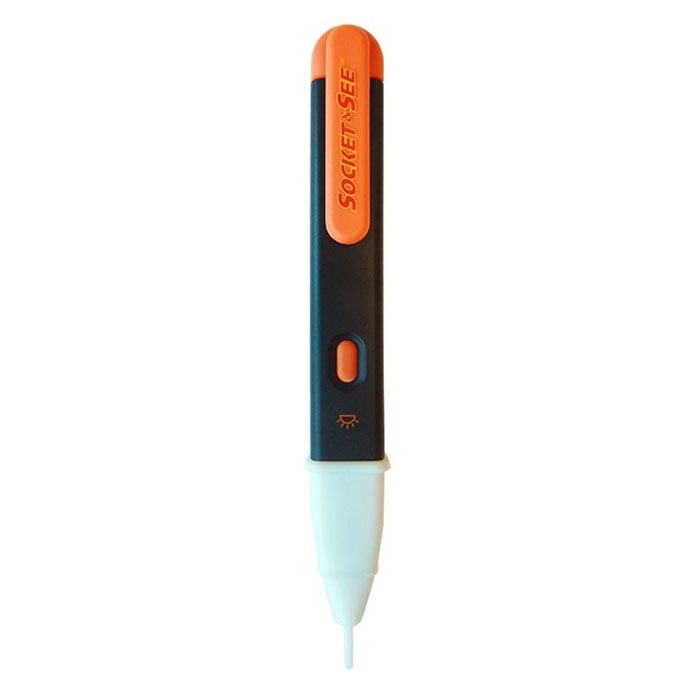

Socket & See VVD PRO AC Voltage Detector

SKU: SOCKVVDPRO
  • Non contact voltage detector
  • Operating voltage range 50 - 1000V AC
  • Visual and physical indication for use in noisy/poorly lit areas
More Info
In Stock - Available Next Day

Socket & See VVD PRO AC Voltage Detector

The Socket & See VVD PRO AC Voltage Detector is a handy device capable of alerting the user to a discovered voltage through two distinct alerts.

When a voltage within the given range 50 - 1000V AC is detected by the VVD PRO, a red LED illuminates and a vibration can be felt. These functions make the detector particularly useful in noisy or dim areas. The non contact detector also includes a more balanced sensitivity for more accurate results.

Designed to be compact and sturdy, the VVD PRO includes an incorporated clip and bright LED flashlight. Suitable for CAT IV use, this instruments is an ideal inclusion in any electrical engineers kit.

Key Features

  • Non contact voltage detection
  • Operating voltage range of 50 - 1000V AC
  • Red flashing LED for visual indication
  • Physical indication given through vibration feature
  • Balanced sensitivity for better accuracy
  • Lightweight and pocket sized
  • Built-in LED flashlight
  • Suitable for CAT IV use

Socket & See part number: SOC/VVDPRO

Specification

Specification

Operating Voltage Range 50 - 1000 VAC
Operating Frequency Range 50 - 60Hz
Temperature Range -10˚C to 50˚C
Humidity 80% max
Safety Standard BSEN 61010
Batteries 2 x AAA
Dimensions 150 x 26 x 20mm
Weight (no batteries) 28g
Label Type Size Download
pdf Socket & See Smart Meter Installation Kit pdf 848.1 KB Download
pdf Socket & See VVD PRO AC Voltage Detector Datasheet pdf 154.2 KB Download
pdf Socket & See VVD PRO AC Voltage Detector Manual pdf 250.6 KB Download
