Sofamel PATC-MPUB/5050 Three-Phase Short Circuiting and Earthing Kit

Sofamel
SKU: SOFAPATCMPUB5050
  • Ideal for use with three-phase systems in medium-voltage substations
  • Four copper cables can be joined using trifurcating connector
  • Three MPU clamps with simple screw tightening mechanism
More Info
Typically ships in 14-28 working days

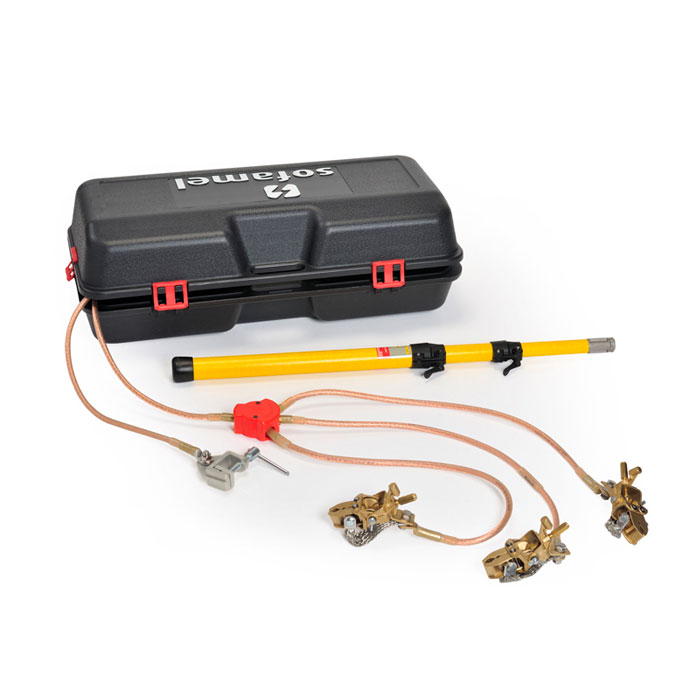

Sofamel PATC-MPUB/5050 Three-Phase Short Circuiting and Earthing Kit

The Sofamel PATC-MPUB/5050 Short Circuiting and Earthing Kit is ideal for phase earthing and short circuiting in medium voltage substations. Once installed, it helps protect the user from accidental commissioning or possible return voltages when he/she is carrying out repairs or maintenance.

The three MPU Clamps contained within the Sofamel PATC-MPUB/5050 can be fixed onto cylindrical conductors (ø30mm max.), flat bars (45mm max.), fixing points (25mm max.) and bending bus bars through a simple screw mechanism.

Four copper cables - one 2m long and three 0.75m long - allow the user to correctly earth/short out the right circuit and their PVC insulation ensures they are safe to use. A rubber-insulated trifurcating connector allows the copper wires to be safely connected to three-phase systems.

A TT-38A self-milling earthing lathe is also included alongside a 1.5m telescopic pole and a metallic transport case.

Sofamel part number: PATC-MPUB/5050

Key Features

  • Three MPU clamps with max. diameter of 30mm
  • Three 0.75m copper cables
  • One 2m copper cable
  • One rubber-insulated four-way connector
  • One TT-38A self-milling earthing lathe
  • One 1.5m telescopic pole
  • One metallic carry case

What's In The Box?

  • 3 MPU clamps with max. diameter of 30mm
  • 3 0.75m copper cables
  • 1 2m copper cable
  • 1 rubber-insulated four-way connector
  • 1 TT-38A self-milling earthing lathe
  • 1 1.5m telescopic pole
  • 1 metallic carry case
