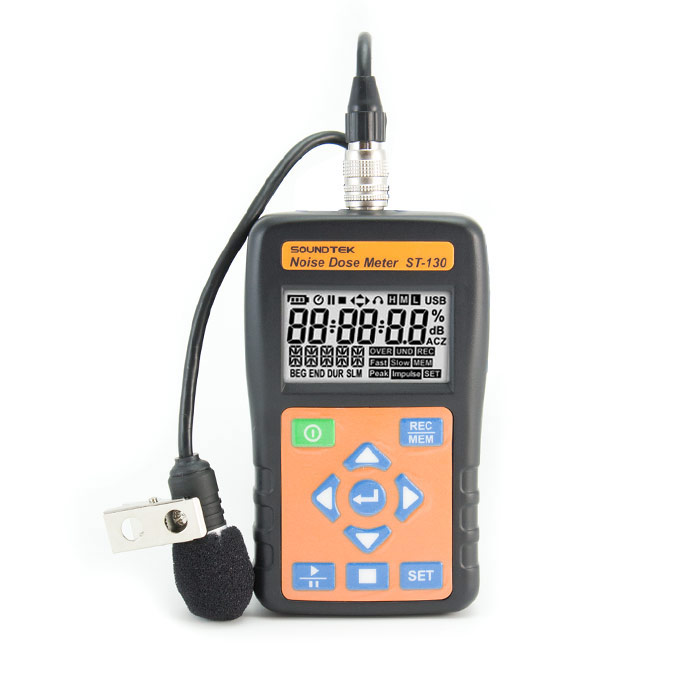

Tenmars ST-130 Noise Dose Meter

SKU: TENMST130
  • Performs OSHA and IEC Noise accumulation workplace surveys
  • Six built-in standard setups (OSHA, MSHA, DOD, ACGIH, ISO85, ISO90)
  • Supplied with software CD and USB download cable for PC's
More Info
In Stock - Available Next Day

Tenmars ST-130 Noise Level Dose Meter

With six built-in standard dose measurement setups (OSHA, MSHA, DOD, ACGIH, ISO85, ISO90), the Tenmars ST-130 Noise Dose Meter is the ideal instrument for performing OSHA and IEC Noise accumulation surveys. This noise dosimeter comes with a USB download cable and CD software for downloading the measured data. The meter can also be used in SLM (Sound Level meter Mode)

Capable of storing up to 1,000,000 readings with sampling times between 1 second and 24 hours, the Tenmars ST-130 features a battery life of approximately 24 hours and an adjustable Criterion Level, Exchange Rate and Threshold, offering a range of data options. Measurement ranges 30dB to 130dB (A); 35dB to 130dB (C); 40dB to 130dB (Z.)

Tenmars ST-130 Key Features

  • Performs OSHA and IEC Noise accumulation surveys
  • Six built-in standard dose measurement setups (OSHA, MSHA, DOD, ACGIH, ISO85, ISO90)
  • One user-defined measurement setup
  • Adjustable Criterion Level, Exchange Rate, and Threshold
  • Data logger up to 1,000,000 readings, sampling times between 1 sec and 24 hours
  • Stores up to 10,000 dose meter survey result
  • Data includes Start/Stop Time, %Dose, TWA8, LEP, 8h, Leq, SEL, LN%
  • SPLMAX, SPLMIN, PeakMAX, when used in the Dose meter mode
  • In sound level mode, meter displays sound level, time-averaged sound level (Leq), PeakMAX, and sound exposure level (SEL)
  • USB interface with Windows XP / Vista / 7 / 8

What's In The Box?

  • Tenmars ST-130 Noise Dose Meter
  • ST130 User's manual
  • Foam lined carrying case
  • 1/2 inch Electret condenser microphone with wind screen and clothing clip
  • Microphone windscreen
  • Software on CD
  • Mini USB Cable (Mini B type)
  • 9 volt battery
  • Manufacturers Calibration Certificate
Specification
  • Display: Single LCD Maximum reading 999999
  • Display Refresh Rate: 1 Time/second
  • Microphone (ST-130): 1/2" Electret condenser microphone
  • Accuracy: ±1.4dB at 94dB/1kHz
  • Frequency Weighting: A, C, Z
  • Time Weighting: Fast, Slow and Impulse
  • Starting Time: < 10 seconds
  • Frequency Range: 20Hz to 8kHz
