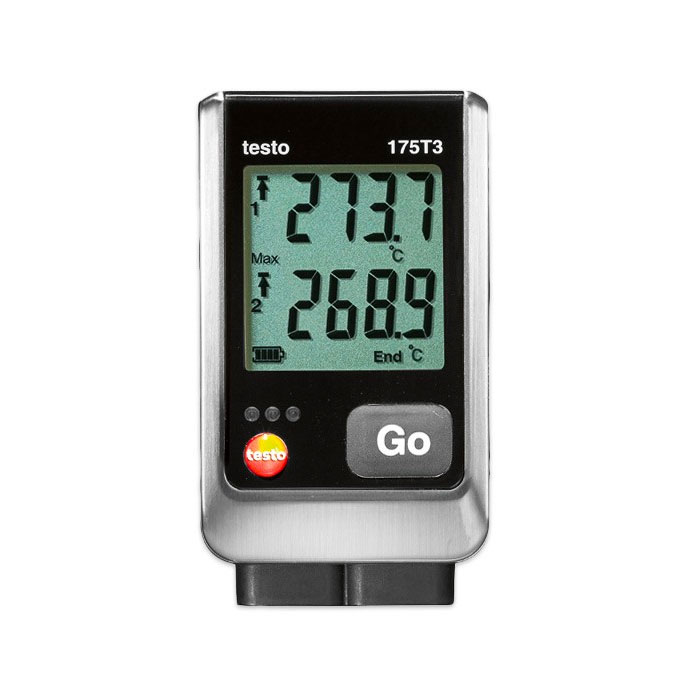

Testo 175-T3 Temperature Data Logger

SKU: TESTO175T3
Equipped with 2 external sensor connections for simultaneous measurement of two temperature points and memory for 1 million readings.
More Info
In Stock - Available Next Day

Testo 175-T3 Temperature Data Logger

The Testo 175-T3 Temperature Data Logger has two connections for external thermocouple probes (Type K and Type T), allowing temperature to be monitored and recorded simultaneously at two different points.

Results are clearly visible in real time on the large display, while the vast memory of the Testo 175-T3 allows up to 1 million temperature readings to be stored. In addition to this the 3 year battery life makes this the perfect data logger for long term recording applications.

An ideal application for the Testo 175-T3 Data Logger is performing targeted checks on flow and return temperatures of individual radiators to ensure that they are working correctly and heating rooms efficiently. The Testo 175-T3 temperature logger is also suitable for monitoring temperatures in food storage areas.

The Testo 175T3 has USB and SD card interfaces so that stored data can be quickly transferred to a PC for analysis and reporting using free ComSoft Basic 5 software that can be downloaded from the Testo website.

Testo 175-T3 Features:

  • Data security from non-volatile memory, anti theft lock and password protection
  • No loss of data when batteries go flat
  • Large, clear display with backlight
  • Store up to 1,000,000 results
  • Up to 3 years battery life
  • USB and SD Card interfaces for quick data transfer
  • Two external sensor connections for Type K and Type T thermocouples

Testo Part Number: 0572 1753

What's In The Box?

  • Testo 175-T3 Data Logger
  • Wall Bracket
  • Lock
  • Battery
  • Calibration Protocol

Please note that a USB cable or SD Card are not supplied nor are any temp. probes.

Specification
  • Sensor: TC (Types K and T)
  • Channels: 2 x external
  • Measurement Units: °C, °F
  • Type K Temperature Range: -50 to 1000°C
  • Type T Temperature Range: -50 to 400°C
  • Accuracy: ±0.5°C (-50 to 70°C), ±0.7% of mv (70 to 1000°C)
  • Resolution: 0.1 °C
  • Measurement Cycle: 10 secs - 24 hours
  • Memory: 1,000,000 readings
  • Operating Temperature: -20 to 55°C
  • Batteries: 3 x AAA
  • Battery Life: 3 year at 15 min. meas. rate
  • Protection: IP 65
