Testo 176-H2 Temperature and Humidity Data Logger

Testo
SKU: TESTO176H2
  • IP68 rating and impact resistant metal casing enable installation in challenging conditions
  • Measure temperature from -20˚C to 70˚C and humidity from 0 to 100%
  • Eight-year battery life and large memory enable long-term monitoring
More Info
Typically ships in 2-4 working days

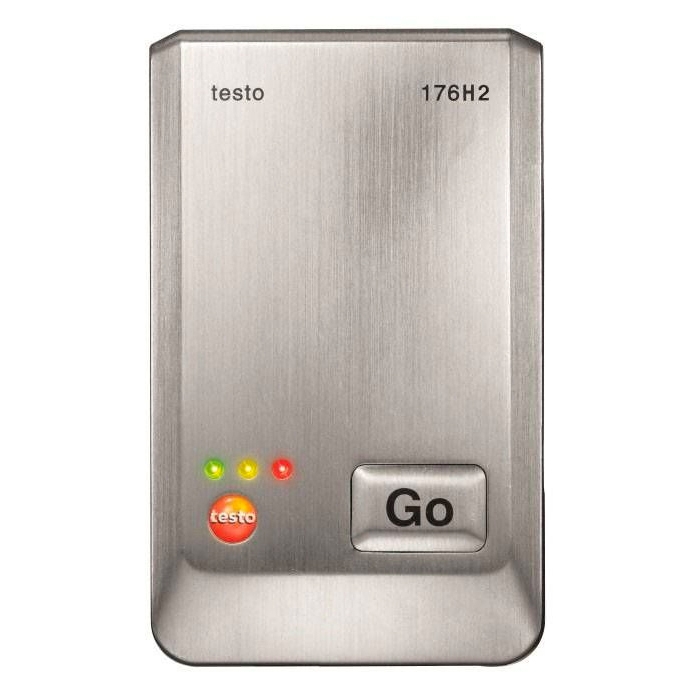

Testo 176-H2 Temperature and Humidity Data Logger

The Testo 176-H2 Temperature and Humidity Data Logger measures temperature and humidity simultaneously via two external probes to monitor ambient conditions in storage and transport facilities. When connected to an NTC probe, the monitor has a temperature measurement range of -20˚C to 70˚C with accuracy of ±0.2˚C and resolution of 0.1˚C. A capacitive humidity sensor, meanwhile, will measure humidity between 0 and 100% RH. Please note that probes are not provided as standard with the Testo 176-H2.

The Testo 176-H2 is ideal for long-term assessment as it has a large internal memory for up to 2 million readings. The user can adjust the measurement rate between 1s and 24h so assessment can be extensive or intensive as required. The monitor also has an eight-year battery life so once installed it will last a very long time without the need for any further input from the user.

Data can be downloaded from the Testo 176-H2 using a USB cable or an SD card (not included) and a free ComSoft Basic software package can be downloaded from Testo’s website in order to analyse, report and archive data.

The Testo 176-H2 has tough metal casing which is highly impact resistant and IP68 ingress protection rated. It is therefore suitable for installation in a range of challenging conditions. A wall bracket is provided alongside the monitor in addition to a lock, battery, and calibration protocol. The lock means that data cannot be accessed by unauthorised persons so it is therefore completely secure.

Testo part number: 0572 1756

Key Features

  • Connects to NTC and humidity sensor
  • Dual-channel measurement
  • Temperature range: -20˚C to 70˚C
  • Humidity range: 0 to 100%
  • Internal memory: 2 million values
  • SD-card and USB ports
  • Battery life: 8 years
  • IP68-rated
  • Impact resistant

What's In The Box?

  • Testo 176-H2 Temperature and Humidity Data Logger
  • Instructions for Testo 176-H2 Temperature and Humidity Data Logger
  • Wall holder
  • Lock
  • Battery
  • Calibration protocol
Specification

Temperature - NTC

  • Measuring range: -20 to +70 °C
  • Accuracy: ±0.2 °C (-20 to +70 °C); ±0.4 °C (Remaining Range)
  • Resolution: 0.1 °C

Humidity - Capacitive

  • Measuring range: 0 to 100 %RH*
  • Accuracy: Dependent on selected probe
  • Resolution: 0.1 %RH

* Not for condensing atmospheres. For continuous applications in high humidity (>80 %RH at ≤30 °C for >12 h, >60 %RH at >30 °C for >12 h), please contact us via our website.

General technical data

  • Dimensions: 103 x 63 x 33 mm
  • Operating temperature: -20 to +70 °C
  • Protection class: IP68
  • Channels: 4 external
  • Battery type: 1 x Lithium (TL-5903)
  • Battery life: 8 years at 15 min. meas. rate
  • Memory: 2,000,000 measuring values
  • Storage temperature: 40 to +85 °C
