Testo 440 Air Flow Combo Kit 2

SKU: TESTO440AFCOMBOKIT2
  • Powerful, versatile Testo 440 Multifunction Climate Meter
  • 16mm and 100mm vane probes measure air flow and temperature
  • Calculation of volume flow using onboard software
More Info
In Stock - Available Next Day

Testo 440 Air Flow Combo Kit 2

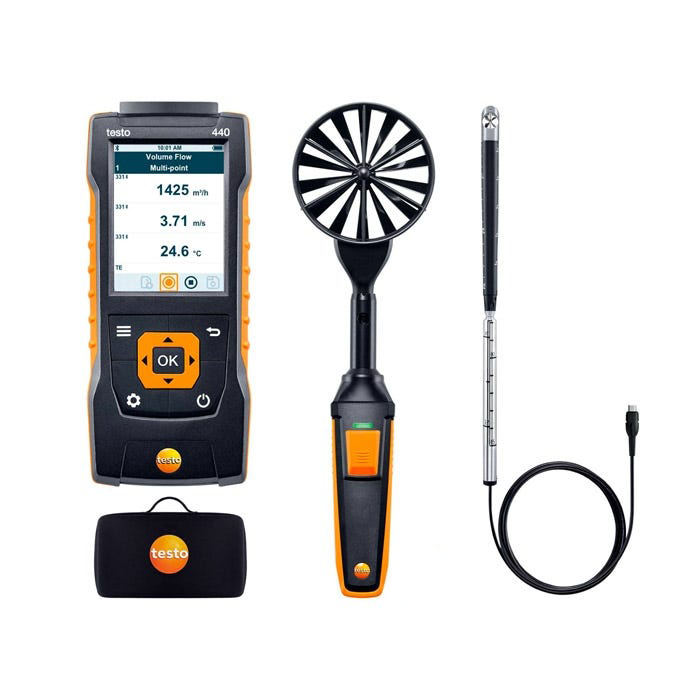

Testo 440 Air Flow Combo Kit 2 provides the user with a helpful solution for measuring air flow velocity and air temperature in ducts and outlets. The main instrument in the set is the Testo 440 Multifunction Climate Meter and this is supplemented by a 16mm vane probe and a 100mm vane probe.

The Testo 440 Multifunction Climate Meter is compatible with a wide range of different conventional and wireless probes to measure a multitude of different factors that can affect the indoor climate. These include air flow velocity, air temperature, carbon monoxide, carbon dioxide, light levels and humidity. Various calculations can be produced using values from connected probes including volume flow, turbulence, indication of mould-friendly conditions and much more. The meter has advanced onboard software for this purpose.

The vibrant colour display on the Testo 440 can show up to three readings simultaneously and also shows the intuitive operational menus that can be easily navigated using the simple push-button interface. The meter has internal storage for up to 7500 readings and these can be downloaded in Excel format to a PC using the supplied USB cable.

The 100mm Testo vane probe supplied in the kit is intended for measuring air flow at vents and other outlets, thereby also permitting the calculation of volume flow. It has an air flow velocity range that goes from 0.3 to 35m/s and it has a temperature sensor that can measure between -20˚C and 70˚C. The other probe is a 16mm vane probe with a slimline design that enable it to reach into ventilation shafts and ducts. It can measure air flow from 0 to 50m/s with ±0.2m/s +1% accuracy and 0.1m/s resolution.

The Testo Air Flow Combo Kit 2 also contains a useful carry case, calibration protocols for the probes and the Testo 440 and a USB cable. It is a comprehensive solution for measuring air flow at vents and within ducts.

Testo part number: 0563 4407

Key Features

  • Testo 440 Multifunction Climate Meter
  • Testo 16mm Vane Probe
  • Testo 100mm Vane Probe
  • Wireless Bluetooth Handle
  • USB Cable
  • Useful Carry Case
  • Calibration protocols
  • Batteries

What's In The Box?

  • Testo 440 Multifunction Climate Meter
  • Testo 16mm Vane Probe
  • Testo 100mm Vane Probe
  • Wireless Bluetooth Handle
  • USB Cable
  • Useful Carry Case
  • Calibration protocols
  • Batteries
Specification

100mm Vane Probe

  • Air flow velocity: 0.3 to 35m/s
  • Air flow velocity accuracy: ±0.1m/s + 1.5%
  • Air flow velocity resolution: 0.01m/s
  • Temperature range: -20˚C to 70˚C
  • Temperature accuracy: ±0.5˚C
  • Temperature resolution: 0.1˚C

16mm Vane Probe

  • Air flow velocity: 0.6 to 50m/s
  • Air flow accuracy: ±0.2m/s
  • Air flow resolution: 0.1m/s

Testo 440 Multifunction Climate Meter

  • Dimensions: 154 x 65 x 32 mm
  • Operating temperature: -20 to +50 °C
  • Connectable probes: 1 x digital probe with cable or 1 x Temperature NTC TUC, 1 x digital Bluetooth probe or testo Smart Probe, 1 x Temperature TC Type K
  • Battery type: 3 AA mignon 1.5 V
  • Battery life: 12 h (typically vane measurement)
  • Data transfer: Bluetooth®; USB interface
  • Storage temperature: -20 to +50 °C
  • Weight: 250 g
Label Type Size Download
pdf Testo 440 Brochure pdf 6.9 MB Download
pdf Testo 440 Datasheet pdf 3.3 MB Download
pdf Testo 440 Instruction Manual pdf 3.7 MB Download
