Testo 549 Digital Refrigeration Manifold

Be the first to review this product

  • 60 current refrigerant profiles stored in the instrument
  • Calculation of superheating and subcooling in real time (with optional clamp probe)
  • Temperature-compensated leakage test, 2 temperature-compensated pressure sensors

rrp £219.00

now £178.50 (Ex. VAT) £214.20 (Inc. VAT)

rrp £219.00

Please select a free gift below.

"60 current refrigerant profiles stored in the instrument"

  • Description

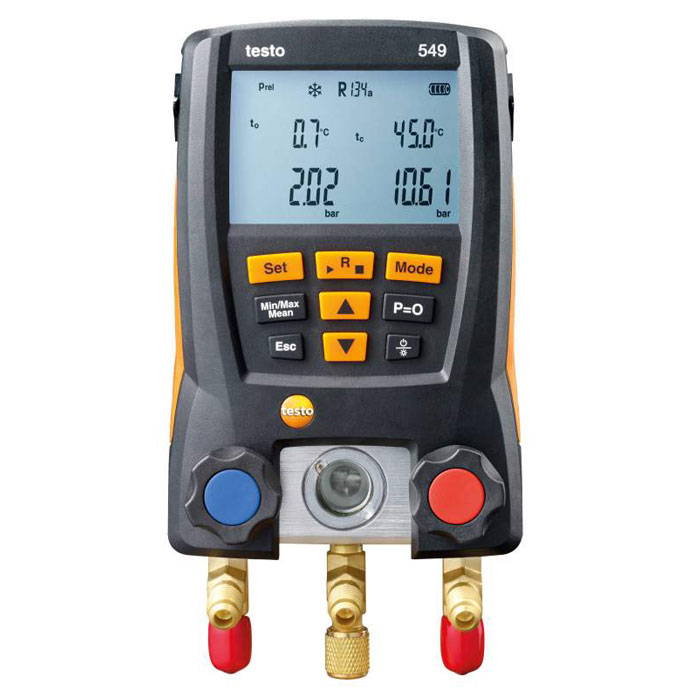

    Testo 549 Digital Refrigeration Manifold

    Ideal for all measurement work on refrigeration systems and heat pumps, the Testo 549 Digital Refrigeration Manifold precisely measures high side / low side pressure and instantly displays the corresponding saturation / evaporation temperatures for 60 refrigerants.

    Boasting 60 on-board refrigerant profiles, the Testo 549 is the only gauge required for air conditioning and refrigeration installation or servicing, ranging from large tonnage systems to mini-spills.

    With its backlit display updating every 1/2 second, the Testo 549 Digital Refrigeration Manifold makes it easy to spot fast changing system trends in real-time and the 0.5% full scale accuracy of the pressure sensors assist you in nailing down operating conditions.

    Rugged and splash-proof with an IP42 rating, the Testo 549 Digital Refrigeration Manifold offers you piece of mind with a 5-year warranty upon registration and, by utilising optional temperature probes, the Testo 549 can instantly display automatic superheat and sub-cool calculations at the push of a button.

    Testo Part Number: 0560 0550

     Smart Probes
    Refrigeration Kit
    549550557570
    Pressure measuring range HP/LP >60bar >60bar >60bar >60bar >50bar
    Pressure measurement accuracy >0.5% of f.v. >0.5% of f.v. >0.5% of f.v. >0.5% of f.v. >0.5% of f.v.
    Dual-channel temperature measurement
    Three-channel temperature measurement
    Four-way valve manifold
    Internal memory, documentation With App With App With App With App
    Refrigerant profiles stored >80 60 60 60 40
    Refrigerant update Via App No Via App Via App Via EasyKool Software
    Automatic absolute pressure measurement
    Heat pump mode
    Temperature-compensated leakage testing
    Vacuum measurement   Indication Indication External probe
    Compatible with EasyKool software
    App & Bluetooth
  • Specification

    • Storage Temperature: -20 to +60 °C
    • Operating Temperature: -10 to +50 °C
    • Battery Life: ca. 150 h
    • Weight: 1060 g
    • Dimensions: 200 x 113 x 62 mm

    Probe - NTC

    • Measurement Range: -50 to +150 °C
    • Accuracy: ±0.5 °C
    • Resolution: 0.1 °C / 0.1 °F

    Probe - Low pressure probe measurement

    • Measurement Range: 50 bar
    • Accuracy: ±0.75 % fs
    • Resolution: 0.01 bar

    Probe - High pressure probe

    • Measurement Range: 50 bar
    • Accuracy: ±0.75 % fs (±1 Digit)
    • Resolution: 0.01 bar
    • Overload: 60 bar
  • Supplied Accessories

    • Testo 549 Digital Refrigeration Manifold
    • Batteries
    • Calibration Protocol

    Please Note: Hoses not included
