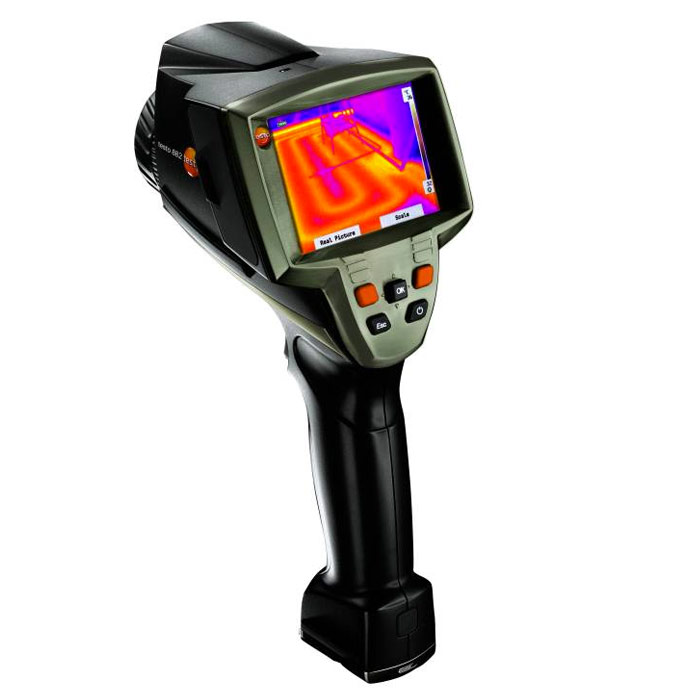

Testo 882 Thermal Imaging Camera

Be the first to review this product

  • Exceptionally high quality images at standard resolution of 320 x 240 (76,800) pixels.
  • Optional high temperature range up to 550°C.
  • Increase resolution to 640 x 480 (307,000) pixels with supplied Testo SuperResolution
(Ex. VAT) £2,990.00 (Inc. VAT) £3,588.00

Please select a free gift below.

  • Description

    Testo 882 Thermal Imaging Camera

    The Testo 882 offers incredible resolution as standard in a compact pistol-grip design allowing non-instusive thermal inspections in a wide range of inspections, with the option to measure up to 550°C increasing the possibilities even further.

    The standard resolution of 76,800 pixels allows detailed thermal images to be taken, accurately identifying the potential fault. If this still isn’t enough resolution, using Testo’s Super Resolution technology it can be increased four-fold to 307,200 pixels offering unparalleled detail.

    With a wide-angle 32° lens and excellent temperature resolution of <60mK, large areas can be surveyed in a single image while still retaining important data. Thanks to the built-in camera and powerful LEDs the Testo 882 can also take a regular visual image simultaneously for simpler identification of fault locations, even in poorly-lit areas.

    The Testo 882 also includes a special mould measurement function. By using ambient air temperature, air humidity and surface temperature, a humidity image can be created areas likely to suffer from mould.

    Testo SuperResolution Thermal Imaging Software

    All Testo thermal imaging cameras now come with Testo SuperResolution Thermal Imaging Software as standard. This advanced software package improves thermal images taken by any Testo imager thanks to an internal algorithm that takes into account sequential images and a four-fold increase in the resolution of all thermal images. It also negates the effects of an unsteady hand from the operator, instead combining images into one high-res picture.

    Key Features:

    • 320 x 240 (76,800) pixels.
    • Detects <60mK differences between -20°C to 350°C (Option high temperature range up to 550°C with an accuracy of ±2% (±3% in high temperature range).
    • Built-in digital camera.
    • Automatic recognition of hot and cold spots.
    • Special mould detection function.
    • Super Resolution Technology.

    Testo part number: 0560 0882

      865 868 871 872 875-1i 875-2i 882
    IR resolution 160 x 120 240 x 180 320 x 240 160 x 120 320 x 240
    SuperResolution 320 x 240 480 x 360 640 x 480 320 x 240 640 x 480
    Thermal sensitivity 120mK 100mK 90mK 60mK <50mK
    Measuring range -20 to 280˚C -30 to 100˚C OR
    0 to 650˚C
    -30 to 100˚C OR
    0 to 650˚C
    -20 to 350˚C
    Image refresh rate 9Hz 33Hz
    Field of view 31˚ x 23˚ 35˚ x 26˚ 42˚ x 30˚ 32˚ x 23˚
    Focusing Fixed focus Manual Manual/motor
    Min/max in area calculation
    Isotherm functions
    Surface moisture display
    Solar mode
    Integrated digital camera
    Voice recording
  • Specification

    • IR Resolution: 320 x 240 pixels
    • Field of View: 32° x 23°
    • Min. Focus Distance: 0.4m
    • Image Frequency: 33Hz
    • Thermal Sensitivity/NETD: <60mK at +30°C
    • Temperature Range: -20°C to +350°C (0°C to 550°C)
    • Accuracy: ±2% (±3% in high temperature range)
    • Battery: Li-ion rechargeable (operating time: 4 hrs)
    • Storage: 2GB SD Card (1000 images)
    • Weight: 900g
    • Dimensions (mm): 152 x 108 x 262
