TPI 717R Flue Gas Analyser Oil Kit

SKU: TPI717ROILKIT
  • Includes an oil filter and smoke pump for use on oil-fuelled installations
  • Measurement of differential temperature and pressure for input/output comparison
  • Assessment of oxygen, carbon dioxide and carbon monoxide levels
More Info
Discontinued

TPI 717R Flue Gas Analyser Oil Kit

The TPI 717R Flue Gas Analyser Oil Kit is based around the TPI 717R Flue Gas Analyser but also includes a smoke pump and an oil filter for work on oil-fired combustion systems. The analyser itself can measure oxygen and carbon monoxide levels in flue gas as well as temperature and pressure. Differential temperature and pressure comparison allows the user to check flow and temperature on both input and output pipes. This also allows calculation of carbon dioxide, CO/CO2 ratio, efficiency, and excess air content. Further options include timed tightness/let by testing and timed ambient CO build-up. If dangerous CO concentrations are detected, the instrument will not switch off.

Results are displayed by the TPI 717R on a backlit, digital display and there is enough space on the internal memory for up to 100 data sets with serial numbers and a time-and-date stamp. These can then be printed out on the included IR printer for instant hard copies on site. The screen also flashes up with a countdown to the next service date in order to help maintain the analyser.

The supplied flue probe has both water trap and pump protection filters whilst the oil filter adds further protection from damaging infiltration. The TPI 717R has a six-year warranty as long as it is provided with regular servicing and a layer of rubber boot cladding provides further protection. With a wide range of potential measurements, the TPI 717R is an excellent instrument for use on oil installations.

TPI part number: 717R-Kit 1 Oil

Key Features

  • Oxygen measurement: 0 to 25%
  • Carbon monoxide measurement: 0 to 10000ppm
  • Carbon dioxide calculation: 0 to 25%
  • Temperature measurement: -40˚C to 800˚C
  • Pressure measurement: -150mBar to +150mBar
  • Differential calculations
  • Efficiency and excess air calculation
  • Tightness/let by testing
  • Ambient CO measurement
  • Wireless A740 IR Printer
  • Oil filter and smoke pump included
  • 6-year warranty

We offer the following kits for the TPI 717R:

  Standard Kit Kit 1 Kit 2 Kit 3 Kit 4 Kit 5 Oil Kit
TPI 717R Flue Gas Analyser
A740 IR Printer
2 x CM21K Temperature Pipe Clamp Probes
CPA1 Probe Set
TPI 719 Gas Leak Detector
Oil filter
Smoke Pump



TPI 717R Kit Featured Contents

  • TPI 717R Flue Gas Analyser

TPI 717R Kit 1 Featured Contents

  • TPI 717R Flue Gas Analyser
  • TPI A740 IR Printer

TPI 717R Kit 2 Featured Contents

  • TPI 717R Flue Gas Analyser
  • TPI A740 IR Printer
  • 2 x CK21M Pipe Clamps

TPI 717R Kit 3 Featured Contents

  • TPI 717R Flue Gas Analyser
  • TPI A740 IR Printer
  • 2 x CK21M Pipe Clamps
  • CPA1 Probe Set

TPI 717R Kit 4 Featured Contents

  • TPI 717R Flue Gas Analyser
  • TPI A740 IR Printer
  • 2 x CK21M Pipe Clamps
  • TPI 719 Gas Leak Detector

TPI 717R Kit 5 Featured Contents

  • TPI 717R Flue Gas Analyser
  • TPI A740 IR Printer
  • 2 x CK21M Pipe Clamps
  • CPA1 Probe Set
  • 719 Gas Leak Detector

TPI 717R Oil Kit Featured Contents

  • TPI 717R Flue Gas Analyser
  • TPI A740 IR Printer
  • Smoke pump
  • Oil filter

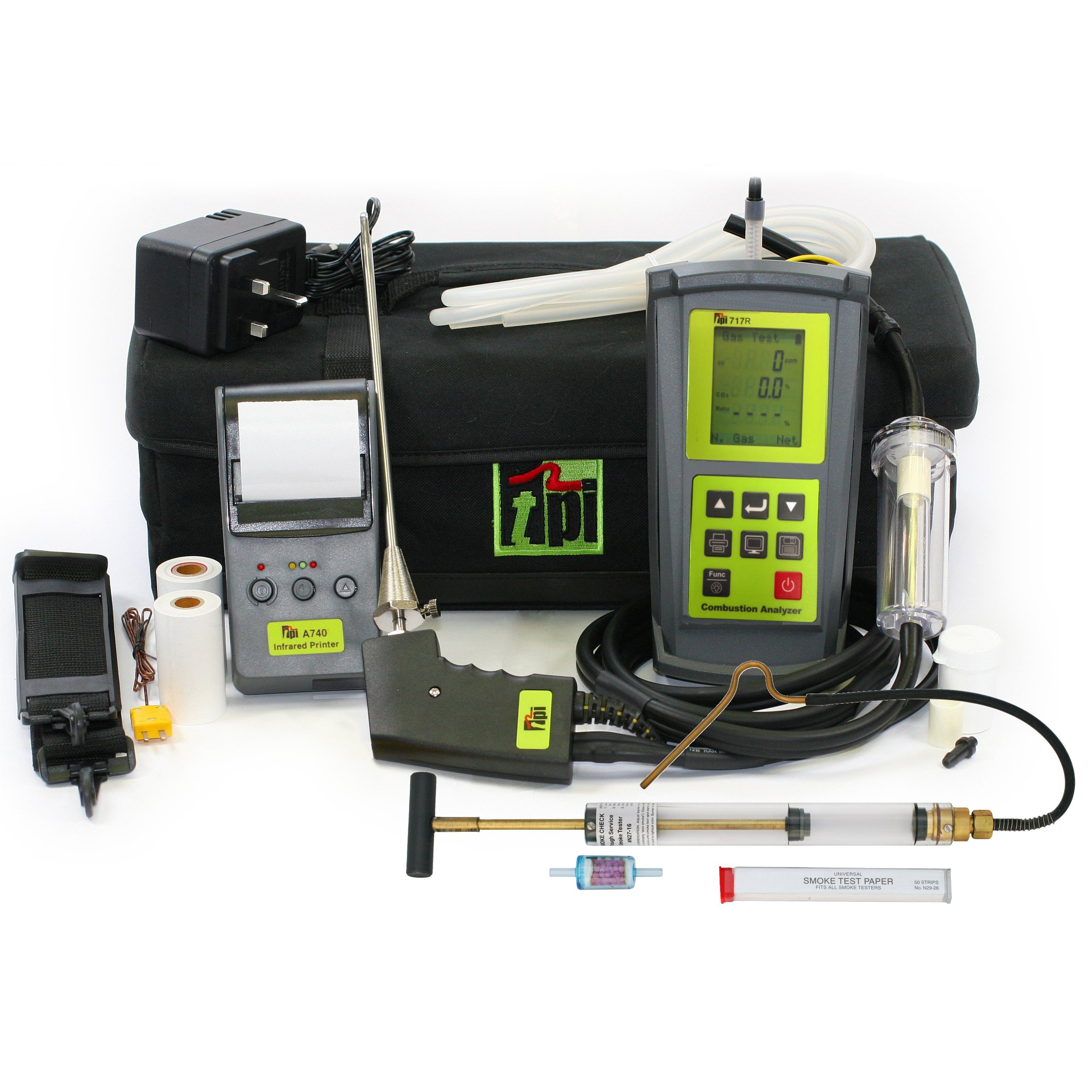

What's In The Box?

  • TPI 717R Flue Gas Analyser
  • Flue Temperature Probe
  • ‘K’-Type Temperature Air Probe GK11M
  • In-Line Water Trap Bowl Filter Complete
  • Mini Pump Protection Filter Assembly
  • Battery Charger
  • Protective Boot
  • Soft Carrying Case
  • Exhaust Spigot
  • TPI A740 IR Printer
  • Smoke pump
  • Oil filter
Specification

Carbon Monoxide (CO) Measurement

  • Range: 0 to 10,000 ppm
  • Resolution: 1 ppm
  • Accuracy: <20 ppm : ± 3ppm; >100 ppm : ± 5%

Oxygen (O2) Measurement

  • Range: 0 to 25%
  • Resolution: 0.1%
  • Accuracy: ±0.3%

Carbon Dioxide (CO2)

  • Range: 0 to 25%
  • Resolution: 0.1%
  • Accuracy: Calculated

Ratio (CO/CO2)

  • Range: 0 to 0.999
  • Resolution: 0.001
  • Accuracy: Calculated

Gross/Net Efficiency

  • Range: 0 to 100%
  • Resolution: 0.1%

Temperature Measurement

  • Range: -40° to 800° C (-40° to 1472° F)
  • Resolution: 1°C or F
  • Accuracy (K-type): ±0.3%, ±1°C or ±2°F

Draft/Pressure Measurement

  • Selectable Ranges: mBar,kPa, and inH2O
  • Range: -150 mBar to +150 mBar
  • Resolution: 0.01mBar
  • Accuracy: ±0/5% fsd

Instrument Specifications

  • Operating Temperature Range: -10° to 50°C
  • Battery: Rechargeable Ni-MH, >6 Hour Life
  • Charger Input Voltage: 115V or 230V; 50/60 Hz AC
  • Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood (Dry), Bagasse, Wood Pellet
  • Display Backlit: LCD
  • Data Storage: 100 sets
  • Time & Date: 24 Hour Clock
  • Dimensions: 200 x 90 x 60mm
  • Weight: 500g
  • Conforms To: EN50379 / BS7967
