FLIR DM92 True RMS Industrial Multimeter

FLIR
SKU: FLIRDM92
  • Versatile and extremely accurate with impressive measurement ranges
  • Bright LED lights and backlit LCD screen for working in poor light
  • Advanced electrical features including LoZ, True RMS and VFD
More Info
Discontinued

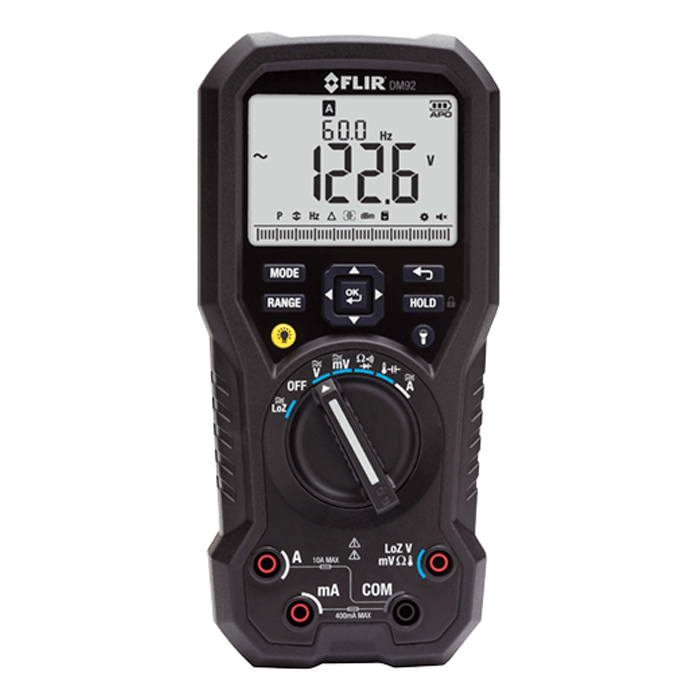

FLIR DM92 True RMS Industrial Multimeter

Please note that this product has now been discontinued, replaced by the FLIR DM93 True RMS VFD Industrial Multimeter.

With the capacity to measure 11 different variables, large measurement ranges, and several advanced electrical features, the FLIR DM92 True RMS Industrial Multimeter is a highly versatile and accurate industrial multimeter. The maximum AC/DC voltage is 1000V and AC/DC current can be measured up to 10A whilst the DM92 also takes readings for frequency, resistance, continuity, capacitance, temperature and diode test.

Advanced features include True RMS for more accurate readings in both AC/DC voltage and AC/DC current as well as variable frequency drive filtering (VFD) which can measure non-traditional sine waves and noisy signals in VFD motors and drive controllers. In addition, LoZ mode helps avoid ghost voltage readings for long-run applications.

Several practical features make the DM92 easy to use. Its double-moulded, rubberised grips allow it to lie happily in one hand whilst the in-built stand means it can sit upright when the user is using both hands. Two premium silicone test leads come included with the DM92 which also features bright LED work lights and a sharp, backlit LCD display for working in poor light. The DM92 is therefore highly user-friendly. The internal memory allows for 99 recordings so the device is suitable for use around a large site without having to delete readings.

As with all FLIR products, the build-quality is excellent (the DM92 is designed to withstand a 3m fall) whilst the user also benefits from a limited lifetime warranty. Finally, the device has excellent safety ratings of Cat IV up to 600V and Cat III up to 1000V.

Key features

  • Measures AC/DC voltage (1000V), AC/DC current (10A), resistance (10MΩ), continuity threshold (30Ω), frequency (100kHz), capacitance (40mF), and diode test (2V)
  • Temperature measurement from -200℃ to +1200℃
  • VFD, True RMS, LoZ
  • Internal memory for 99 records
  • Bright, LED work lights
  • 6 x AAA batteries
  • Cat IV up to 600V, Cat III up to 1000V
  • Drop tested to 3m
  • Limited lifetime warranty

What's In The Box?

  • FLIR DM92 True RMS Digital Multimeter
  • CAT IV Silicone Test Leads
  • 6 x AAA Batteries
  • User Manual/CD
Specification
  • DC Voltage: 1000V; basic accuracy ±0.05%
  • AC Voltage: 1000V; basic accuracy ±0.5%
  • VFD AC Voltage: 1000V; basic accuracy ±0.5%
  • DC Current: 10A; basic accuracy ±0.2%
  • AC Current: 10A; basic accuracy ±1%
  • Resistance: 40MΩ; basic accuracy 0.2%
  • Continuity Threshold: 30Ω; basic accuracy 0.2%
  • Frequency: 100kHz; basic accuracy ±5 digits
  • Capacitance: 40mF; basic accuracy 0.9%
  • Temperature: -200℃ to +1200℃; basic accuracy ±1%
  • Diode Test: 2V; basic accuracy 1.5%
  • Display Counts: 40,000
  • IP Rating, Drop Test: IP54, 3m
  • Category Rating: Cat IV to 600V, Cat III to 1000V
  • Battery Type: 6 x AAA
  • Memory: 99 internal storage locations
  • Warranty: Limited lifetime*

*when registered within 60 days of purchase
