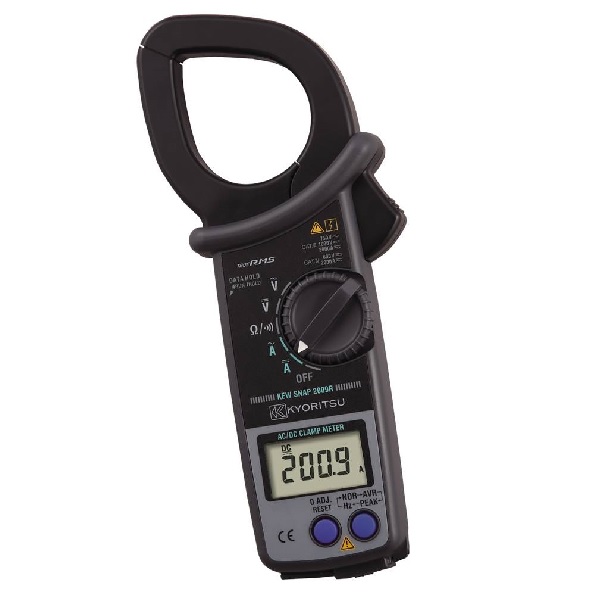

Kewtech KEW2009R TRMS 2000A AC/DC Clamp Meter
The Kewtech KEW2009R is a auto-ranging, true RMS CAT IV rated (600V) clamp meter capable of safely measuring both AC and DC currents of up to 2000A. The clamp meter is supplied with a two-wire test lead set, allowing for voltage measurement of up to 750VAC and 1000VDC, as well as providing the capability of measuring resistance and electrical supply frequency.
Featuring jaws that will open and close around conductors up to 55mm in diameter, the KEW2009R also has the ability to capture voltage and current variation that occur in as little as 10 milliseconds, as well as being able to record a peak and average values makes the KEW2009R ideal for low and high power circuit measurement alike.
Kewtech KEW2009R Clamp Meter key features:
- Measures 2000A AC/DC Current
- Accurate TRMS measurement
- Category IV electrical safety rating (600V)
AC A: 400.0/2000A: ±1.3%rdg ±3dgt (0-400A,150-1700A)(45-66Hz) ±2.0%rdg ±5dgt (0-400A,150-1700A)(20Hz-1kHz) ±2.3%rdg ±3dgt (1701-2000A)(45-66Hz)
DC A: 400.0/2000A ±1.3%rdg ±2dgt
AC V: 40.00/400.0/750V ±1.0%rdg ±3dgt (45-66Hz) ±1.5%rdg ±5dgt (20Hz-1kHz)
DC V: 40.00/400.0/1000V ±1.0%rdg ±2dgt
Ω: 400.0/4000Ω ±1.5%rdg±2dgt (Electronic protection (no fuse) up to 600V)
Continuity buzzer: Buzzer sounds below 20 Ω
Hz: 10.0-4000Hz ±1.5%rdg±5dgt (Input sensitivity Current:more than 40A Voltage:more than 10V)
Output Recorder: DC400mV against AC/DC400.0A, DC200mV against AC/DC2000A
Withstand voltage: 6880V AC for 5 seconds
Max. conductor size: diameter 55mm max.
Applicable standards: IEC 61010-1 CAT.IV 600V CAT III 1000, IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1 Power source: R6(1.5V)x2
Dimensions/Weight: 250(L) 105(W) 49(D)mm / Approx. 540g(including batteries)
2-wire test lead set
2 x AA batteries
