T&R KV50-200 mk2 High Voltage AC Tester System

Be the first to review this product

High power, high voltage AC test kit for electrical insulation testing. 50kV output voltage with 10kVA output capability. Comes complete with a Calibration Certificate.
Price on request

"50kV output voltage and 200mA output current"

  • Description

    T&R KV50-200 mk2 High Voltage AC Test System

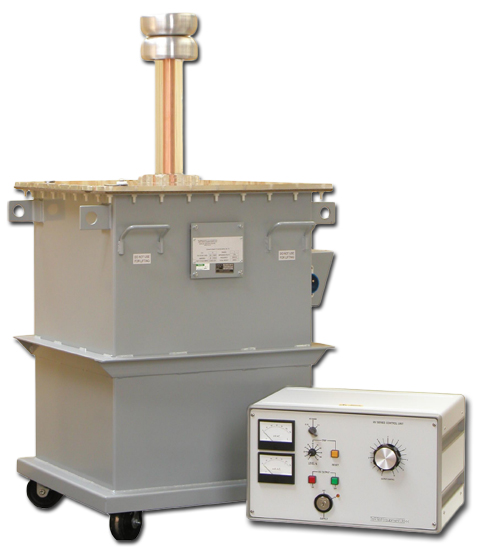

    The T&R KV50-200 High Voltage AC Tester is suitable for use on capacitive, resistive or inductive loads. It is a HVAC tester capable of producing voltage of up to 50kV with an output charge of 10kVA. The equipment consists of a control unit and a separate oil filled high voltage transformer, linked by 5 metre supply and control cables. The KV50-200 is fitted with a comprehensive range of facilities for control, metering and protection with the inclusion of secondary tap metering to ensure accurate voltage metering.

    The output voltage and current are displayed on large, linear analogue instruments and a variable electronic trip is provided allowing the trip current to be set to 10-110% of rated output. The high voltage transformer is housed in an oil-filled steel tank fitted with swivel castors for mobility. The unit uses a low-discharge oil-filled bushing for the HV output with the earthy end of the HV winding connected to earth via the current metering circuit and a removable link. This removable link allows equipment to be connected into the earthy end of the HV winding for Tan-d measurements. As with the KV50-100 there is a zero volt interlock to control the continuously variable output and an external interlock circuit for the fitting of external emergency off buttons and test cage door interlocks. The KV50-200 is protected by variable electronic trips monitoring the output current and a fixed over-current trip on the primary of the transformer.

    T and R KV50-200 mk2 Features:

    • 0-50kV output voltage
    • 10kVA output capability
    • Key operated supply switch to prevent unauthorised operation
    • Dual overload protection
    • Variable electronic trip—10-110% of rated output
    • Voltage and current metering
    • External 24Vac interlock circuit
    • Zero-volt interlock
    • Visual indication of test piece failure
  • Specification

    Continuous Output

    • Voltage: 0-50kV AC
    • Current: 100mA
    • Power: 5kVA

    Intermittent (5mins on/15mins off)

    • Voltage: 0-50kV AC
    • Current: 200mA
    • Power: 10kVA

    No-load metering

    • x0.5 range: 0-30kV
    • x1 range: 0-60kV

    Load current metering

    • mA Meter: 0-240mA
    • Supply requirements; 230V, 50/60Hz, 1ph, 11kVA max
    • Compliance: BS EN61010
    • Storage temperature: -20°C to 60°C
    • Operating temperature: 0°C to 45°C
    • KV50-100 control unit: 370 x 480 x 290mm, 37kg
    • KV50-100 transformer: 570 x 500 x 1020mm, 220kg
  • Supplied Accessories

    • T&R KV50-200 mk2 Control Unit
    • T&R KV50-200 mk2 Transformer
    • 1 x 5m power lead
    • 2 x 5m metering leads
    • Spare fuse set
    • Operating manual
