Dilog DL107 1000V Non-Contact Voltage Detector

SKU
DILOGDL107
  • Includes both "High Voltage" and "Low Voltage" detection modes
  • Visual and audible indication given through bright LED & alarm
  • Compact with built-in flashlight and safety rated CAT IV 1000V
More Info
inc VAT £17.99 ex VAT £14.99
In Stock - Available Next Day


Product Details

Dilog DL107 1000V Non-Contact Voltage Detector

The Dilog DL107 1000V Non-Contact Voltage Detector with its various advanced features is the ideal tool for a wide array of applications throughout the plumbing, maintenance and electrical sectors. This non-contact device can detect AC voltages between 24 to 1000V, provide accurate detection of cable breaks and phase detection in sockets. A clear, omni-directional LED with audible alarm provides the user with both optical and acoustic indication of a present AC voltage.

Boasting two selectable levels of detection, the Dilog DL107 incorporates both a high and low voltage detection range. The "High Voltage Mode" is suitable for voltages between 90 to 1000V AC, ideal for for detecting three phase systems and domestic electrical supply. The "Low Voltage Mode" however, is for detecting weaker magnetic fields and voltages down to 24V AC. This makes the portable DL107 incredibly useful for testing low-voltage motors, audio systems, arc welding equipment and tracing power on cables with thick insulation or from a greater distance.

Utilise the bright LED flash light incorporated within the Dilog DL107 Non-Contact Voltage Detector to complete tasks in difficult to see areas. Battery powered this lightweight instrument features an auto power off function with electronic switch to avoid irritating buzzing while simultaneously extending battery life. The compact DL107 is rated CAT IV 1000V to ensure the highest level of safety for the operator.

Key Features

  • Non-contact voltage detector
  • Visual LED and audible alarm indication given
  • Two detection ranges
  • High voltage mode for detecting 90 to 1000V AC
  • Low voltage mode for detecting 24 to 1000V AC
  • Quickly detects cable breaks
  • Performs phase detection in sockets
  • Built-in bright LED flashlight
  • Auto-power off after approx. 5mins
  • Low battery indicator
  • CATIV 1000V safety rated

Dilog part number: DL107

  DL107 DL108
Detection Voltage Range Low: 24 - 1000V AC
High: 90 – 1000V AC
Frequency 50/60 Hz
Operational Mode Automatic Indication
Vibration Mode No Yes
LED Flashlight Yes
Audible & Visual Indication Yes
Auto Power Off Approx. 5 Minutes
Low Battery Indication < 2.4V
IP Rating N/A IP67
Safety Rating CAT IV 1000V
Drop Tested 1 Meter 2 Meters
Power Supply 2 x 1.5 V AAA batteries
Dimensions 150 x 18 x 23 (mm) 161 x 22 x 25 (mm)
Weight 50 g 74 g

Dilog DL107 1000V Non-Contact Voltage Detector

The Dilog DL107 1000V Non-Contact Voltage Detector with its various advanced features is the ideal tool for a wide array of applications throughout the plumbing, maintenance and electrical sectors. This non-contact device can detect AC voltages between 24 to 1000V, provide accurate detection of cable breaks and phase detection in sockets. A clear, omni-directional LED with audible alarm provides the user with both optical and acoustic indication of a present AC voltage.

Boasting two selectable levels of detection, the Dilog DL107 incorporates both a high and low voltage detection range. The "High Voltage Mode" is suitable for voltages between 90 to 1000V AC, ideal for for detecting three phase systems and domestic electrical supply. The "Low Voltage Mode" however, is for detecting weaker magnetic fields and voltages down to 24V AC. This makes the portable DL107 incredibly useful for testing low-voltage motors, audio systems, arc welding equipment and tracing power on cables with thick insulation or from a greater distance.

Utilise the bright LED flash light incorporated within the Dilog DL107 Non-Contact Voltage Detector to complete tasks in difficult to see areas. Battery powered this lightweight instrument features an auto power off function with electronic switch to avoid irritating buzzing while simultaneously extending battery life. The compact DL107 is rated CAT IV 1000V to ensure the highest level of safety for the operator.

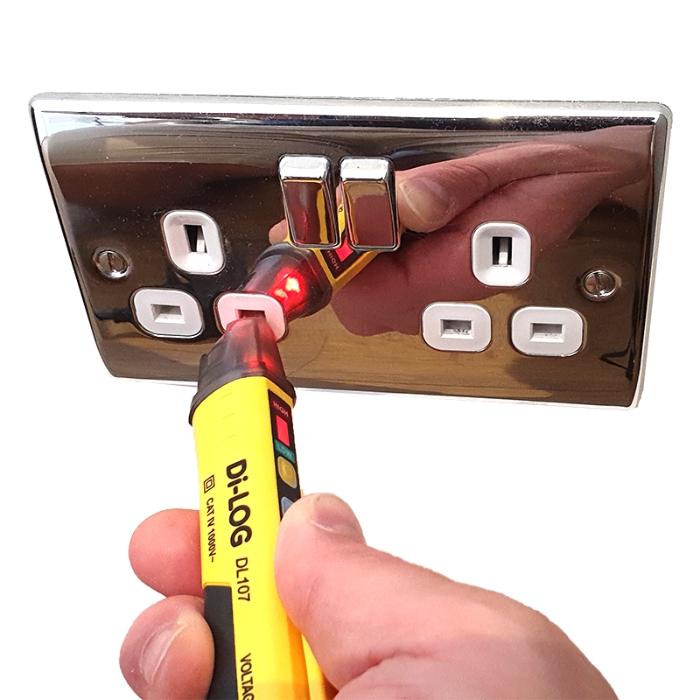

Dilog DL107 In Use

Key Features

  • Non-contact voltage detector
  • Visual LED and audible alarm indication given
  • Two detection ranges
  • High voltage mode for detecting 90 to 1000V AC
  • Low voltage mode for detecting 24 to 1000V AC
  • Quickly detects cable breaks
  • Performs phase detection in sockets
  • Built-in bright LED flashlight
  • Auto-power off after approx. 5mins
  • Low battery indicator
  • CATIV 1000V safety rated

Dilog part number: DL107

  DL107 DL108
Detection Voltage Range Low: 24 - 1000V AC
High: 90 – 1000V AC
Frequency 50/60 Hz
Operational Mode Automatic Indication
Vibration Mode No Yes
LED Flashlight Yes
Audible & Visual Indication Yes
Auto Power Off Approx. 5 Minutes
Low Battery Indication < 2.4V
IP Rating N/A IP67
Safety Rating CAT IV 1000V
Drop Tested 1 Meter 2 Meters
Power Supply 2 x 1.5 V AAA batteries
Dimensions 150 x 18 x 23 (mm) 161 x 22 x 25 (mm)
Weight 50 g 74 g
More Information
Specification
  • Detection Voltage Range:
    • Low: 24 - 1000V AC
    • High: 90 - 1000V AC
  • Frequency: 50/60 Hz
  • Operational Mode: Automatic Indication
  • LED Flashlight: Yes
  • Audible & Visual Indication: Yes
  • Auto Power Off: Approx. 5 Minutes
  • Safety Rating: CAT IV 1000V
  • Drop Tested: 1 Meter
  • Operating temperature: 0° to 40°C
  • Power supply: 2 x 1.5 V AAA batteries
  • Dimensions: 150 x 18 x 23 (mm)
  • Weight: 50 g
