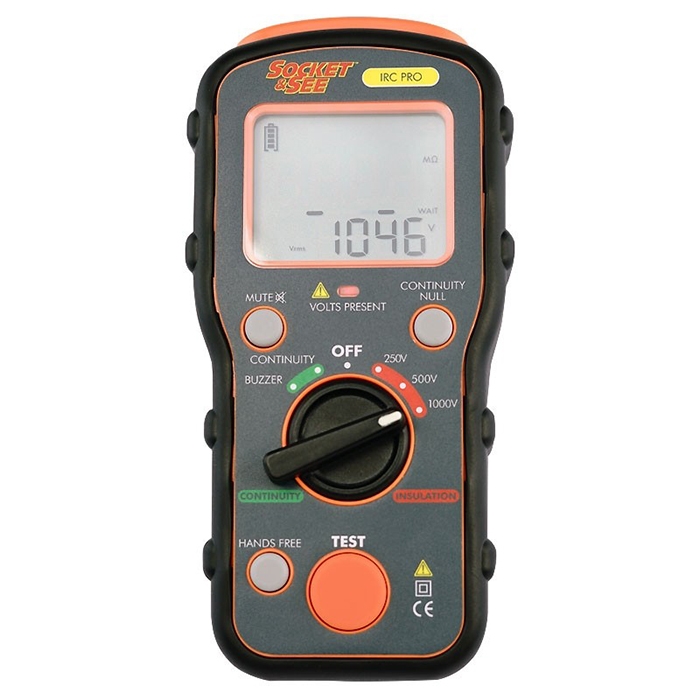

Socket & See IRC PRO Insulation and Continuity Tester

SKU: SOCKIRCPRO
  • Has the ability to run three insulation test ranges: 250V, 500V and 1000V
  • The IRC PRO Tester has Auto Ranging Continuity up to 19.99 kΩ
  • Handsfree capabilities which makes this a simple yet effective tool for professionals
More Info
In Stock - Available Next Day

Socket & See IRC PRO Insulation and Continuity Tester

The Socket & See IRC PRO Insulation and Continuity Tester is a highly efficient instrument, with the ability to perform 500 insulation tests at 1000V on a single set of 4 x AA batteries. The IRC PRO features an auto-ranging continuity function up to 19.99 kΩ, plus a continuity null ability (up to 5Ω) is included for highly accurate results.

The number of tests completed in one battery lifespan of the IRC PRO can be increased even further when testing is performed at 500V or 250V. Select the necessary test sequence and voltage using the single rotary dial and large easy-to-use buttons. Set the device to Hands Free and the testing will continue until the option is deselected or the unit is turned off. An incorporated buzzer function is useful for identifying individual cables quickly and easily.

The protective rubber casing of the IRC PRO, combined with a large backlit LCD display and auto-power off feature creates an extremely sturdy and practical device. The IRC PRO is fully protected against accidental mains connection, with an audible and LED warning system for dangerous voltages. The tester is CAT III 500V / CAT IV 400V rated.

Socket & See part number: IRCPRO


Key Features

  • Insulation tests at three separate ranges, 250V, 500V and 1000
  • Auto Ranging Continuity tests up to 19.99 kΩ
  • Continuity null up to 5Ω
  • Hands Free functionality
  • 500 tests with one set of 4 x AA batteries
  • Tactile dial and button interface
  • Auto Off feature
  • Buzzer function for identifying "belling out" cables
  • Audible and LED warnings for hazardous voltages
  • Backlit LCD display
  • Moulded rubber casing
  • CAT III 500V / CAT IV 400V

What's In The Box?

  • Socket & See IRC PRO Insulation and Continuity Tester
  • Mains Lead inc 3 x 4mm connectors
  • Instruction Manual
  • Magnetic Hanging Strap
  • Carry Case
  • 4 x AA Batteries
Specification

Insulation Test Range Accuracy

Ranges (Auto Range)Range inc. tolerance at 20˚C
250V 0.01 to 9.99 MΩ (±3% + 1 digits)
10.0 to 99.9 MΩ (±3% + 1 digits)
100 to 199 MΩ (±6% + 1 digits)
500V 0.01 to 9.99 MΩ (±3% + 1 digits)
10.0 to 99.9 MΩ (±3% + 1 digits)
100 to 199 MΩ (±3% + 1 digits)
200 to 499 MΩ (±6% + 1 digits)
1000V 0.01 to 9.99 MΩ (±3% + 1 digits)
10.0 to 99.9 MΩ (±3% + 1 digits)
100 to 199 MΩ (±3% + 1 digits)
400 to 999 MΩ (±6% + 1 digits)



Continuity Test Range Accuracy

RangeAccuracy
0.00 to 9.99 Ω ±(3% + 2 digits)
10.0 to 99.99 Ω ±(3% + 2 digits)
100 to 19.99 kΩ ±(3% + 2 digits)



Open Circuit Voltage >4Vm <10V
Zero Offset Adjust (test lead null) >5Ω
Typical Test Time >2 seconds
Hazard Warning LED >25V



Insulation Output Voltage

RangeLoadOutput CurrentTolerance
250V 250 kΩ 1 mA -10% 20%
500V 500 kΩ 1 mA -10% 20%
1000V 1 MΩ 1 mA -10% 20%
Short circuit current (into 2k Ω) < 2 mA
Typical Test Time (10MΩ) < 2 seconds



General Specifications

Power Supply 4 x AA LR6 Batteries
Battery Life 50 hours
Overvoltage Category CAT III 500V
CAT IV 300V
Operating Temperature 0 - 40˚C
Storage Temperature -10˚C to 60˚C
Operating Humidity 80% @ 31˚C to 50% @ 40˚C
Safety Compliance BSEN 61010-2-030:2010
EMC Standard BSEN 61326-2-2:2013
Performance Standard BSEN 61557-1:2007
BSEN 61557-2:2007
BSEN 61557-4:2007
Probes GS38 Compliant
Dimensions 180mm x 85mm x 50mm
Weight Approximately 450g
