Megger (Programma) MOM690 Micro-Ohmmeter

Be the first to review this product

  • 0-800A DC and 0-660A AC current output
  • Automatic range
  • Demagnetise CT's after testing
(Ex. VAT) £6,285.00 (Inc. VAT) £7,542.00

* Required Fields

Please select a free gift below.

  • Description

    Megger (Programma) MOM690 Micro-Ohmmeter

    The Megger (Programma) MOM690 micro-ohmmeter is a high current, micro-processor controlled ductor capable of providing extremely low resistance measurements, outputting up to 800 DC or 660A AC of current.

    Subsequent to testing, certain standards require the demagnetising of the current transformer (CT) within dead tank and GIS circuit breakers. As such, the Megger MOM690 micro-ohmmeter offers an AC current output, which will complete this task quickly and easily. The AC current output can also be used for other general purpose current sourcing in different test applications.

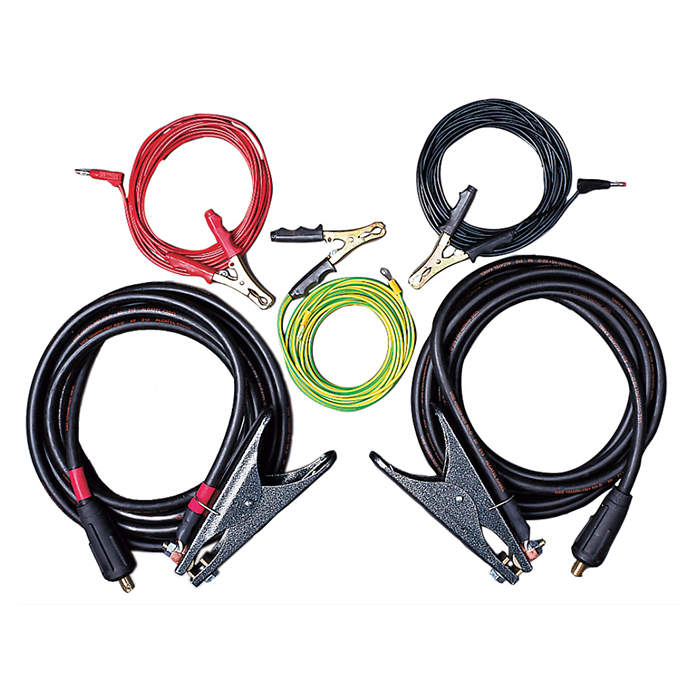

    The Megger (Programma) MOM690 can be purchased as a 115V or 230V model and with or without 5m test leads and a transport case (please select the correct model from the drop down list above). A 15m lead set is also available to purchase above, please select this option if you require longer test leads.

    The Megger MOM690 also features the ability to store and download test results with an optional software utility called MOMWin, This allows the export of test results for electronic storage and reporting purposes; please select this option above if applicable.

    Why test resistance at such a low value?

    If the contact resistance on a high current electrical joint is too high, temperature rises and power loss are inevitable leading to a host of problems such as overheating joints and electrical equipment failure. The following table demonstrates the importance of low resistance joins within high current applications:

    CurrentContact ResistancePower Loss
    10,000A (10kA) 1 milli-Ohm 100,000 Watts (100kW)
    10,000A (10kA) 0.1 milli-Ohm 10,000 Watts (10kW)
    1,000A (1kA) 1 milli-Ohm 1,000 Watts (1kW)
    1,000A (1kA) 0.1 milli-Ohm 100 Watts



    Key Features

    • 0-800A DC and 0-660 AC current output
    • Easy to use
    • Automatic range

    We Have a Choice Of Four MOM690 Kits:

     115V / 230V OperationIncludes GA-05055
    Test Lead Set
    Includes GA-00200
    Ground Cable
    Includes GD-00182
    Transport Case
    230V Model
    BB-42300
    230V
    230V with Accessories
    BD-42390
    230V  ✔
    115V Model
    BB-41100
    115V
    115V with Accessories
    BB-41190
    115V  ✔  ✔  ✔
  • Specification

    Please click here for full product specifications
