Hikmicro M20 Thermal Imaging Camera
SKU: HIKMM20
Never Beaten On Price
We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.
Call 0113 248 9966 or contact us online
Key Features
- Thermal image camera with a IR resolution of 256 × 192 (49,152 pixels)
- Temperature range of -20 °C to 550 °C (-4 °F to 1022 °F)
- 25Hz Image Frequency
Related Categories
£1,399.00
£1,678.80
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
Key Features
- Thermal image camera with a IR resolution of 256 × 192 (49,152 pixels)
- Temperature range of -20 °C to 550 °C (-4 °F to 1022 °F)
- 25Hz Image Frequency
Related Categories

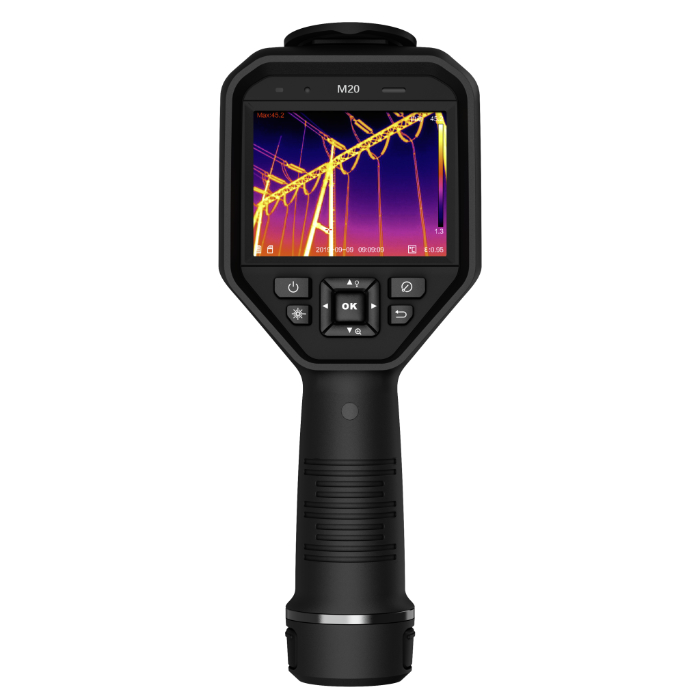

Hikmicro M20 Thermal Imaging Camera
The Hikmicro M20 Thermal Imaging Camera is a handheld thermal camera designed for use in professional inspection for identifying potential fault and temperature measurement The 256x192 (49,152 pixel) camera has a measurement range of -20ºC to 550ºC with an accuracy of ± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F). The M20 has a thermal sensitivity of < 40 mK (@ 25°C, F# = 1.0) and a field of view of 25°× 18.8°
The M20 boasts a 3.5 inch LCD touchscreen with a 640 x 480 resolution, together with the highly sensitive thermal Vox detector, provides clear images and videos even when panning across scenes or viewing moving targets can be produced. The manual focus and 25Hz image frequency, allows for objects to be be viewed as close as 0.5m and the integrated laser allows for objects further away to be measured accurately. The M20 allows the operator to narrow the span with one tap of the touchscreen, allowing for an improved image contrast with potential problems highlighted.
The Hikmicro M20 is powered by a rechargeable Li-ion battery with up to 6 hours of use when fully charged. The two supplied batteries are interchangeable allowing for a full days use in the field. Each image or video allows for text (up to 200 characters) or audio annotations to be added helping improve efficiency and productivity. The Hikmicro is a rugged and durable thermal imager with an IP54 protection rating offering protection from water and dust ingress. Drop tested from 2m, the M20 is suitable for industrial use in challenging environments. Th M20 has a removable 16GB MicroSD Card providing storage for up to 60,000 images or 15 hours of MP4 videos. Each image or video allows for text (up to 200 characters) or audio annotations to be added helping improve efficiency and productivity.
The M20 allows the operator to choose between five image modes: Thermal/Visual/Fusion/PIP/Blending for their preferred mode and the option to choose from seven Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red.
Hikmicro Viewer App and Software Analyser
The Hickmro M20 is compatible with the Hikmicro Viewer App and Software Analyser. Using the App allows the operator to use their smart device as a second screen, allowing for remote measurements to be taken. Using the App images and videos can be analysed and shared. The Analyser software can be used to generate reports in real time for colleagues or customers.
Hikmicro M Series Comparison table
| Hikmicro M10 | Hikmicro M11 | Hikmicro M20 | Hikmicro M30 | |
|---|---|---|---|---|
| IR Resolution | 160 × 120 (19,200 pixels) | 192 x 144 (27,648 pixels) | 256 x 192 (49,152 pixels) | 384 x 288 (110,592 pixels) |
| Temperature Range -20°C to 550°C (-4°F to 1022°F): | ✔ | ✔ | ✔ | ✔ |
| NETD: | < 40 mK (@ 25 °C, F#=1.0) | < 40 mK (@ 25 °C, F#=1.0) | < 40 mK (@ 25 °C, F#=1.0) | < 35 mK (@ 25 °C, F#=1.0) |
| Image Frequency 25 Hz: | ✔ | ✔ | ✔ | ✔ |
| Detector Pitch: | 17μm | 12μm | 12μm | 17μm |
| Spectral Range 7.5 to 14μm | ✔ | ✔ | ✔ | ✔ |
| Focal length: | 6.2mm | 6.9mm | 6.9mm | 9.7mm |
| F-Number: | F1.1 | F1.0 | F1.0 | F1.0 |
| Field of View (FOV): | 25° × 18.7° | 18.8° × 14.1° | 25° × 18.8° | 37.5° × 28.5° |
| Spatial Resolution (IFOV): | 2.74 mrad | 1.74 mrad | 1.74 mrad | 1.75 mrad |
| Focus Mode: | Manual Focus | Manual Focus | Manual Focus | Manual Focus |
| Minimumn focus distance: | 0.2m (0.65ft) | 0.1m (0.33ft) | 0.1m (0.33ft) | 0.2m (0.65ft) |
| Visual Camera: 3264 x 2448 (8 MP) | ✔ | ✔ | ✔ | ✔ |
| Digital Zoom | 1X, 2X, 4X, 8X | 1.0x to 8.0x continuous | 1.0x to 8.0x continuous | 1X, 2X, 4X, 8X |
| Image Modes: | Thermal/Visual/Fusion/PIP | Thermal/Visual/Fusion/PIP/Blending | Thermal/Visual/Fusion/PIP/Blending | Thermal/Visual/Fusion/PIP |
| Colour Palette: | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain |
| Focus Mode Palette: | Above/Below/Interval | Above/Below/Interval | ||
| Colour Alarm: | Above/Below/Interval/Insulation | Above/Below/Interval/Insulation | ||
| Storage Media | Removable 16 GB flash Micro SD Card | Removable 16 GB flash Micro SD Card | Removable 16 GB flash Micro SD Card | Removable 64 GB flash Micro SD Card |
| Image Storage Capacity | Approx 60,000 images | Approx 60,000 images | Approx 60,000 images | Approx 100,000 images |
| Video Storage Capacity | Approx 10 hours | Approx 15 hours | Approx 15 hours | Approx 54 hours |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) | 802.11 b/g/n (2.4 GHz and 5 GHz) | 802.11 b/g/n (2.4 GHz and 5 GHz) | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Battery life: | Approx 5 hours | Approx 6 hours | Approx 6 hours | Approx 4 hours |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) | -20°C to 70°C (-4°F to 158°F | -20°C to 70°C (-4°F to 158°F | -20°C to 60°C (-4°F to 140°F) |
| Weight: | Approx. 653g (1.44 lb) | Approx. 660g (1.46 lb) | Approx. 660g (1.46 lb) | Approx. 660g (1.46 lb) |
Key Features
- IR Resolution: 256 x 192 (49,152 pixels)
- Multiple pallettes supported
- High quality optical module with 8MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
- Temperature measurement range: -20°C to 550°C
- Temperature measurement accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Image Frequency: 25Hz
- 640 × 480 resolution 3.5'' LCD touch display
- Long-distance laser light supplement for thermography targets
- LED light supplement makes the device a torch in required scenarios
- Supports 1×, 2×, 4× and 8× digital continuous zoom
- Support remote album access, download and quick report with APP.
- Image modes: Thermal/Visual/Fusion/PIP/Blending
- Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
- Storage Media: Removable 16GB MicroSD Card
- Class II laser to view the centre point of chosen target.
What's In The Box?
- Hikmicro M20 Thermal Imaging Camera
- Quick start guide
- USB 2.0A ntoUSB bType-C Cable
- Power supply for battery charger
- Battery x2
- Two bay battery charger
- Hard carry case
- Wrist strap
- Calibration Certificate
- International Use plugs for power supply (US/EU/UK/AU)
| No |
|
Infrared Image
Image Display
Measurement and Analysis
Data, Storage and Communication
General
|
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
Hikmicro M20 Datasheet | 986 KB | Download |
