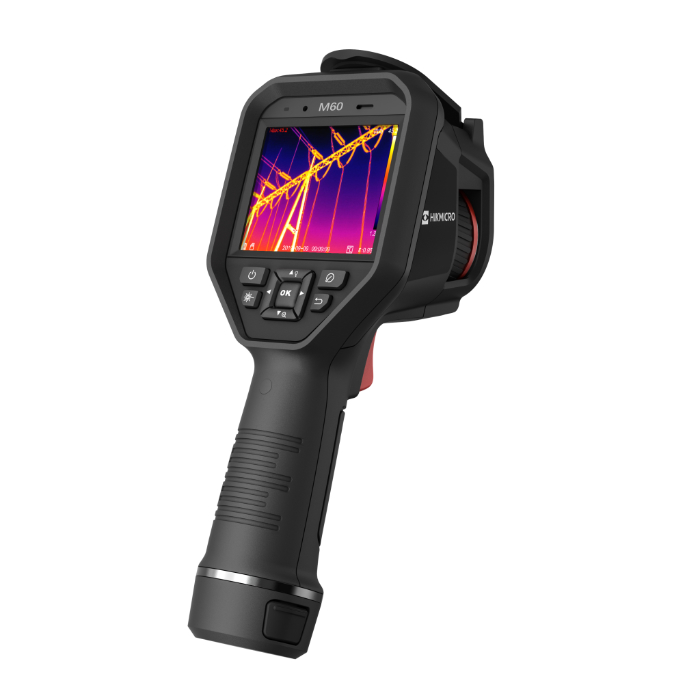

Hikmicro M60 Thermal Imaging Camera

SKU: HIKMM60
  • Thermal imager with high thermal sensitivity with a 640 x 480 (307,200 pixels)
  • Measure temperature from -20ºC to 650ºC
  • SuperIR technology to provide 1280 x 960 (1,228,800 pixels)
More Info
Typically ships in 3-5 working days
Choose Your Free Gift

Buy a HIKMICRO M-Series Thermal Camera & choose an exclusive Free Gift!
LIMITED TIME ONLY | Offer ends 30th June 2026


Hikmicro M60 Thermal Imaging Camera

The Hikmicro M60 Thermal Imaging Camera is a thermal image camera with a manual focus that boasts a high thermal sensitivity with a 640 x 480 (307,200 pixels) offering a wide temperature measurement range of -20ºC to 650ºC with a high degree of accuracy (Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F). The IKR resolution can be increased to 1280. X960 (1,228,800 pixels) when Hikmicro's SuperIR technology. Suitable for use across various industries the M60 Thermal Camera is the perfect tool for use in building, HVAC, auto industries and many more. With a 640 x 480 resolution 3.5" LCD touchscreen display, the M60 offers clear and precise thermal images and temperature measurements and offers five image modes for users to select from (Thermal/Visual/Fusion/PIP/Blending).

The M60 includes an incorporated 8MP digital camera with a digital zoom of 1.0x to 8.0x continuous zoom. Users are able to choose between eight colour palettes (White Hot,, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red). The M60 has a NETD <35mk(@ 25ºC, F#=1.0) with an image frequency of 25Hz, The focal length of the M60 is 15mm and a field of view of 41.9º x 33.3º and a minimum focus 0.3m (0.98ft)

Users are able to view the Center Spot, Hot Spot and Cold Spot onscreen with user definable 10 spots, 1 Line, 5 rectangles and 5 circles. Level and Span mode of the M60 provides 3 level/span modes (1 Tap touch screen and auto and manual) to help instantly improve image contrast and highlight any potential issues

The incorporated Laser allows users to further increase the accuracy of data and images collected with the camera by showing the centre point of objects and the LED light can act as a torch for use in poorly lit places. A removable 64GB Micro SD cards provides storage for approximately 100,000 images or 300 hours of MP$ and radiometric video. Voice (max 60 seconds) and text (max 200 characters) annotations can be added to images and video to help with analysis.

Hikmicro Viewer App

The Hikmicro M60 is compatible with Hikmicros Viewer App, which via Wi-Fi, allows for the transfer of images and videos from the camera to a mobile device. Using the app, operators can analyse, share images and generate reports in real time even on-site.

Hikmicro Analyser

Hikmicro Analyser is a free licensed PC software that has been designed to help users to manage and analyse their thermal images and videos and quickly generate professional reports.



The M60 is IP54 rated to offer protection of the camera from water and dust and has been drop tested to 2m (6,6ft). The M60 comes with two rechargeable batteries each with. Four hour battery life that will allow users to complete a full day ion the field without having to recharge the battery.

Key Features

  • Highly sensitive thermal camera with an IR Resolution: 640 x 480 (307,200 pixels)
  • SuperIR to boost resolution to 1280 x 960 (1,228,800 pixels)
  • Wide temperature measurement range of -20ºC to 650ºC with a high degree of accuracy
  • Incorporated 8MP digital camera with a digital zoom of 1.0x to 8.0x continuous zoom
  • Five image modes for users to select from (Thermal/Visual/Fusion/PIP/Blending)
  • Supports eight colour palettes (White Hot,, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red)
  • Center Spot, Hot Spot and Cold Spot onscreen
  • 640 x 480 resolution 3.5" LCD touchscreen display
  • Removable 64GB Micro SD cards provides storage for approximately 100,000 images or 300 hours of MP$ and radiometric video
  • incorporated Laser allows users to further increase the accuracy of data and images collected with the camera by showing the centre point of objects
  • LED light to act as a torch in poorly lit environments
  • Focal length of the M60 is 15mm and a field of view of 41.9º x 33.3º and a minimum focus 0.3m (0.98ft)
  • Compatible with Hikmicro Viewer App and Analyser software
  • IP54 protection rated and drop from tested to 2m
  • Four hour battery life (Two batteries included)

What's In The Box?

  • Hikmicro M60 Thermal Imaging Camera
  • Calibration Certificate
  • Printed Quick start guide
  • Hard carrying case
  • Charging base with adapters and plugs (US/EU/UK/AU)
  • Interchangeable battery x2
  • Wrist strap
  • 64GB Micro SD card
  • 2-in-1 USB-C to USB-CA cable
Specification

Infrared Image

  • IR Resolution: 640 x 480 (307,200 pixels)
  • NETD: <35mK (@ 25°C, F#=1.0)
  • Image Frequency: 30Hz
  • Detector Pitch: 17μm
  • Spectral Range: 7.5 to 14μm
  • Focal length: 15mm
  • F-number: F1.0
  • Field of View (FOV): 41.9º x 33.3º
  • Spatial Resolution (IFOV): 1.13 mrad
  • Focal mode: manual Focus
  • SuperIR: 1280 x 960 (1,228,800 pixels)
  • Min. Focus Distance: 0.3m (0.98ft)

Image Display

  • Visual Camera: 3264 x 2448 (8MP)
  • Display: 640 x 480 Resolution, 3.5 Inch LCD touch screen
  • Screen brightness: Manual
  • Digital zoom: 1.0x to 8.0 continuous
  • Image modes: Thermal/Visual/Fusion/PIP/Blending
  • Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
  • Focus Mode Palette: Above/Below/Interval
  • Colour alarm: Above/Below/Interval/Insulation

Measurement and Analysis

  • Object Temperature Range: -20°C to 650°C(-4°F to 1202°F)
  • Accuracy: Max (±2°C/3.6°F, ±2%)
  • Measurement Tools: Center Spot, Hot Spot, Cold Spot User-definable: 10 spots, 1 line, 5 rectangles and 5 circles
  • Level and Span Mode: Auto/Manual/1-Tap Touch-screen

Data, Storage and Communication

  • Storage Media: Removable 64GB MicroSD Card
  • Image Storage capacity: Approx 100,000 images
  • Annotations: Voice note maximum 60 seconds/Text note maximum 200 characters
  • Video Storage Capacity: Media: Approx 300 hours
  • Video File Format: MP4 Video and radiometric
  • Radiometric Infrared-Video Streaming (compressed): Over UVC

General

  • Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)
  • Bluetooth: Bluetooth 4.2
  • USB Interface: USB Type-C
  • LED Light: Yes
  • Laser: Yes, Class II, Wavelength: 635 nm; Power: < 1 mW
  • Battery Type: Interchangeable and Rechargeable Li-ion battery
  • Battery Operating Time: Approx 4 hours
  • Battery Charging Time: Approx 4 hours fully charged
  • Power saving mode: Yes
  • Protection level: IP54
  • DropTest Height: 2m (6.56ft)
  • Safety: IEC 61010-1
  • EMC: EN 50130-4, EN 55032, EN IEC 61000-3-2, EN 61000-3-3
  • Vibration: 2g, IEC 60068-2-6
  • Shock: 25g, IEC 60068-2-27
  • Working Temperature range: -10°C to 50°C (-14°F to 122°F)
  • Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)
  • Relative Humidity: <95% non-condensing
  • Weight: Approx 660g (1.46lb)
  • Dimension: 244 x 100 x 104mm (9.6 x 3.9 x 4.1in)
  • Tripod mounting: UNC ¼”-20
