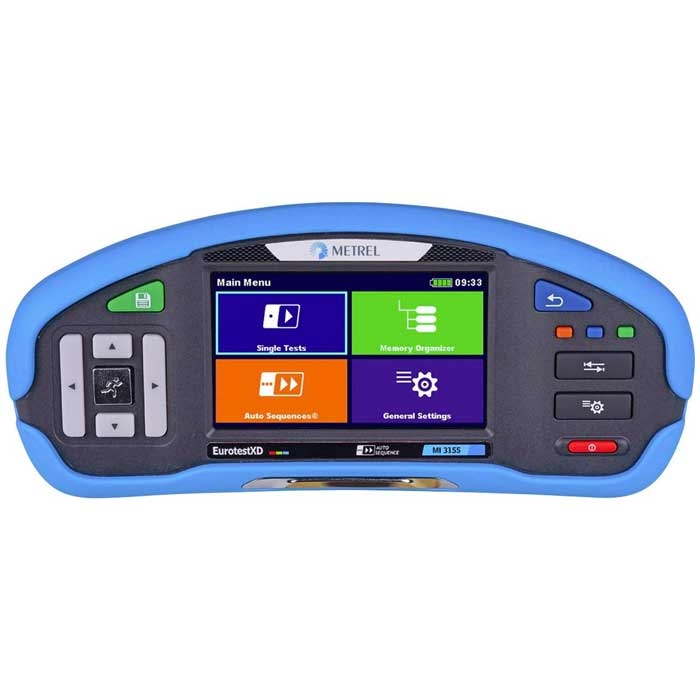

Metrel MI3155 Eurotest XD Multifunction Tester EU Set

Metrel
SKU: METRMI3155XDE
  • Sophisticated Metrel MFT with applications across many different industries
  • Pair of current clamps for earth leakage and earth resistance testing
  • Metrel ES Manager Pro software and Metrel aMESM app included
More Info
Discontinued

Metrel MI3155 Eurotest XD Multifunction Tester EU Set

Please note that this product has now been discontinued, however the Metrel MI3155 Eurotest XD Multifunction Tester is still available.

The Metrel MI3155 Eurotest XD Multifunction Tester is a powerful MFT that is suitable for a number of specialist applications on both single- and three-phase systems. In the EU Set, the MFT comes supplied with a range of additional accessories that allow full use of the tester’s features, such as advanced software and current clamps.

Test functions on the Metrel MI3155 include:

  • Loop impedance
  • Short circuit current assessment
  • Three-wire PE testing
  • Continuity tests
  • Insulation resistance tests
  • Varistor tests
  • Voltage measurement (touch/contact with external P/S probe)
  • Loop and line testing (16Hz to 400Hz range)
  • Phase sequence indication
  • Power and distortion evaluation (up to 12th harmonic)
  • RCD tests (general & selective, AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S)
  • Earth resistance tests (3-wire and 2-clamps method)
  • First fault leakage currents (ISFL)
  • Insulation monitoring device test
  • Machine mode support with time discharge

Regarding its varied applications, the Metrel MI3155 is suitable for use on electrical installations, mobile generators, high- and low-frequency systems, switchboards & machinery, medical systems, EVSE points and more. The loop impedance test is capable of four-wire tests on live transformers, three-wire testing and two-wire testing. The Trip Lock RCD function prevents tripping. Both impedance and RCD testing benefit from automated testing.

Four-wire, 200mA continuity testing is available and the 7mA test is suitable for PE conductors as it does not trip RCDs. The insulation test automatically tests between L-N, N-PE and L-PE with voltages between 50V and 2500V, polarisation index and dielectric absorption ratio.

The Metrel MI3155 provides automatic testing sequences for TT, TN/RCD, TN, and IT systems but it is possible for the user to create their own with the Metrel ES Manager Pro software licence provided in the EU Set. EVSE testing is possible with an optional A1532 Electric Vehicle Charging Station Adaptor.

The intuitive, menu-drive interface of the Metrel MI3155 makes it easy to operate despite the extremely advanced functionality. The large colour touchscreen displays readings and status during testing as well as providing access to the operating system whilst push buttons trigger the most commonly used functions including tests.

Metrel 8800 mAh Battery Pack

In the Metrel MI3155 EU Set, the multifunction tester comes supplied with an 8800 mAh battery pack rather than the standard 4400 mAh pack found in the standard version. This provides a greater operating life for use on larger sites where suitable power supplies might not be immediately available, for example construction sites, on vehicles and outdoor staging sites.

Metrel Current Clamps

The Metrel MI3155 EU Set comes supplied with two current clamps for use during stakeless earth testing. Firstly, the A1018 can measure current up to 1000A making it suitable for low range and leakage current measurement. It has a 52mm clamping diameter and 1.5m cable. Secondly, the A1019 also measures up to 1000A with a 52mm clamping diameter and enables earth resistance measurement in conjunction with the Metrel A1018.

Metrel ES Manager PRO Licence

The Metrel ES Manager PRO software package provided in the Metrel MI3155 EU Set enables some of the advanced features on the Metrel MI3155 MFT and boasts sophisticated analysis, recording and reporting functions for a multitude of applications.

Metrel aMESM Android App

Suitable for Android smartphones, the Metrel aMESM App communicates with the Metrel MI3155 via Bluetooth and allows the user to manage data on their phone and send information back to HQ before even leaving a site. It also allows creation of a site and client database alongside the addition of pictures, video and voice recordings to test data.

Metrel part number: MI 3155 EU

Key Features

  • Huge variety of test features
  • Sophisticated, specialist testing features
  • Compatible with multiple installation types
  • User-friendly touchscreen operation
  • Applicable across dozens of industries
  • Large onboard memory
  • AUTO SEQUENCE customised and pre-set test sequences
  • Bluetooth wireless connectivity
  • Supplied with multiple testing facilities

Metrel MI3155 Eurotest XD Multifunction Tester EU Set

The Metrel MI3155 Eurotest XD Multifunction Tester is a powerful MFT that is suitable for a number of specialist applications on both single- and three-phase systems. In the EU Set, the MFT comes supplied with a range of additional accessories that allow full use of the tester’s features, such as advanced software and current clamps.

Test functions on the Metrel MI3155 include:

  • Loop impedance
  • Short circuit current assessment
  • Three-wire PE testing
  • Continuity tests
  • Insulation resistance tests
  • Varistor tests
  • Voltage measurement (touch/contact with external P/S probe)
  • Loop and line testing (16Hz to 400Hz range)
  • Phase sequence indication
  • Power and distortion evaluation (up to 12th harmonic)
  • RCD tests (general & selective, AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S)
  • Earth resistance tests (3-wire and 2-clamps method)
  • First fault leakage currents (ISFL)
  • Insulation monitoring device test
  • Machine mode support with time discharge

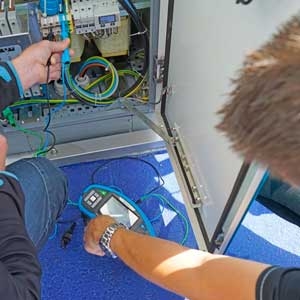

Metrel MI3155 in use

Regarding its varied applications, the Metrel MI3155 is suitable for use on electrical installations, mobile generators, high- and low-frequency systems, switchboards & machinery, medical systems, EVSE points and more. The loop impedance test is capable of four-wire tests on live transformers, three-wire testing and two-wire testing. The Trip Lock RCD function prevents tripping. Both impedance and RCD testing benefit from automated testing.

Four-wire, 200mA continuity testing is available and the 7mA test is suitable for PE conductors as it does not trip RCDs. The insulation test automatically tests between L-N, N-PE and L-PE with voltages between 50V and 2500V, polarisation index and dielectric absorption ratio.

The Metrel MI3155 provides automatic testing sequences for TT, TN/RCD, TN, and IT systems but it is possible for the user to create their own with the Metrel ES Manager Pro software licence provided in the EU Set. EVSE testing is possible with an optional A1532 Electric Vehicle Charging Station Adaptor.

The intuitive, menu-drive interface of the Metrel MI3155 makes it easy to operate despite the extremely advanced functionality. The large colour touchscreen displays readings and status during testing as well as providing access to the operating system whilst push buttons trigger the most commonly used functions including tests.

Metrel MI3155 in use

Metrel 8800 mAh Battery Pack

In the Metrel MI3155 EU Set, the multifunction tester comes supplied with an 8800 mAh battery pack rather than the standard 4400 mAh pack found in the standard version. This provides a greater operating life for use on larger sites where suitable power supplies might not be immediately available, for example construction sites, on vehicles and outdoor staging sites.

Metrel Current Clamps

The Metrel MI3155 EU Set comes supplied with two current clamps for use during stakeless earth testing. Firstly, the A1018 can measure current up to 1000A making it suitable for low range and leakage current measurement. It has a 52mm clamping diameter and 1.5m cable. Secondly, the A1019 also measures up to 1000A with a 52mm clamping diameter and enables earth resistance measurement in conjunction with the Metrel A1018.

Metrel ES Manager PRO Licence

The Metrel ES Manager PRO software package provided in the Metrel MI3155 EU Set enables some of the advanced features on the Metrel MI3155 MFT and boasts sophisticated analysis, recording and reporting functions for a multitude of applications.

Metrel aMESM Android App

Suitable for Android smartphones, the Metrel aMESM App communicates with the Metrel MI3155 via Bluetooth and allows the user to manage data on their phone and send information back to HQ before even leaving a site. It also allows creation of a site and client database alongside the addition of pictures, video and voice recordings to test data.

Metrel part number: MI 3155 EU

Key Features

  • Huge variety of test features
  • Sophisticated, specialist testing features
  • Compatible with multiple installation types
  • User-friendly touchscreen operation
  • Applicable across dozens of industries
  • Large onboard memory
  • AUTO SEQUENCE customised and pre-set test sequences
  • Bluetooth wireless connectivity
  • Supplied with multiple testing facilities

Kit Contents

  • Metrel MI3155 Eurotest XD Multifunction Tester
  • 800 mAh Battery Pack
  • Power Supply Adapter 12V / 3A
  • Current Clamp A1018 (low range, leakage)
  • Current Clamp A1019
  • Tip Commander
  • Test Lead, 4-wire, 1.5m
  • Test Lead, 3-wire, 1.5m
  • Test Lead, 2-wire, 2.5kV, 1.5m
  • 4x Test Probes (Black, Blue, Green and Red)
  • 6x Crocodile Clip (2x Black, 1x Green, 1x Blue, 2x Red)
  • Earth Set 20m
  • USB Cable
  • Soft Carrying Bag
  • Soft carrying Neck Belt
  • Metrel ES Manager Pro Software Licence*
  • Metrel aMESM Android App
  • Short Instruction Manual
  • Instruction Manual (CD)
  • Guide for Testing and Verification of Low Voltage Installations (CD)
  • Calibration Certificate
  • Metrel ES Manager (programme installation) A 1481 (CD)

What's In The Box?

  • Metrel MI3155 Eurotest XD Multifunction Tester
  • 800 mAh Battery Pack
  • Power Supply Adapter 12V / 3A
  • Current Clamp A1018 (low range, leakage)
  • Current Clamp A1019
  • Tip Commander
  • Test Lead, 4-wire, 1.5m
  • Test Lead, 3-wire, 1.5m
  • Test Lead, 2-wire, 2.5kV, 1.5m
  • 4x Test Probes (Black, Blue, Green and Red)
  • 6x Crocodile Clip (2x Black, 1x Green, 1x Blue, 2x Red)
  • Earth Set 20m
  • USB Cable
  • Soft Carrying Bag
  • Soft carrying Neck Belt
  • Metrel ES Manager Pro Software Licence*
  • Metrel aMESM Android App
  • Short Instruction Manual
  • Instruction Manual (CD)
  • Guide for Testing and Verification of Low Voltage Installations (CD)
  • Calibration Certificate
  • Metrel ES Manager (programme installation) A 1481 (CD)
Specification

Continuity Testing

Test current 7mA 2-wire

  • Ranges: 0 to 19.99Ω; 20Ω to 1999Ω
  • Resolutions: 0.1Ω; 1Ω
  • Accuracy: ±(5% + 3 digits)

Test current 200mA 2-wire, 4 wire

  • Ranges: 0 to 19.99Ω; 20Ω to 199.9Ω; 200Ω to 1999Ω
  • Resolutions: 0.01Ω; 0.1Ω; 1Ω
  • Accuracy: ±(5% + 3 digits); ±10%; ±20%

Insulation Resistance

R iso, R iso all Test voltage 50V/100V/250V

  • Ranges: 0MΩ to 19.99MΩ; 20MΩ to 99.9MΩ; 100MΩ to 199.9MΩ
  • Resolutions: 0.01MΩ; 0.1MΩ; 0.1MΩ
  • Accuracy: ±(5% + 3 digits); ±10%; ±20%

R iso, R iso all Test voltage 500V/1000V

  • Ranges: 0 to 19.99MΩ; 20MΩ to 199.9MΩ; 200MΩ to 999MΩ
  • Resolutions: 0.01MΩ; 0.1MΩ; 1MΩ
  • Accuracy: ±(5% + 3 digits); ±5%; ±10%

R iso, R iso all Test voltage 2500V

  • Ranges: 0 to 19.99MΩ; 20MΩ to 199.9MΩ; 200MΩ to 999MΩ; 1GΩ to 19.99GΩ
  • Resolutions: 0.01MΩ; 0.1MΩ; 1MΩ; 0.1GΩ
  • Accuracy: ±(5% + 3 digits); ±5%; ±10%; ±10%

DAR, PI

  • Range: 0.01 to 9.99; 10 to 100
  • Resolutions: 0.01; 0.1
  • Accuracy: ±(5% + 2 digits); ±5%

Varistor test AC, DC

  • Range: 0V to 1000V (DC); 0V to 625V (AC)
  • Resolution: 1V
  • Accuracy: ±(3% + 3 digits)

RCD

RCD Uc

  • Ranges: 0 to 19.99V; 20V to 99.9V
  • Resolution: 0.1V
  • Accuracy: (-0% / + 15%) of reading ± 10 digits; (-0% / + 15%) of reading

RCD (t)

  • Ranges: 0 to 40ms; 0s to max time
  • Resolution: 0.1ms
  • Accuracy: ±1ms; ±3ms

RCD I Ramp

  • Ranges: 0.2xl∆N to 1.1xl∆N (AC, MI, EV a.c.); 0.2xl∆N to 1.5xl∆N (A, I∆N ≥30mA); 0.2xl∆N to 2.2xlvN (A, I∆N <30mA); 0.2xl∆N to 2.2xl∆N (B, MI, EV, d.c.)
  • Resolution: 0.05xl∆N
  • Accuracy: ±0.1xl∆N

Impedance

Zline (L-L, L-N), Ipsc, Zline 4-wire

  • Ranges: 0Ω to 9.99Ω; 10Ω to 99.9Ω; 100Ω to 999Ω; 1kΩ to 9.99kΩ
  • Resolutions: 0.01Ω; 0.1Ω; 1Ω; 10Ω
  • Accuracy: ±(5% + 5 digits); ±(5% + 5 digits); ±10%; ±10%

Zloop (L-PE), Ipfc, Zloop 4-wire

  • Ranges: 0Ω to 9.99Ω; 10Ω to 99.9Ω; 100Ω to 999Ω; 1kΩ to 9.99kΩ
  • Resolutions: 0.01Ω; 0.1Ω; 1Ω; 10Ω
  • Accuracy: ±(5% + 5 digits); ±(5% + 5 digits); ±10%; ±10%

Voltage

TRMS

  • Range: 0 to 550V
  • Resolution: 1V
  • Accuracy: ±(2% + 2 digts)

Frequency

  • Ranges: 0Hz to 9.99Hz; 10Hz to 499.9Hz
  • Resolution: 0.01Hz; 0.1Hz
  • Accuracy: ±(0.2% of reading + 1 digit)

Current

TRMS, AC with A1018, range=20MA

  • Ranges: 0mA to 99.9mA; 100mA to 999mA; 1A to 19.99A
  • Resolutions: 0.1mA; 1mA; 0.01mA
  • Accuracy: ±(5% of reading + 5 digits); ±(3% of reading + 3 digits); ±3%

TRMS, AC with A1019, range=20MA

  • Ranges: 0mA to 99.9mA; 100mA to 999mA; 1A to 19.99A
  • Resolutions: 0.1mA; 1mA; 0.01mA
  • Accuracy: Indicative; ±5%; ±3%

TRMS AC/DC with A1391, range = 40A

  • Ranges: 0A to 1.99A; 2A to 19.99A; 20A to 39.9A
  • Resolutions: 0.01A; 0.01A; 0.1A
  • Accuracy: ±(3% + 3 digits) ; ±3%; ±3%

TRMS AC/DC with A1391, range = 300A

  • Ranges: 0A to 19.99A; 20A to 39.9A; 40A to 299.9A
  • Resolutions: 0.01A; 0.1A; 0.1A
  • Accuracy: Indicative; indicative; ±(3% + 5 digits)

Earth Resistance

Three wire

  • Ranges: 0 to 19.99Ω; 20Ω to 199.9Ω; 200Ω to 9999Ω
  • Resolutions: 0.01Ω; 0.1Ω; 1Ω
  • Accuracy: ±(5% + 5 digits)

2 clamp

  • Ranges: 0Ω to 19.99Ω; 20Ω to 30Ω; 30.1Ω to 39.9Ω
  • Resolutions: 0.01Ω; 0.1Ω; 0.1Ω
  • Accuracy: ±(10% + 10 digits); ±20%; ±30%

Specific earth resistance

  • Ranges: 0Ωm to 99.9Ωm; 100Ωm to 999Ωm; 1kΩm to 9.99kΩm; 10kΩm to 99.9kΩm; 100kΩm to 9999kΩm
  • Resolutions: 0.1Ωm; 1Ωm; 0.01kΩm; 0.1kΩm; 1kΩm
  • Accuracy: ±5% (1Ω to 1999Ω); ±10% (2kΩ to 19.99kΩ); ±20% (>20kΩ)

Power

  • Power (P, S, Q): 0W (VA, Var) to 99.9kW (kVA, kVar)
  • Power factor: -1 to 1
  • Voltage THD: 0.1% to 99.9%

Harmonics

  • Voltage harmonics: 0.1V to 500V
  • Voltage THD: 0.1% to 99.9%
  • Current harmonics and current THD: 0A to 199.9A

First Fault Leakage Current (IFSL)

Isc 1, Isc 2

  • Range: 0mA to 19.9mA
  • Resolution: 0.1mA
  • Accuracy: ±(5% + 3 digits)

IMD Test

Threshold indicative insulation resistance

  • Range: 5 to 640kΩ
  • Resolution: 5kΩ
  • Accuracy: Indicative values, up to 128 steps

Illuminance

Type B

  • Ranges: 0.01 Lux to 19.99 Lux; 20Lux to 199.9Lux; 200Lux to 1999Lux; 2kLux to 19.99kLux
  • Resolutions: 0.01Lux; 0.1Lux; 1Lux; 10Lux
  • Accuracy: ±(5% + 2 digits); ±(5% + 2 digits); ±5%; ±5%

Type C

  • Ranges: 0.01 Lux to 19.99 Lux; 20Lux to 199.9Lux; 200Lux to 1999Lux; 2kLux to 19.99kLux
  • Resolutions: 0.01Lux; 0.1Lux; 1Lux; 10Lux
  • Accuracy: ±(10% + 3 digits); ±(10% + 3 digits); ±10%; ±10%

Discharging Time

Discharging time

  • Range: 0s to 10s
  • Resolution: 0.1s
  • Accuracy: ±(5% + 2 digits)

Peak voltage

  • Range: 0V to 550V
  • Resolution: 1V
  • Accuracy: ±(5% + 3 digits)

General

  • Power supply: 8800 mAh Li-ion battery pack
  • Overvoltage category: 600V Cat III; 300V Cat IV
  • Protection class: Double insulation
  • COM port: Bluetooth, USB , RS-232
  • Weight: 1.78kg
  • Size: 252mm x 111mm x 165mm
