Seaward Primetest 100 Contractors PAT Testing Kit

Seaward
SKU: SEAWPT100CONKIT
  • Pre-programmed test sequences for Class I appliances, Class II appliances and mains/IEC leads
  • Selectable 250 V and 500 V insulation resistance test voltages
  • Supports barcode scanning, photo tagging, label printing and electronic reporting via PATMobile App
More Info

£425.00 (ex VAT)
£510.00 (inc VAT)

In Stock - Available Next Day

Seaward PrimeTest 100 Contractors PAT Testing Kit

The Seaward PrimeTest 100 Contractors PAT Testing Kit is centred around the battery-powered handheld Seaward PrimeTest 100 PAT Tester, which allows users to move quickly between appliances without needing to connect it to a mains supply.

Updated for the 5th Edition of the IET Code of Practice and compliant with BS EN 50699, the tester provides the core testing functions required for checking a range of electrical equipment. It includes pre-programmed test sequences that allow users to quickly test Class I appliances, Class II appliances and mains leads, along with manual test modes that provide greater control when individual measurements are required. The tester can perform earth continuity, insulation resistance and substitute leakage testing, with selectable 250 V or 500 V insulation test voltages, user-selectable earth continuity limits, long-lead testing and Class II functional earth testing.

Operating it is simple, thanks to a three-button interface and clear LCD display showing both measured test values and PASS/FAIL results. The pre-programmed test sequences help users quickly select the appropriate test routine, while Seaward's ZAP technology is designed to provide reliable earth continuity measurements where surface contamination, such as rust or limescale, could otherwise affect results. Connecting the PrimeTest 100 to a mains outlet also allows users to check mains voltage and socket wiring, adding useful functionality for routine electrical safety checks.

The included accessories in the Contractors Kit are a PAT Certificate Pad, IEC adaptor, PASS and FAIL labels, and Tuff Tag Cable Wrap Labels, which all make documentation and the identification of tested equipment easy and straightforward. Everything is supplied in a test meter kit bag, keeping the tester and accessories together for easier transport between testing locations.

For users who want to combine portable testing with digital record keeping, the PrimeTest 100 is compatible with Seaward’s free PATMobile App. Test results can be transferred to the app alongside barcode scanning, photo tagging, label printing and reporting, providing a convenient way to build and manage electronic test records.

PAT Testing Kit Comparison Guide



Small Business Kit

Contractors Kit

Landlords kit

Maintenance kit

Industrial kit

Test-Meter Kit Bag

✔

  ✔

✔

✔

x 2

PAT Register Book

✔

  ✔

✔

✔

✔

PAT Certificate Pad

✔

  ✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔



✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔

  ✔

✔

✔

500 Pass labels

x 2

  x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

  ✔

x 2

x 2

x 2

200 Fail labels

✔

  ✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels

    ✔

✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Battery-powered handheld PAT tester
  • IET Code of Practice 5th Edition and BS EN 50699 compliant
  • Class I, Class II and mains lead testing
  • Earth continuity, insulation resistance and substitute leakage tests
  • Selectable 250 V / 500 V insulation testing
  • User-selectable earth continuity limits
  • Long-lead and Class II functional earth testing
  • Simple three-button operation
  • LCD display with PASS/FAIL indication
  • ZAP technology for reliable continuity testing
  • Mains voltage and socket wiring checks
  • PATMobile App compatible
  • Barcode scanning, photo tagging and reporting capabilities

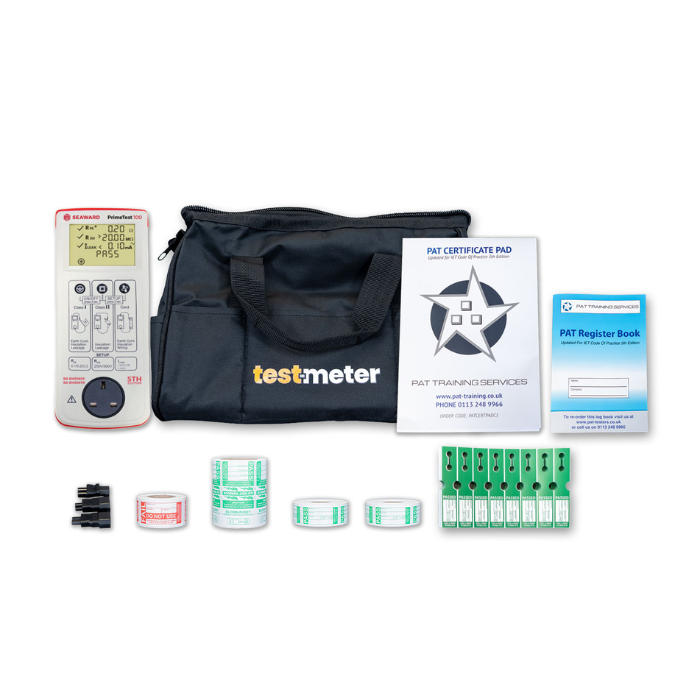

What's In The Box?

  • Seaward PrimeTest 100
  • Test-Meter Kit Bag
  • PAT Certificate Pad
  • IEC Adaptor
  • 2 x 500 PASS Labels
  • 250 PASS Wrap Labels
  • 200 FAIL Labels
  • 250 Tuff Tag Cable Wrap Labels
Specification

Earth Continuity

  • Test Current: +/- 200mA DC
  • Display Range:  0.00 – 19.99Ω
  • Pass Value: 0.1/0.2/0.3 Ω

Insulation Resistance

  • Test Voltages: 250/500V DC
  • Display Range: 0.20 – 19.99MΩ
  • Pass Value: 1/2MΩ

IEC Lead Test

  • Tests Performed:
    - Earth continuity
    - Insulation resistance
    - Live, neutral continuity and polarity

Equivalent Leakage

  • Test Voltage: 40V, 50Hz, AC nominal
  • Display Range: 0.1mA to 5.00mA
  • Pass Value: 5.00mA

Power Socket test

  • Input Voltage Range: 230V +10%, -15% AC
  • Indicators:
    - Phase to earth voltage
    - Phase to neutral voltage
    - Neutral to earth

General Specifications

  • Dimensions: 265 x 105 x 52mm (h x w x d)
  • Weight: 800g
  • Power Source: 6 x AA Batteries
