FLIR MR265 Moisture Meter and Thermal Imager with MSX

FLIR
SKU: TELEMR265
  • High performance 160 x 120 (19,200 pixels) thermal imager
  • Features impressive FLIR MSX and IGM enhancement technology
  • Includes both pin probe and non-invasive pinless moisture measurements
More Info
In Stock - Available Next Day

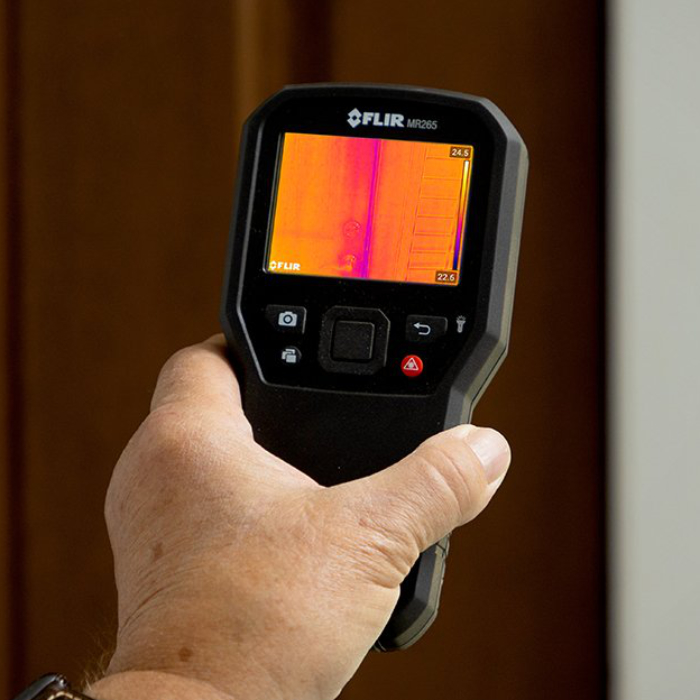

FLIR MR265 Moisture Meter and Thermal Imager with MSX

The FLIR MR265 Moisture Meter and Thermal Imager with MSX is an accomplished all-in-one instrument built to help facility and building maintenance professionals investigate issues related to moisture, air leaks, and insulation voids. Part of the FLIR MR Series of moisture meters, this is an affordable option for inspectors in need of similar features as the MR277 but who do not need environmental measurements such as temperature & humidity or wireless connectivity. The MR265 includes an IR resolution of 160 x 120 (19,200 pixels), a built-in thermal camera, field of view (FOV) of 57° × 44°, sensitivity up to 150 mK and an object temperature range of 0°C to 100°C.

Combining pin (quantitive) and pinless (qualitative) moisture measurements, the MR265 is designed to show you precisely where to investigate. The electromagnetic capacitive pinless moisture sensor takes non-destructive quantitive measurements without having to open the wall, whilst the quantifiable moisture measurements are captured via the included pin probe resistive sensor. Carry fewer tools thanks to this versatile unit which fully complies with RESNET standards.

Featuring IGM (Infrared Guided Measurement) and MSX (Multi-Spectral Dynamic Imaging) enhancement technology, the MR265 rapidly targets and scans problem areas. FLIR IGM will guide users to the problematic spot in question for measurements, readings and further analysis. The impressive FLIR MSX feature then takes over, embossing visual detail from the built-in 2MP visual camera over the captured thermal images. Producing a crisp, clear picture with greater edge and outline detail, MSX eliminates unnecessary guesswork while IGM allows operators to ensure the problem has been fixed. With five thermal image palettes to choose from, 3 pre-set and 1 custom emissivity setting, the FLIR MR265 can create a single file documenting comprehensive thermal and visual imagery including moisture reading and laser location.

Conveniently evaluate issues while still in the field thanks to the FLIR MR265's large, vivid 2.8-inch display, just one of several highly useful built-in features. Continue work even in dimly lit areas with the incorporated bright work light and integrated laser pointer. An internal 8 GB memory can store up to 15,000 visual and radiometric jpg files, while the rechargeable battery can last up to 10 hours. A programmable auto-off is also available, with settings for 5, 10, 20 and 30 minutes. With 22 language options and a rugged outer shell built to withstand up to a 2m drop, the MR265 is covered by FLIR's limited 10-year warranty. A variety of optional compatible probe accessories are available for increased instrument flexibility.

FLIR Thermal Studio

Document both thermal and visual MR265 images before and after repairs with the impressive FLIR Thermal Studio software. Upload images to gain access to professional thermography analysis capabilities or even send the jpeg to a secondary software platform of your choice. Inspectors can use this uploaded data to create and share professional reports with all findings and proof of repairs included, reassuring customers that any rot, mould or moisture issues have been resolved. For more details concerning FLIR Thermal Studio and its advanced features, please visit our product page here.

Key Features

  • Moisture meter and thermal imager
  • Includes MSX technology
  • Emboss visual detail over thermal images
  • Features IGM enhancement
  • Users are laser-guided to the spot in question
  • Designed for facility and building maintenance inspectors
  • Spot issues related to air leaks, moisture and insulation voids
  • IR resolution of 160 x 120 (19,200 pixels)
  • Field of view (FOV) of 57° × 44°
  • Thermal sensitivity up to 150 mK
  • Object temperature range of 0°C to 100°C
  • Quantitive pin moisture measurements with pin probe resistive sensor
  • Qualitative pinless moisture measurements with electromagnetic capacitive pinless sensor
  • Non-destructive measurement capability
  • Built-in 2MP visual camera
  • Five thermal palettes
  • 3 pre-set and 1 custom emissivity setting
  • Large bright 2.8-inch display
  • Incorporated work light
  • 8GB internal memory for 15,000 radiometric jpg files
  • Rechargeable battery with up to 10-hour continuous life
  • Programmable auto-off feature
  • 22 languages included
  • Rugged shell drop tested up to 2m
  • FLIR 10-Year Limited Warranty
  • Complies with RESNET standards
  • Compatible with FLIR Thermal Studio

FLIR part number: MR265

What's In The Box?

  • FLIR MR265
  • FLIR MR02 Standard Moisture Pin Probe
  • Quick start guide
  • International USB charger
  • USB cable
  • Lanyard
Specification

Thermal Imaging

  • Thermal image resolution: 160 × 120 (19,200 pixels)
  • Spectral response: 8 μm to 14 μm
  • Field of view (W × H): 57° × 44°
  • Sensitivity: <150 mK
  • Object temperature range: 0°C to 100°C (32°F to 212°F)
  • Emissivity correction: 3 pre-set and 1 custom emissivity setting
  • Image update speed frequency: 9 Hz

Image Modes and Displays

  • Thermal image palettes: Iron, Rainbow, Arctic, White-hot, Black-hot
  • MSX: Adds visual details to full resolution thermal image
  • Image modes: Thermal, Visual, MSX
  • Internal memory: 8 GB
  • Image gallery: Yes
  • Display type: QVGA (320 × 240 pixels) 2.8-in colour TFT graphical display

Moisture Measurements

  • Pin moisture range: 7% to 100%
  • Pin moisture accuracy: ±1.5%, 7% to 30%, Reference only: 30% to 100%
  • Pin moisture groups: 11 material groups
  • Pinless moisture range and accuracy: 0 to 100; relative
  • Pinless measurement depth: Max of 19 mm (0.75 in)
  • Measurement resolution: 0.1
  • Response time pinless mode: 100 ms
  • Response time pin mode: 750 ms

General Information

  • Saved image file format: Radiometric jpg
  • Stored image capacity: 15,000 Images
  • Digital camera: 2 MP
  • Digital camera field of view (FOV): 83° (70.5° HFOV × 56° VFOV)
  • Language options: 22
  • Laser type: Visible class 2, single laser pointer to centre of thermal image
  • Warranty: Limited 10-Year Warranty

Power System

  • Continuous run time: 10 hours maximum
  • Typical usage: 4 work weeks
  • Auto power off: Programmable: off, 5, 10, 20 and 30 minutes
  • Battery: Rechargeable 3.7 V nominal, 5400 mAh LiPo

Certifications

  • Certification standards:
    EN 61326 (EMC)
    EN 60825-1 Class 2 (laser)
    IEC61010-1
  • Agency approvals:
    CE
    RCM
    FCC Part 15B
    UKCA

Environmental and Physical Data

  • Operating temperature: 0°C to 45°C (32°F to 113°F)
  • Storage temperature: -20°C to 60°C (-4°F to 140°F)
  • Operating humidity: 10% to 90%
  • Storage humidity: 90% relative humidity (no condensation)
  • Drop test: 2 m (6.6 ft)
  • Weight: 392 g (0.7 lb)
  • Size (L × W × H): 17.7 × 8.9 × 3.6cm (6.97 × 3.5 × 1.43in)
Label Type Size Download
pdf Teledyne FLIR MR265 Datasheet pdf 153.1 KB Download
