Test Meter QuickPAT100 Contractors PAT Testing Kit

Test Meter PRO
SKU: TMQP100CONKIT
  • Offers essential accessories for contractors carrying out routine appliance testing
  • Features a large backlit display with clear green PASS & red FAIL status lights
  • Configurable to 5th Edition IET Code of Practice test limits
More Info

£299.00 (ex VAT)
£358.80 (inc VAT)

In Stock - Available Next Day

Test-Meter QuickPAT100 Contractors PAT Testing Kit

The Test-Meter QuickPAT100 Contractors PAT Testing Kit offers contractors a practical solution for carrying out routine portable appliance testing. It is designed for users who need reliable safety checks, combining essential electrical tests with simple controls, clear PASS/FAIL results and a portable design. It is well suited to testing appliances, extension leads and electrical equipment as part of regular workplace or property maintenance.

The QuickPAT100 features an intuitive rotary switch and straightforward operation, which makes it easy to select the required test without navigating complex menus. It performs 200 mA earth continuity, insulation resistance testing at 250 V or 500 V DC, and substitute leakage testing, which is particularly useful for appliances that cannot be energised during testing.

The tester also supports full extension lead testing, including polarity verification and L-N short-circuit detection. This allows electrical accessories and leads to be checked alongside portable appliances rather than treated as an afterthought. Built-in voltage measurement provides an additional safety check before testing by confirming L-N, L-PE and N-PE supply conditions.

Results are easy to interpret at a glance, thanks to the large backlit display, which uses a green light for PASS and a red light for FAIL. Powered by six AA batteries, the QuickPAT100 can perform up to 2,500 tests per battery set, while its internal memory stores up to 1,500 test results for convenient record keeping.

The QuickPAT100 can be configured to work with the test limits specified by both the 5th Edition IET Code of Practice and BS EN 50699 Recurrent Tests of Electrical Equipment. Users can select the relevant test limits on the tester, which then compares measured results against the selected thresholds and provides a clear PASS/FAIL outcome. This makes the QuickPAT100 a useful choice for organisations carrying out recurrent electrical equipment checks in line with their chosen testing guidance.

Included accessories such as an IEC adaptor, a PAT certificate pad, a selection of PASS, FAIL and cable-wrap labels, and Tuff Tag cable-wrap labels make the kit ready for practical PAT testing straight out of the bag. Everything is supplied in a dedicated Test-Meter kit bag, keeping the tester and accessories together for transport between jobs.

SimplyPATs Version 7 PAT Testing Software

SimplyPATs Version 7 PAT Testing Software is a professional and user-friendly solution designed for efficient downloading, managing and reporting on PAT test data. Developed in collaboration with expert PAT testers, it offers a powerful yet affordable way to handle everything from manual data entry to fully automated test downloads.

SimplyPATs is designed as a one-off purchase with no ongoing licence fees and includes free updates and reliable technical support. It is compatible with a wide range of PAT testers and allows you to download data in the manufacturer’s native format or upload directly to supported instruments. Once imported, test results are displayed clearly in a spreadsheet-style interface, allowing you to easily review appliance details, test outcomes, retest dates and repair information.

The software comes with an extensive suite of professional reports, including pass/fail summaries, appliance registers and PAT testing certificates. Customise reports with company logos, electronic signatures and colour-coded sections, then export to popular formats such as PDF, Excel, Word and HTML. Retest reminders can also be exported to Microsoft Outlook to help you with staying compliant.

SimplyPATs Version 7 includes advanced invoicing tools, fast manual data entry with predictive text, and ongoing enhancements to compatibility, reporting and workflow efficiency. It is perfect to be used by contractors and in-house testers to delivers a reliable, professional system for managing PAT testing data.

PAT Testing Kit Comparison Guide



Small Business Kit

Contractors Kit

Landlords kit

Maintenance kit

Industrial kit

Test-Meter Kit Bag

✔

  ✔

✔

✔

x 2

PAT Register Book

✔

  ✔

✔

✔

✔

PAT Certificate Pad

✔

  ✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔



✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔

  ✔

✔

✔

500 Pass labels

x 2

  x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

  ✔

x 2

x 2

x 2

200 Fail labels

✔

  ✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels

    ✔

✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • 200 mA Earth Continuity Testing
  • 250 V & 500 V Insulation Resistance Testing
  • Substitute Leakage Testing
  • Extension Lead Testing with Polarity Verification
  • L-N Short-Circuit Detection
  • Built-In Voltage Measurement
  • Clear PASS/FAIL Result Indication
  • Large Backlit Display
  • Stores Up to 1,500 Test Results
  • Up to 2,500 Tests per Battery Set
  • Supports 5th Edition IET CoP & BS EN 50699 Limits
  • Complete Contractor PAT Testing Kit Included
  • Supplied with Carry Bag and Labels

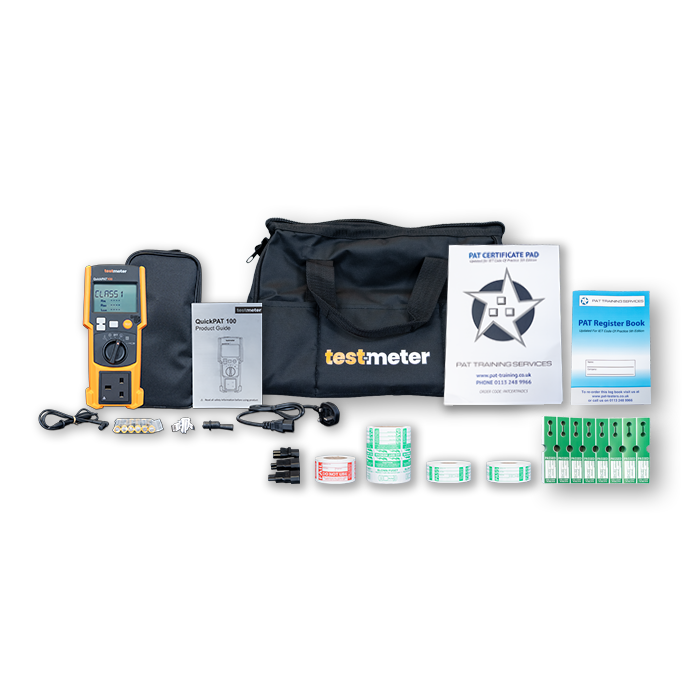

What's In The Box?

  • QuickPAT100
  • Test-Meter kit bag
  • PAT Certificate Pad
  • IEC Adaptor
  • 2 x 500 PASS Labels
  • 250 PASS Wrap Labels
  • 200 FAIL labels
  • 250 Tuff Tag Cable Wrap Labels
Specification

General Specifications

  • Test Appliances: Class I, II, III, extension cables / reels
  • Function Selector: Rotary switch with pointing LED, backlit symbols
  • Display: LCD – PASS/FAIL only (no numerical values displayed)
  • Display Backlight: White (standard), Green (PASS), Red (FAIL); ambient light sensor
  • Memory: 1500 measurements
  • Power Supply: 6× AA Batteries (1.5VIECLR06)
  • Battery Life: approx. 2500 tests
  • Auto Power Off: 2 minutes
  • RTC Battery: CR2032
  • Mains Supply: 230V AC, 50Hz
  • Measurement Category: CAT II 300V
  • Height Above Sea Level: up to 2000 m
  • Pollution Degree: 2
  • Protection Class: IP40
  • Dimensions: 255 × 115 × 60 mm
  • Weight: 990 g (with batteries)
  • Operating Temperature: 0–30°C (≤80% RH), 31–40°C (≤75% RH)
  • Storage Temperature: −25…+65°C (≤80% RH) without batteries
  • Fuses: F1+F2: F16A/250V, 5×20 mm ceramic, ≥500A breaking capacity
  • Standards: EN50678, EN50699, DGUV Reg.3, ÖVE/ÖNORM E 8701, NEN 3140, UK 5th Ed. CoP, EN61010-1, EN61010-2-030, EN61557-1/2/4/10/16

Earth Continuity – Protective Conductor Resistance

  • Measurement Range: 0.05–19.99 Ω
  • Resolution: 0.01 Ω
  • Accuracy: ±(5% + 2d)
  • Test Current: >200 mA into 2 Ω
  • Open Circuit Voltage: <5 V
  • User Pass/Fail Limits: 0.1, 0.2, 0.3, 0.4, 0.5 Ω

Insulation Resistance

  • Measurement Range: 0.1–19.99 MΩ
  • Resolution: 0.01 MΩ
  • Accuracy: ±(5% + 2d)
  • Test Voltages: 250V DC or 500V DC (+20%, −0%)
  • Measuring Current: >1 mA, <2 mA at 2kΩ
  • Factory Limits: Class I: 1 MΩ, Class II: 2 MΩ

Substitute Leakage Current

  • Measurement Range: 0.20–19.99 mA
  • Resolution: 0.01 mA
  • Accuracy: ±(5% + 2d)
  • Test Voltage: 40V AC, 50 Hz
  • Test Current: <10 mA into 2kΩ
  • Pass/Fail Limits: Class I: 3.5 mA or 5 mA, Class II: 0.5 mA or 5 mA

Voltage Measurement

  • Measurement Range: 5–270V AC
  • Resolution: 1V
  • Accuracy: ±(5% + 2d)
  • Measurements Shown: L–N, L–PE, N–PE
