Testo 300 LL Flue Gas Analyser Printer Kit

Testo
SKU: TESTO300LLPRINTERKIT
  • A commercial flue gas analyser with touchscreen operation
  • Measure CO up to 30,000ppm with H2-compensation and dilution
  • Full range of measurement parameters for advanced combustion analysis
More Info
£1,798.80 £1,499.00
In Stock - Available Next Day
Choose Your Free Gift
Testo Socket and Bit Set
Testo Socket and Bit Set
Free
£39.00

For a limited time only we're giving away a FREE Testo branded Socket & Bit Set with every Testo 300 & Testo 327 Flue Gas Analyser and Testo 550i, Testo 550s , Testo 570s & Testo 557s Digital Manifold.
Offer available until the 30th of April 2024. Terms and conditions apply.

Testo 300 LL Flue Gas Analyser Printer Kit

The Testo 300 LL Flue Gas Analyser is an advanced industrial instrument designed for use on commercial combustion systems. It is capable of measuring many different parameters including oxygen (0 to 21%), CO (0 to 4000ppm), draught (-9.99mbar to 40mbar), pressure (-100mbar to 200mbar), and temperature (-40˚C to 1200˚C).

An advanced CO measurement feature with dilution and H2 compensation allows the user to measure carbon monoxide up to 30,000ppm and it is also possible to measure ambient carbon monoxide up to 2000ppm. The Testo 300 can calculate CO2, efficiency, flue gas loss and combustion ratio.

The Testo 300 LL has an intuitive interface and is operated by a 5” colour touchscreen. The user can curate the readings displayed during inspections and multiple readings can be displayed simultaneously. It is possible to view readings over time in graphical form and then zoom in on anomalous areas.

Up to one million results can be saved in the internal memory alongside a full address book including all of your clients. WLAN and Bluetooth wireless connectivity allow the user to immediately communicate with a suitably enabled device and the analytics functions on the Testo 300 can be used to produce downloadable PDF reports.

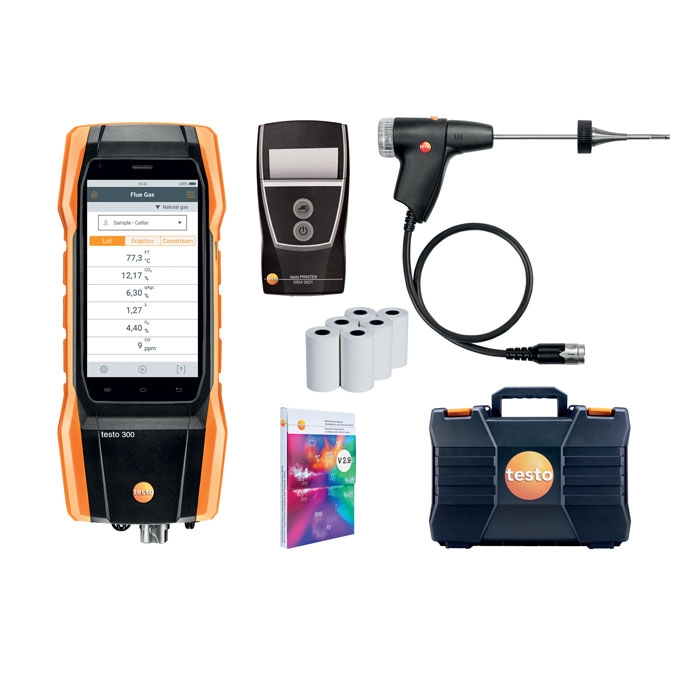

Testo 300 LL Printer Kit

In addition to the flue gas analyser, the Testo 300 LL Printer Kit features a modular flue gas probe with 10 spare filters for taking measurements. The included Testo infrared wireless printer can print hard copies on-site and six printer rolls are included to get you started. Testo EasyHeat PC software facilitates data transfer, analysis and reporting and a hard carry case is provided to store the analyser and all the kit’s accessories.

Testo 300LL Comparison table

  Testo 300LL Testo 300LLNO Testo 300LL Printerkit
Testo 300 Testo 300LL Flue Gas Analyser Testo 300LL NOx Flue Gas Analyser Testo 300LL Flue Gas Analyser
Modular Flue Gas Probe (180mm x ø8mm) ✔ ✔ ✔
NOx Sensor fitted   ✔
10 x spare flue probe filters ✔ ✔ ✔
Testo wireless printer   ✔ ✔
6 x printer rolls   ✔ ✔
Testo EasyHeat PC software ✔ ✔ ✔
AC Charger Unit   ✔ ✔
Carry Case ✔ ✔ ✔

Testo part number: 0564 3004 89

Key Features

  • O2 measurement: 0 to 21%
  • CO measurement: 0 to 30,000ppm (with H2 compensation and dilution)
  • Draught measurement: -9.99mbar to 40mbar
  • Pressure measurement: -100mbar to 200mbar
  • Ambient CO measurement: 0 to 2000ppm
  • Temperature measurement: -40˚C to 1200˚C
  • NO measurement (optional): 0 to 3000ppm
  • Calculation: CO2, efficiency, combustion ration & flue loss
  • Sophisticated touchscreen interface
  • Intuitive menus and results display
  • Instantly produce reports and analysis
  • Wireless distribution over a WLAN connection
  • Sturdy construction
  • Four-year warranty

What's In The Box?

  • Testo 300 LL Flue Gas Analyser
  • Modular flue gas probe (180mm x ø8mm)
  • 10 x spare flue probe filters
  • Testo wireless printer
  • 6 x printer rolls
  • Testo EasyHeat PC software
  • Carry case
Specification

O2 measurement

  • Range: 0 to 21%
  • Accuracy: ±0.2% vol
  • Resolution: 0.1% vol

CO measurement (without H2 compensation)

  • Range: 0 to 4000ppm
  • Accuracy: ±20 ppm (0 to 400 ppm); ±5% of m.v. (401 to 2,000 ppm); ±10% of m.v. (2001 to 4,000 ppm)
  • Resolution: 1ppm

CO measurement (with H2 compensation)

  • Range: 0 to 8000ppm
  • Accuracy: ±10 ppm or ± 10% of m.v. (0 to 200 ppm); ±20 ppm or ± 5% of m.v. (201 to 2,000 ppm); ±10% of m.v. (2,001 to 8,000 ppm)
  • Resolution: 1ppm

CO measurement (with H2 compensation and dilution)

  • Range: 0 to 30,000ppm
  • Accuracy: ±100ppm or ±10% of m.v.
  • Resolution: 1ppm

Combustion ratio (calculated)

  • Resolution: 0.0001

NO measurement (optional upgrade)

  • Range: 0 to 3200ppm
  • Accuracy: ±5 ppm (0 to 100 ppm); ±5% of m.v. (101 to 2,000 ppm); ±10% of m.v. (2,001 to 3,000 ppm)
  • Resolution: 1ppm

Efficiency testing

  • Range: 0 to 120%
  • Resolution: 0.1%

Flue gas loss

  • Range: 0 to 99.9%
  • Resolution: 0.1%

CO2 determination

  • Range: 0 to CO2 max.
  • Accuracy: ±0.2% vol
  • Resolution: 0.1% vol

Draught measurement

  • Range: -9.99 to +40mbar
  • Accuracy: ±0.005 mbar (0 to 0.1 mbar); ±0.02 mbar (0.1 to +3.00 mbar); ±1.5% of m.v. (+3.01 to +40 mbar)
  • Resolution: 0.001mbar (0 to 0.1mbar); 0.01mbar (rest of range)

Pressure measurement

  • Range: -100mbar to +200mbar
  • Accuracy: ±0.5 mbar (0 to +50.0 mbar); ±1% of m.v. (+50.1 to +100.0 mbar); ±1.5% of m.v. (+100.1 to +200 mbar)
  • Resolution: 0.01mbar

Temperature

  • Range: -40˚C to 1200˚C
  • Accuracy: ±0.5°C (0.0 to +100.0°C); ±0.5% of m.v. (remaining meas. range)
  • Resolution: 0.1°C (-40 to +999.9°C); 1°C (remaining meas. range)

Ambient CO measurement (internal/flue gas probe)

  • Range: 0 to 2000ppm
  • Accuracy: ±10 ppm (0 to 100 ppm); ±10% of m.v. (101 to 2,000 ppm)
  • Resolution: 1ppm

Ambient CO measurement (external CO probe)

  • Range: 0 to 500ppm
  • Accuracy: ±3 ppm (0 to 29 ppm); ±10% of m.v. (30 to 500 ppm)
  • Resolution: 1ppm
  • Certification: The testo 300 is TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
  • Storage temperature: -20˚C to 50˚C
  • Operating temperature: -5˚C to 45˚C
  • Charging temperature: 0 to 45˚C
  • Humidity application range: 15% to 90% RH
  • Power supply: Rechargeable battery, USB mains unit
  • Rechargeable battery life: 10 hours
  • Protection class: IP40
  • Memory: 1 million measurement values
  • Display: 5” touch display HD 1280 x 720 pixels, IPS (160k)
  • Weight: Approx. 800g
  • Dimensions: 244mm x 59mm x 98mm
  • Warranty: Four years
