Fluke 1775 Three-Phase Power Quality Analyser

Fluke
SKU: FLUKE1775-CONF
  • Measure fast transients up to 8kV and harmonics up to 30kHz
  • Perform energy surveys and load testing
  • Large, touch sensitive screen
More Info

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

Fluke 1775 Three-Phase Power Quality Analyser

Fluke 1775 Three-Phase Power Quality Analyser is a high quality 2-in-1 instrument, combining the trouble-shooting capability of a power quality meter with the logging and analysis functionality of a power quality analyser. The slimline build profile enables the unit to be stored discreetly within machine cabinets during operation, while power can be drawn directly from the measured circuit, removing the need to locate power outlets or use extension leads. With its large touch screen display, the 1775 can be used easily even when wearing gloves.

By default, this analyser will capture more than 500 power quality parameters including fast transients up to 8kV and harmonics up to 30kHz. Dips and swells can be monitored, in addition to voltage and current measurements, all of which can enable you to create accurate power profiles of complex electrical systems.

Fluke Analyse Plus Software

The included Fluke Analyse Plus software package enables you to export data instantly via WiFi, LTE, wired Ethernet or USB cable from the handheld unit to a desktop PC. From there, you can create detailed reports - track, analyse and evaluate a huge variety of parameters. Trend analysis, benchmarking and compare data from the comfort of your office, making real-time decisions to optimise your facility or equipment. Energy consumption and power quality state of health can be analysed in every detail with automated reporting.
Users are able to customise logged parameters and create highly customised view of measurements for advanced data correlation.

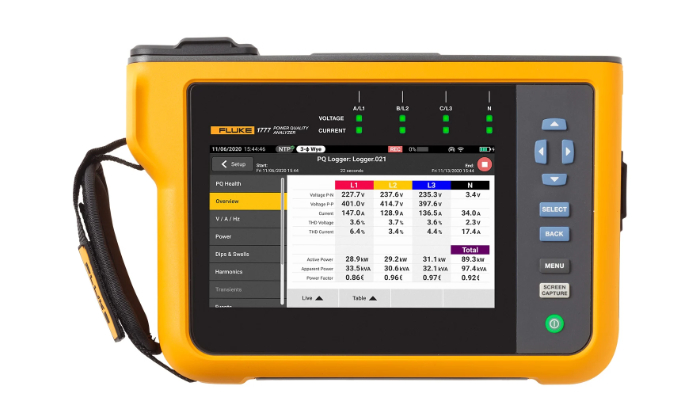

Automatic Measurement Capture

The Fluke 1770 series offers a unique measurement capture system, which allows the user to collect the right data every time, whilst also giving flexibility so select and adjust specific parameters as needed. Over 500 power quality parameters are captured by default using the guided set up making choosing the right parameters for the system being worked on an easy process. Data can be logged and analysed instantly and shared via the Fluke Energy Analyse Plus software. The data can be viewed at anytime meaning the testing doesn’t have to be completed for the results to viewed or analysed.

Ultimate Measurement Confidence

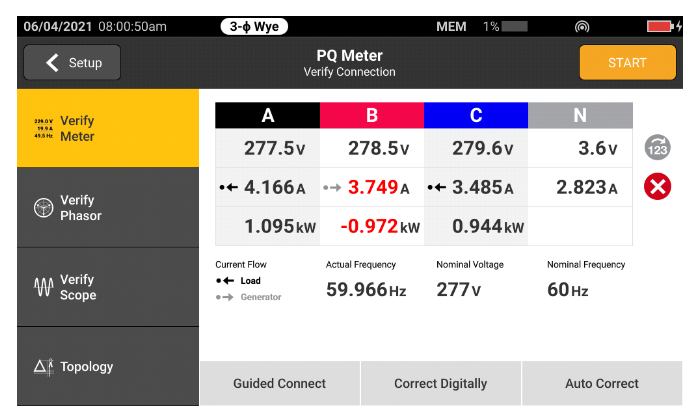

The Fluke 1770 series range offer a 2-in-1 devices that can combine troubleshooting functionality of a power quality meter with the robust analysis and data logging capabilities of a stand alone power quality analyser, in a single, handheld device that is simple and easy to use. Using the "PQ Meter" function gives the user an immediate access to live data in the field so that troubleshooting can be performed to help identify any potential problems. Using the "PQ Logging and Analysis" function, a step by step guide eliminates the the complexity of performing power quality studies. Using both these measurements with the unique measurement connection autocorrect function, the user is able to confidently ensure that there is no need to perform a second measurement, ensuring no time is wasted in the field.

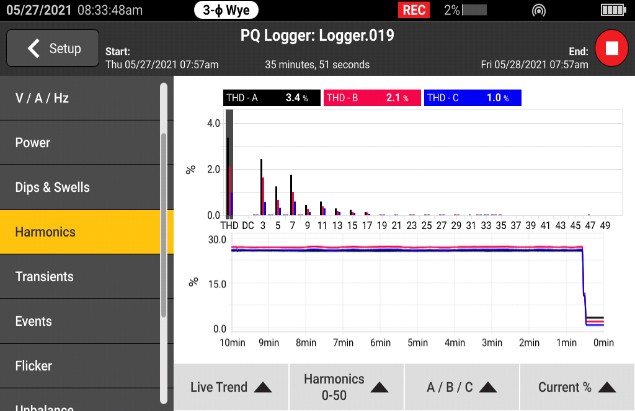

Calculate current harmonics limits

When downloading data from the 1770 series power quality analysers using the included Energy Analyse Plus Software users can compare voltage and harmonic data to different standards such as EN 50160 or IEEE 519 which allows the user to determine whether the test results exceed any compliance limits. Current harmonics can be observed before any distortion appears in the voltage, allowing the prevention of unexpected failures or non-complaint situations, an increase in system uptime and ensuring reliable power quality.

High-speed voltage transient capture

Transients can negatively impact an otherwise healthy system and can potentially damage equipment. The Fluke 1775 and 1777 both incorporate advanced transient technology to help the user identify high speed voltage transients. The fluke 1775 has a 1MHz sampling capability to capture fast transients whilst the Fluke 1777 has a 20MHz sampling capability.



The Fluke 1775 is available in 2 kit variations. Below, we have included a comparison chart outlining the features and accessories of each kit, to support you in making the correct purchasing decision.

  Fluke 1775 Basic Fluke 1775
Fluke 1775 Three-Phase Power Quality Analyser ✔ ✔
i17xx-Flex1500 24, Fluke-17xx IFLEX 1500 A 24 IN, 2.0M (4x)   ✔
Fluke-17XX, Flat Cable, Voltage Test Lead 3-PHASE+N ✔ ✔
AC285, Black Alligator Clip (4x) ✔ ✔
AC285, Green Alligator Clip (4x) ✔ ✔
Black 1 M USB-C Cable ✔ ✔
Fluke-17XX 0.18 M Test lead set, nonstack/stack ✔ ✔
Green test lead ✔ ✔
MP1-3R/1B Magnet Probe 1, 3 red/1 black magnet probes for 4mm banana   ✔
Fluke 174X Hanger Kit   ✔
Fluke 177X 4204 WiFi/BLE Module   ✔
Cable marker set ✔ ✔
Fluke 174X-MA-C8 wall outlet adapter ✔ ✔
Statement of calibration practises ✔ ✔
Soft carry case ✔ ✔

Fluke 177X Series Application Table

Applications Fluke 1773 Fluke 1775 Fluke 1777
Energy surveys and load testing ✔ ✔ ✔
Harmonic Surveys ✔ ✔ ✔
Nuisance circuit breaker tripping   ✔ ✔
Electric Utility Power Quality Surveys   ✔ ✔
Discovery of Equipment Failures Caused by 8kV mirco-second Transients   ✔ ✔
Discovery of Equipment Failures Caused by 8kV nano-second Transients     ✔

Fluke Premium Care Plan

The Fluke Premium Care Plan aims to reduce the cost of ownership of the Fluke 1775 Three-Phase Power Quality Analyser by eliminating the service and support charges, the Care Plan is available as a one year or three year option. The care plan includes one annual calibration per year at a Fluke Authorised Service Centre. If any accessories originally shipped with the Fluke 1775 are discovered to be defective, these will be replaced free of charge once a year under the care plan.

If the Fluke 1775 Three-Phase Power Quality Analyser is accidentally damaged, then repair of the tester will also be covered in the care plan, providing users with peace of mind should any unforeseen accidents happen.

With the Fluke Premium Care Plan the calibration, repair, collection and delivery of the Fluke 1775 will expedited reducing the downtime for the user.

Simply check the one year or three year service plan when placing your order, and your new analyser will be protected with Fluke premium care.

Fluke Premium Care Coverage

  Standard Warranty Fluke Premium Care
Repair manufacturing defects ✔ ✔
Annual calibration   ✔
Accidental damage and repair of main unit   ✔
Expedited calibration and repair   ✔
Expedited freight   ✔
Replacement or repair of damaged accessories   ✔
Priority Tech Support   ✔

We know the importance of getting the right instrument for the job, so we now offer a "Try Before You Buy" option on many of our products to help you make a more informed buying decision. Simply give us a call or click here to find out more.

Key Features

  • Optimised UI
  • Power from measured circuit - no need to find power outlet
  • Fluke Energy Analyse Plus software for detailed reporting
  • Measure fast transients up to 8kV, harmonics up to 30kHz
  • Over 500 power quality parameters captured
  • Cat IV 600V/Cat III 1000V overvoltage safety rating
  • High-speed voltage transient capture
  • Power quality and load testing
  • Touch sensitive screen

What's In The Box?

The Fluke 1775 Three-Phase Power Quality Analyser/BASIC includes:
  • Fluke 1775 Three-Phase Power Quality Analyser
  • Fluke 17XX flat cable voltage test lead 3-phase+N
  • AC285 black alligator clips (set of four)
  • AC285 green alligator clips
  • Black 1M USB-C cable
  • Line cords (US, EU, UK AUS, BRA)
  • FLK 17XX 0.18M test lead set
  • Green test lead
  • Fluke 177X 4204, WiFi/BLE module
  • Cable marker set (for voltage and current)
  • Fluke 174X MA C8 wall outlet adapter
The Fluke 1775 Three-Phase Power Quality Analyser includes:
  • Fluke 1775 Three-Phase Power Quality Analyser
  • i17xx-Flex1500 24, Fluke-17xx IFLEX 1500 A 24 IN, 2.0M (4x)
  • Fluke 17XX flat cable voltage test lead 3-phase+N
  • AC285 black alligator clips (set of four)
  • AC285 green alligator clips
  • Black 1M USB-C cable
  • Line cords (US, EU, UK AUS, BRA)
  • FLK 17XX 0.18M test lead set
  • Green test lead
  • Fluke 177X 4204, WiFi/BLE module
  • MP1-3R/1B Magnet Probe 1, 3 red/1 black magnet probes for 4mm banana
  • Fluke 174X Hanger Kit
  • Fluke 177X 4204 WiFi/BLE Module
  • Cable marker set (for voltage and current)
  • Fluke 174X MA C8 wall outlet adapter
Specification
  • Maximum input voltage: 1000V RMS/1000V DC (1700Vpk)
  • Current input number: 4 inputs 3 phases and Neutral, range selected automatically to attached sensor
  • Input mains frequency: DC, 50/60 Hz ±15 % (42.5 Hz … 57.5 Hz, 51 Hz … 69 Hz)
  • Interfaces: Ethernet, USB A/C WiFi, GPS
  • Warranty: 2 years (analyser)/1 year (accessories)
  • Calibration cycle: 2 years
  • Weight: 2.1kg
  • Dimensions: 28.0 cm x 19.0 cm x 6.2 cm (11.0 in x 7.5 in x 2.4 in)
Label Type Size Download
pdf Fluke 1770 Series Power Quality Analyser Data Sheet pdf 1.4 MB Download
