Fluke 1777 Three-Phase Power Quality Analyser

Fluke
SKU: FLUKE1777-CONF
  • Intelligent autocorrect function ensures you have the correct measurement connections every time
  • Instantly share data to PC for immediate decision making
  • Energy survey, load testing and Harmonic surveys
More Info

Fluke 1777 Three-Phase Power Quality Analyser

The Fluke 1777 Three-Phase Power Quality Analyser ensures you never miss a significant power quality event, measuring over 500 parameters from default. TRMS voltage and current, dips and swells, fast transients and harmonics can all be measured and instantly shared with colleagues using the 1777. The streamlined user interface and convenient touch-screen display make setting up and capturing the correct data easy and consistent, even when wearing gloves.

As the most complete model of the 177X series, the 1777 can be used for the following applications:

  • Energy surveys and load testing
  • Harmonic surveys
  • Nuisance circuit breaker tripping
  • Power utility & power quality surveys
  • Transients causing equipment failures

Fluke Analyse Plus Software

Transfer data immediately over WiFi, ethernet or USB to Fluke’s Energy Analyse Plus software package (included as standard). Energy Analyse Plus enables you to create informative and detailed reports, sharing your findings with colleagues or customers. Run benchmarks, compare and contrast data and evaluate local conditions within your facility. Convenient one-touch reporting is quick and easy and can conforms with a variety of regulatory standards including EN 50160, IEEE 519, GOST 33073 and IEC 61000-2-2. Energy consumption and power quality state of health can be analysed in every detail with automated reporting. Users are able to customise logged parameters and create highly customised view of measurements for advanced data correlation.

Automatic Measurement Capture

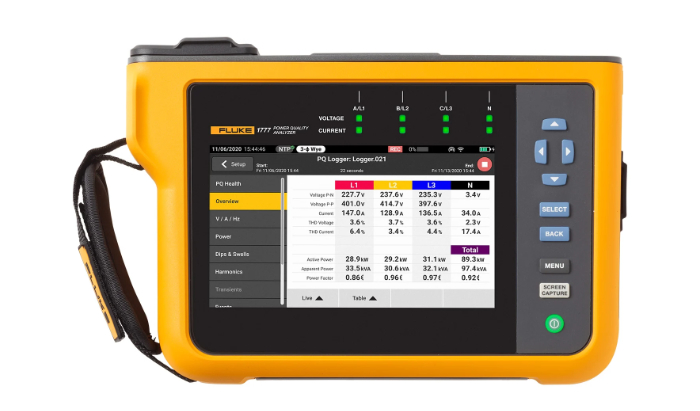

The Fluke 1770 series offers a unique measurement capture system, which allows the user to collect the right data every time, whilst also giving flexibility so select and adjust specific parameters as needed. Over 500 power quality parameters are captured by default using the guided set up making choosing the right parameters for the system being worked on an easy process. Data can be logged and analysed instantly and shared via the Fluke Energy Analyse Plus software. The data can be viewed at anytime meaning the testing doesn’t have to be completed for the results to viewed or analysed.

Ultimate Measurement Confidence

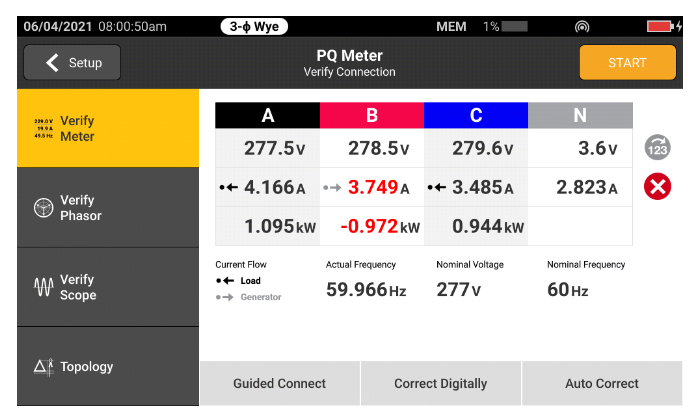

The Fluke 1770 series range offer a 2-in-1 devices that can combine troubleshooting functionality of a power quality meter with the robust analysis and data logging capabilities of a stand alone power quality analyser, in a single, handheld device that is simple and easy to use. Using the "PQ Meter" function gives the user an immediate access to live data in the field so that troubleshooting can be performed to help identify any potential problems. Using the "PQ Logging and Analysis" function, a step by step guide eliminates the the complexity of performing power quality studies. Using both these measurements with the unique measurement connection autocorrect function, the user is able to confidently ensure that there is no need to perform a second measurement, ensuring no time is wasted in the field.

Calculate Current Harmonics Limits

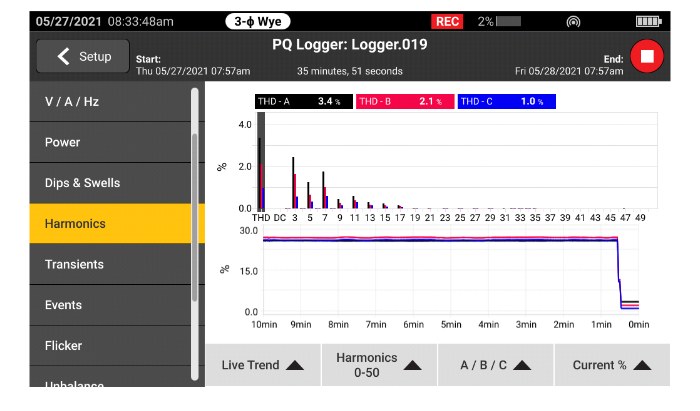

When downloading data from the 1770 series power quality analysers using the included Energy Analyse Plus Software users can compare voltage and harmonic data to different standards such as EN 50160 or IEEE 519 which allows the user to determine whether the test results exceed any compliance limits. Current harmonics can be observed before any distortion appears in the voltage, allowing the prevention of unexpected failures or non-complaint situations, an increase in system uptime and ensuring reliable power quality.

High-speed Voltage Transient Capture

Transients can negatively impact an otherwise healthy system and can potentially damage equipment. The Fluke 1775 and 1777 both incorporate advanced transient technology to help the user identify high speed voltage transients. The fluke 1775 has a 1MHz sampling capability to capture fast transients whilst the Fluke 1777 has a 20MHz sampling capability

Below, you will find a complete comparison chart outlining the key differences between each of the 1777’s kit variations.

  Fluke 1777 Basic Fluke 1777 Kit
Fluke 1777 Three-Phase Power Quality Analyser ✔ ✔
Includes 4 x Current Clamps: 17xx-Flex1500 24, Fluke-17xx IFLEX 1500   ✔
Fluke-17XX, Flat Cable, Voltage Test Lead 3-PHASE+N ✔ ✔
AC285, Black Alligator Clip (4x) ✔ ✔
AC285, Green Alligator Clip (4x) ✔ ✔
Black 1 M USB-C Cable ✔ ✔
Fluke-17XX 0.18 M Test lead set, nonstack/stack ✔ ✔
Green test lead ✔ ✔
MP1-3R/1B Magnet Probe 1, 3 red/1 black magnet probes for 4mm banana   ✔
Fluke 174X Hanger Kit   ✔
Fluke 177X 4204 WiFi/BLE Module   ✔
Cable marker set ✔ ✔
Fluke 174X-MA-C8 wall outlet adapter ✔ ✔
Statement of calibration practises ✔ ✔
Fluke 1777 hard carry case ✔ ✔

Fluke 177X Series Application Table

Applications Fluke 1773 Fluke 1775 Fluke 1777
Energy surveys and load testing ✔ ✔ ✔
Harmonic Surveys ✔ ✔ ✔
Nuisance circuit breaker tripping   ✔ ✔
Electric Utility Power Quality Surveys   ✔ ✔
Discovery of Equipment Failures Caused by 8kV mirco-second Transients   ✔ ✔
Discovery of Equipment Failures Caused by 8kV nano-second Transients     ✔

Fluke Premium Care Plan

The Fluke Premium Care Plan aims to reduce the cost of ownership of the Fluke 1777 Three-Phase Power Quality Analyser by eliminating the service and support charges, the Care Plan is available as a one year or three year option. The care plan includes one annual calibration per year at a Fluke Authorised Service Centre. If any accessories originally shipped with the Fluke 1777 are discovered to be defective, these will be replaced free of charge once a year under the care plan.

If the Fluke 1777 Three-Phase Power Quality Analyser is accidentally damaged, then repair of the tester will also be covered in the care plan, providing users with peace of mind should any unforeseen accidents happen.

With the Fluke Premium Care Plan the calibration, repair, collection and delivery of the Fluke 1777 will be expedited, reducing the downtime for the user.

Simply check the one year or three year service plan when placing your order, and your new analyser will be protected with Fluke premium care.

Standard warranty vs Fluke Premium care

  Standard Warranty Fluke Premium Care
Repair manufacturing defects ✔ ✔
Annual calibration   ✔
Accidental damage and repair of main unit   ✔
Expedited calibration and repair   ✔
Expedited freight   ✔
Replacement or repair of damaged accessories   ✔
Priority Tech Support   ✔

Specialists In Power Quality Analysers

Watch the video above to see how we can help you find the right power quality analyser & get in touch on 0113 248 9966 or sales@test-meter.co.uk.

As a leading provider of Power Quality Analysers and Energy Loggers in the UK, we've seen a measurable rise in the demand for monitoring power usage due to the ever-increasing push to reduce carbon footprints and energy bills.

Find the best solution for your application and budget through:

  • Onsite-demo/remote consultations on request
  • 'Try Before You Buy' and hire options available
  • After-sales care that provides ongoing calibration and servicing
  • Finding the optimal software package, ensuring the correct reporting and data functionality for your needs

If you need help finding the right power quality analyser or energy logger, please get in touch on 0113 248 9966 or sales@test-meter.co.uk

Key Features

  • Highest spec model of the 177X range
  • Includes 177X hard carry case
  • 1MS/s, 20 MS/s sampling rate
  • 1000 V Cat III/600V Cat IV overvoltage
  • 1000 V rms/1000 V dc (1700Vpk) maximum input voltage
  • Optimised UI, guided graphical setup
  • Slimeline design for storage inside machine cabinets
  • Draws power directly from measured unit
  • Instantly share data over WiFi

What's In The Box?

The Fluke 1777 Three-Phase Power Quality Analyser/BASIC includes:
  • Fluke 1777 Three-Phase Power Quality Analyser
  • Fluke 17XX flat cable voltage test lead 3-phase+N
  • AC285 black alligator clips (set of four)
  • AC285 green alligator clip
  • Black 1M USB-C cable
  • Line cords (US, EU, UK AUS, BRA)
  • FLK 17XX 0.18M test lead set
  • Green test lead
  • Cable marker set (for voltage and current)
  • Fluke 174X MA C8 wall outlet adapter
The Fluke 1777 Three-Phase Power Quality Analyser includes:
  • Fluke 1777 Three-Phase Power Quality Analyser
  • i17xx-Flex1500 24, Fluke-17xx IFLEX 1500 A 24 IN, 2.0M (4x)
  • Fluke 17XX flat cable voltage test lead 3-phase+N
  • AC285 black alligator clips (set of four)
  • AC285 green alligator clip
  • Black 1M USB-C cable
  • Line cords (US, EU, UK AUS, BRA)
  • FLK 17XX 0.18M test lead set
  • Green test lead
  • MP1-3R/1B Magnet Probe 1, 3 red/1 black magnet probes for 4mm banana
  • Fluke 174X Hanger Kit
  • Fluke 177X 4204, WiFi/BLE module
  • Cable marker set (for voltage and current)
  • Fluke 174X MA C8 wall outlet adapter
  • Fluke rolling hard case
Specification

Full specifications can be found in the downloadable data sheet at the bottom of the page.

  • Maximum input voltage: 1000V RMS/1000V DC (1700Vpk)
  • Current input number: 4 inputs 3 phases and Neutral, range selected automatically to attached sensor
  • Input mains frequency: DC, 50/60 Hz ±15 % (42.5 Hz … 57.5 Hz, 51 Hz … 69 Hz)
  • Interfaces: Ethernet, USB A/C WiFi, GPS
  • Warranty: 2 years (analyser)/1 year (accessories)
  • Calibration cycle: 2 years
  • Weight: 2.1kg
  • Dimensions: 28.0 cm x 19.0 cm x 6.2 cm (11.0 in x 7.5 in x 2.4 in)
Label Type Size Download
pdf Fluke 1770 Series Power Quality Analyser Data Sheet pdf 1.4 MB Download
