The FLIR E5 continues the ease of use available on FLIR’s latest edition of Thermal cameras. With a 120 x 90 Thermal resolution this camera is versatile enough to be used on a variety of applications. The E5 is extremely sensitive down to < 0.10°C thus granting it the ability to take images suitable for electrical, heating and plumbing inspections. The camera takes Thermal and digital images simultaneously, pairing them within the playback menu. This feature ensures an engineer can quickly reference the exact problematic area in any situation.

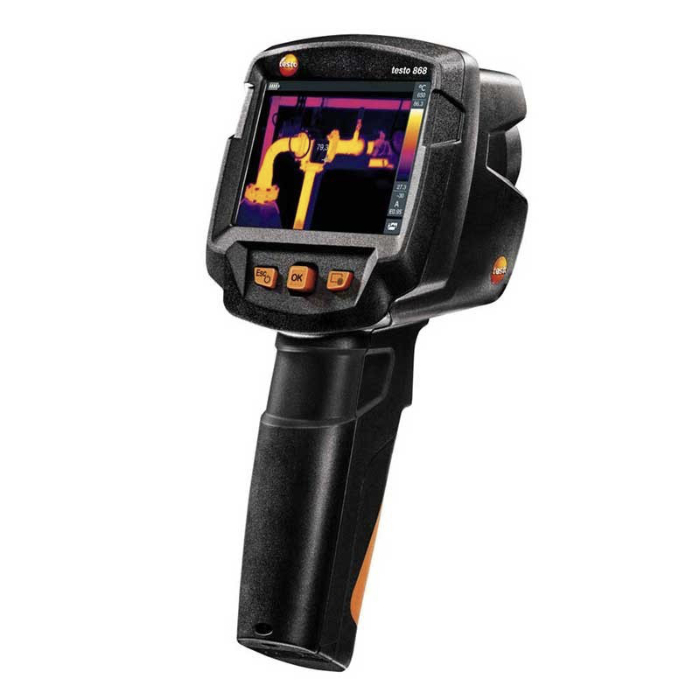

The Testo 868 Thermal Imaging Camera has several useful features which help the user make the most of its impressive thermographic capabilities. The non-contact infrared thermal sensor has a resolution of 160 x 120 pixels and measures temperature from -30˚C to 650˚C over two separate ranges. Thermal sensitivity is just 100mK meaning that temperature differences as small as 0.1˚C can be visualised on screen. The fixed-focus 31˚ x 23˚ field of view allows the user to make quick inspections over a large area while hot and cold spot recognition also highlights the extremes present on screen.

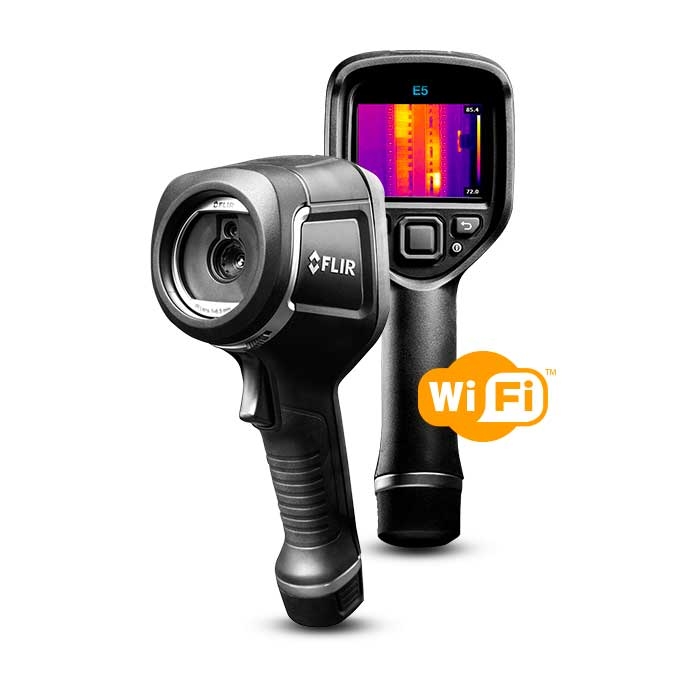

The FLIR E5-XT Thermal Imaging Camera is a useful tool for professionals working across a range of sectors including the electrical, mechanical and construction industries. It has an IR sensor with a thermal resolution of 160 x 120 pixels and a temperature measurement range of -20˚C to 400˚C. Readings are accurate to ±2˚C and it has a thermal sensitivity of 100mK, thus showing small temperature differences on screen.

The 3” colour display shows thermal images in black and white, iron and rainbow palettes. It has a 45˚ x 34˚ field of view and the FLIR E5-XT provides clear, focus-free imaging with a 9Hz image refresh rate. Centre spot measurement and area min/max measurement are available and Isotherm alarms can also be set whilst an inbuilt emissivity table allows the user to adjust measurement for surface type.

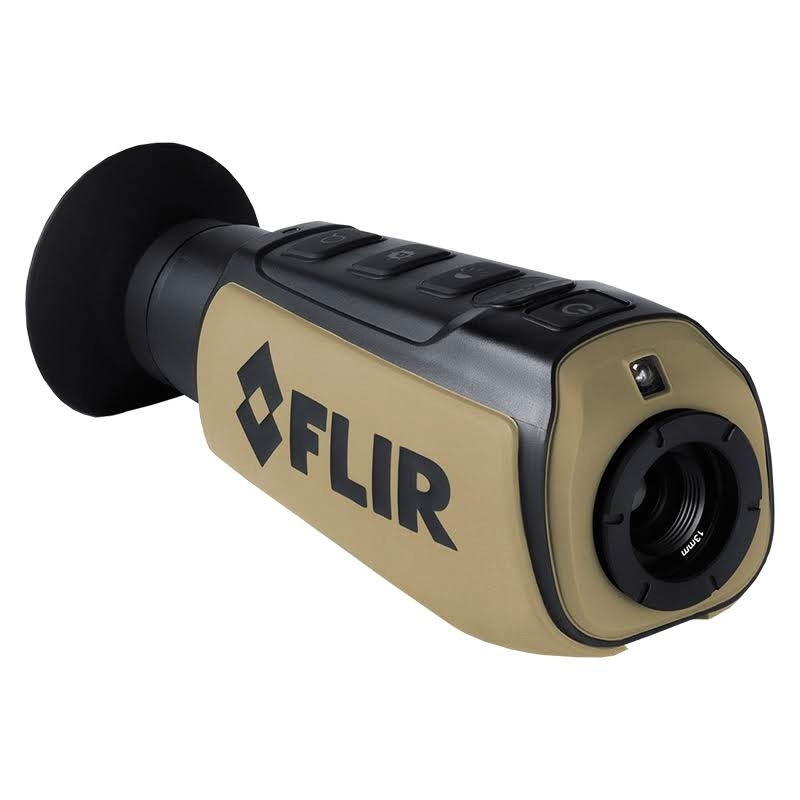

The FLIR Scout III 320 is designed for outdoor use, particularly in camping, hiking and hunting. It has a 336 x 256 pixel thermal sensor that is capable of detecting heat patterns from machines, humans, and animals from a distance of up to 550m away. Thermal sensitivity of just 0.05˚C allows small temperature differences to be depicted on the high resolution LCD display. Different palettes include black hot, white hot and InstAlert and the fixed focus lens always provides a clear image. The camera has a composite video output and it is practical, robust, and has a 5-hour battery life for use outdoors.

The Testo 872 Thermal Imaging Camera provides high-quality thermal images and video footage using its 320 x 240 pixel thermal sensor. The camera uses non-contact infrared temperature measurement which goes from -30˚C to 650˚C with an accuracy of ±2˚C or 2%. Thermal sensitivity of 60mK means that temperature differences of just 0.06˚C are visible on screen.

Images and video are shown on the Testo 872’s vibrant screen which has a wide range of different colour palettes and two levels of digital zoom. On-screen area measurement provides useful information to the user alongside automatic hot/cold spot recognition. An integrated laser marker and digital camera take visual images to go alongside thermal images, thus facilitating easier analysis after inspections have been carried out. The camera, featuring a surface moisture display, is suitable for detecting mould, leaks, thermal bridges and overheating components as well as a whole host of other applications.

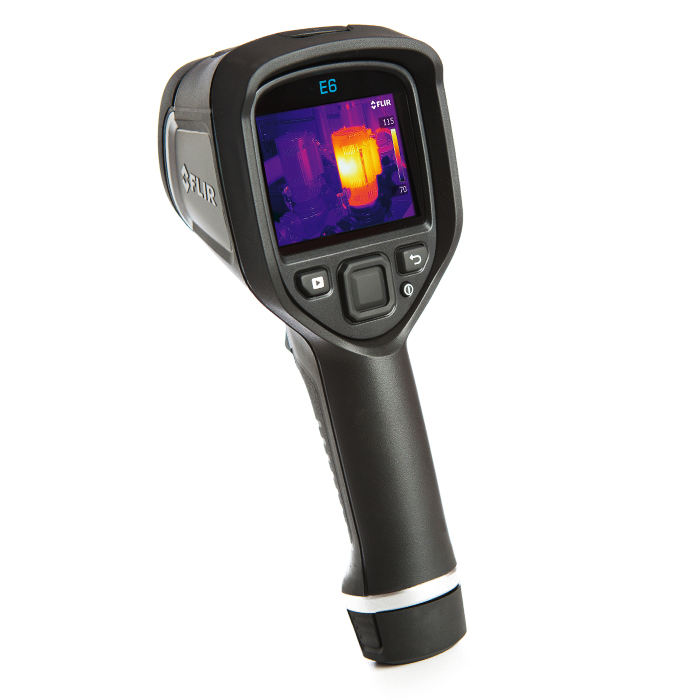

The FLIR E6-XT Thermal Imaging Camera has an infrared sensor with a thermal resolution of 240 x 180 pixels and thermal sensitivity of 100mK. The extended temperature measurement range of -20˚C to 550˚C means that the camera has multiple applications across a wide range of industries and readings are accurate to ±2˚C. A fixed focus, 45˚ x 34˚ field of view allows the user to scan large areas very efficiently.

Thermal images are shown on the FLIR E6-XT’s 3” colour screen and three different colour palettes available: black and white, rainbow, or iron. Notably, the thermal camera has an inbuilt digital camera which can produce a visual image to sit alongside thermographs. It is also used for picture-in-picture, image blending and FLIR’s trademark MSX® image enhancement feature. Above and below Isotherm alarms are available and the camera will give a centre spot temperature reading and min/max readings in a box area.

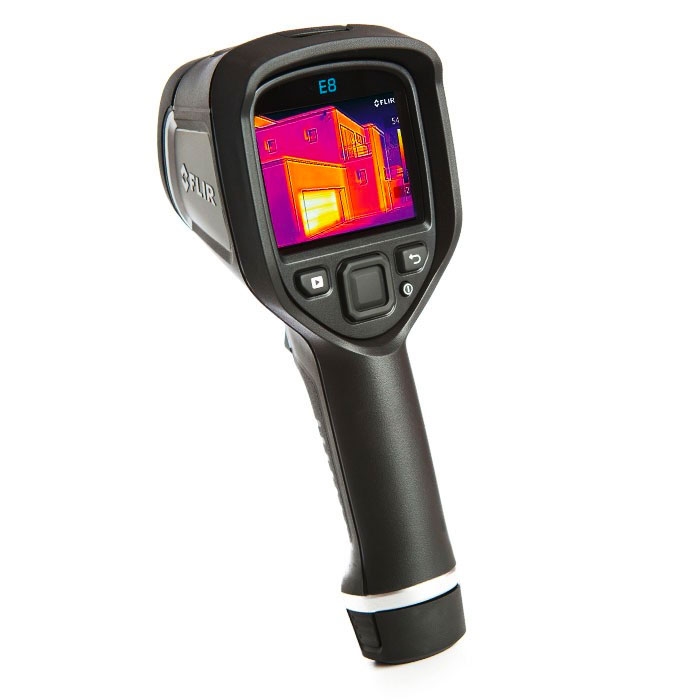

The FLIR E8-XT Thermal Imaging Camera is a simple point-and-shoot thermal imager that nevertheless has extremely high thermal resolution and excellent measurement capabilities. The thermal sensor has a resolution of 320 x 240 pixels with a measurement range of -20˚C to 550˚C. Thermal sensitivity of 50mK means that temperature differences of just 0.05˚C can be depicted on screen.

The FLIR E8-XT has a 3” colour LCD screen that can show thermal images in a number of different colour palettes. The lens has a field of view of 45˚ x 34˚ with fixed focus imaging and there are handy features such as centre spot measurement, min/max area readings, and Isotherm above/below alarms.

The FLIR E54 is a sophisticated thermal imaging camera with a resolution of 320 x 240 pixels and capable of measuring temperatures up to 650˚C. Featuring Patented FLIR MSX technology for enhanced image detail, it also boasts a large memory with a removable SD card as well as bluetooth and Wi-Fi wireless connectivity. With useful applications in building, electrical maintenance and moisture surveys, it's also FLIR Inspection Route enabled & compatible with FLIR Thermal Studio.

The FLIR E96 Advanced Thermal Imaging Camera is the pinnacle of the incredible FLIR Exx-Series, the first FLIR pistol-grip camera with a 640 x 480 thermal resolution plus FLIR UltraMax and MSX technology incorporated. Designed for quickly diagnosing electrical and mechanical failures while keeping the operator at a safe distance from potentially hazardous high-voltage targets.

With a temperature range up to 1500˚C and a thermal sensitivity/NETD of <30mK at 30˚C (86˚F), use the vibrant & easy-to-interpret captured images to accurately detect hot spots and hidden deficiencies invisible to the naked eye. For quickly & efficiently checking electrical or mechanical assets for signs of failure, the E96 comes complete with the option of interchangeable lenses. These FLIR AutoCal lenses featuring either a telephoto, standard, or wide angle field of view are ideal for surveying hot spots, surveying roofs or building envelopes exceedingly quickly.

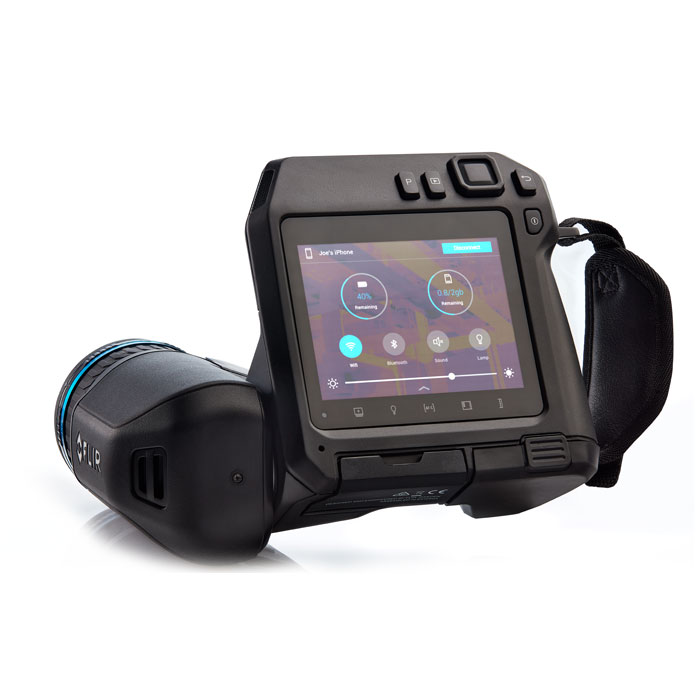

The FLIR T540 is an incredibly advanced thermal camera designed for professionals working in the power generation and distribution sectors as well as in industry and manufacturing. Alongside an excellent measurement range, thermal sensitivity and resolution, the T540 also boasts a rotating optical block which is really useful when performing inspections in awkward or challenging environments. Smart connectivity on the camera allows it to wirelessly transfer data to a smart device (via Wi-Fi) and link up with FLIR test and measurement equipment (via Bluetooth) to quantify observations seen in thermal images. The user can also add voice annotations during inspections. Three camera lenses are available with this camera: 14˚, 24˚ and 42˚.

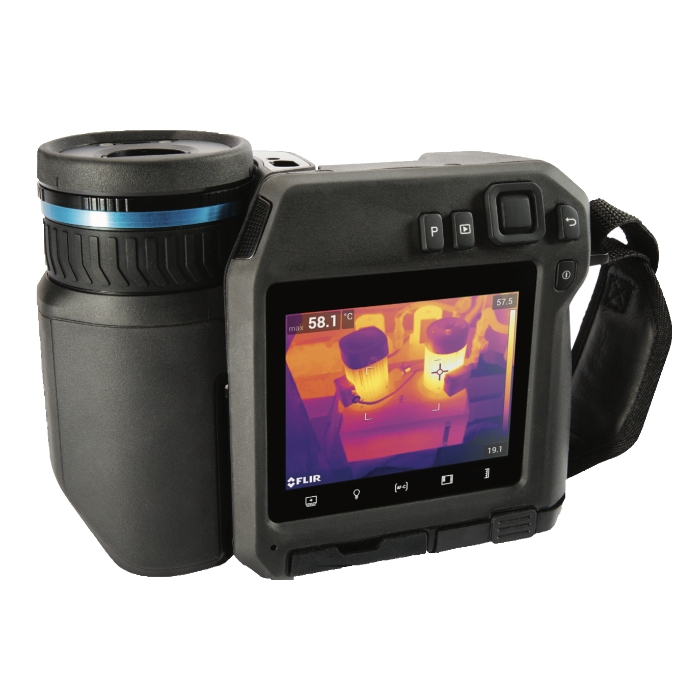

The FLIR T560 Thermal Imaging Camera can easily and comfortably diagnose electrical or mechanical problems, even in those hard-to-reach areas. With this high resolution 640 x 480 IR camera featuring 307,200 radiometric non-contact measurement points, find hidden faults, troubleshoot hot spots and confirm repairs. Corroborate the condition of repairs performed on an array of systems including power generators, manufacturing equipment and electrical transmission & distributers. Advanced imaging technology and high sensitivity help professionals scan large areas while maintaining a safe distance. This advanced camera includes a temperature range of -20˚C to 1500˚C, with results accurate to ±2˚C.

Assess equipment with the FLIR T560 and prevent component failure from any vantage point thanks to the 180˚ rotating lens platform and 1-8x continuous digital zoom. Boasting a bright 4" LCD display 33% brighter and with 4x the resolution of comparable cameras, the T560 is simple and easy to use.
