FLIR E5-XT Thermal Imaging Camera

SKU
FLIRE5XT
  • High-resolution 160 x 120 pixel infrared thermal sensor
  • Extended measurement range of -20˚C to 400˚C
  • Wireless communication and multiple analysis features
More Info
inc VAT £1,412.40 ex VAT £1,177.00
In Stock - Available Next Day
Choose Your Free Gift
FLIR Accessory Kit
Free
£109.00

Kit includes:

  • FLIR Ex Series Spare Battery

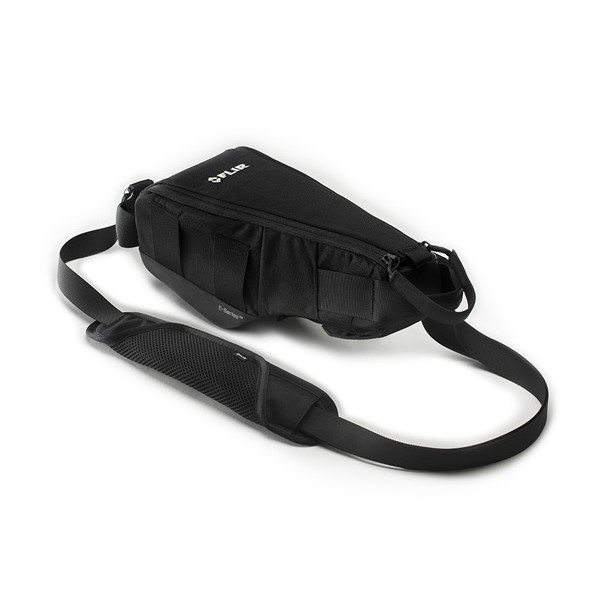

  • FLIR Ex Series Soft Carry Pouch
  • FLIR Ex Serries In-car charger
FLIR Accessory Kit
Free
£109.00
FLIR VT8-600 Electrical Tester
Free
£99.00
  • Measures voltage up to 600V and current up to 100A
  • 15.5mm fixed jaw clamp and simple one-handed operation
  • Non-contact voltage detection integrated into tester
FLIR DM64 HVAC TRMS Digital Multimeter
Free
£139.00
  • Measure AC/DC voltage, AC/DC current, frequency, resistance and capacitance
  • Suitable for HVAC applications with temperature and µA measurement
  • Advanced measurement features such as low resistance LoZ and VFD modes


Product Details

Spend over £1,000 on eligible Teledyne FLIR products and choose a free gift direct from the manufacturer.
Offer valid on purchases made between 1st June 2021 and 31st August 2021. Please click the banner above for more information.

FLIR E5-XT Thermal Imaging Camera

The FLIR E5-XT Thermal Imaging Camera is a useful tool for professionals working across a range of sectors including the electrical, mechanical and construction industries. It has an IR sensor with a thermal resolution of 160 x 120 pixels and a temperature measurement range of -20˚C to 400˚C. Readings are accurate to ±2˚C and it has a thermal sensitivity of 100mK, thus showing small temperature differences on screen.

The 3” colour display shows thermal images in black and white, iron and rainbow palettes. It has a 45˚ x 34˚ field of view and the FLIR E5-XT provides clear, focus-free imaging with a 9Hz image refresh rate. Centre spot measurement and area min/max measurement are available and Isotherm alarms can also be set whilst an inbuilt emissivity table allows the user to adjust measurement for surface type.

An integrated 640 x 480 pixel digital camera allows the user to see visual pictures alongside thermographs and enables FLIR’s patented MSX® image enhancement technology which adds extra detail to thermal images using the digital camera. Other display options include picture-in-picture and thermal blending.

The FLIR E5-XT has a sizeable onboard memory and saves thermal images alongside visible images in .jpeg format. Inbuilt Wi-Fi means that the thermal imager can communicate wirelessly with the user’s smartphone via the FLIR Tools® Mobile app, facilitating the distribution of images and reporting of findings. Data transfer to a PC is also possible through a USB connection.

One of the standout features of the FLIR E5-XT is the IP54 ingress protection rating that certifies that it is highly resistant to water and dust ingress. It is capable of withstanding a 2m drop and is highly shock resistant. The camera is supplied with a hard carry case, a rechargeable battery, charger and printed documentation.

FLIR part number: 63909-1004

  E5 E5-XT E6-XT E8-XT
Thermal resolution 120 x 90 pixels 160 x 120 pixels 240 x 180 pixels 320 x 240 pixels
Temperature range -20˚C to 250˚C -20˚C to 400˚C -20˚C to 550˚C -20˚C to 550˚C
Accuracy ±2% ±2% ±2% ±2%
Thermal sensitivity 100mK 100mK 100mK 50mK
Field of view 45˚ x 34˚ 45˚ x 34˚ 45˚ x 34˚ 45˚ x 34˚
Spotmeter
Min/max area readings
Hot/cold spot recognition
Isotherm colour alarms
Wi-Fi Connectivity

FLIR E5-XT Thermal Imaging Camera

The FLIR E5-XT Thermal Imaging Camera is a useful tool for professionals working across a range of sectors including the electrical, mechanical and construction industries. It has an IR sensor with a thermal resolution of 160 x 120 pixels and a temperature measurement range of -20˚C to 400˚C. Readings are accurate to ±2˚C and it has a thermal sensitivity of 100mK, thus showing small temperature differences on screen.

The 3” colour display shows thermal images in black and white, iron and rainbow palettes. It has a 45˚ x 34˚ field of view and the FLIR E5-XT provides clear, focus-free imaging with a 9Hz image refresh rate. Centre spot measurement and area min/max measurement are available and Isotherm alarms can also be set whilst an inbuilt emissivity table allows the user to adjust measurement for surface type.

An integrated 640 x 480 pixel digital camera allows the user to see visual pictures alongside thermographs and enables FLIR’s patented MSX® image enhancement technology which adds extra detail to thermal images using the digital camera. Other display options include picture-in-picture and thermal blending.

The FLIR E5-XT has a sizeable onboard memory and saves thermal images alongside visible images in .jpeg format. Inbuilt Wi-Fi means that the thermal imager can communicate wirelessly with the user’s smartphone via the FLIR Tools® Mobile app, facilitating the distribution of images and reporting of findings. Data transfer to a PC is also possible through a USB connection.

One of the standout features of the FLIR E5-XT is the IP54 ingress protection rating that certifies that it is highly resistant to water and dust ingress. It is capable of withstanding a 2m drop and is highly shock resistant. The camera is supplied with a hard carry case, a rechargeable battery, charger and printed documentation.

FLIR part number: 63909-1004





  160 x 120 pixel resolution
The FLIR E5 image resolution is 160 x 120 pixels, allowing a range of valuable thermal information to be displayed to isolate faults.

  Temperature Range & Accuracy
Detects 0.10°C temperature differences from -20 to 400°C with 2% accuracy.

  Wi-Fi Connectivity
Works with the free FLIR Tools Mobile app

  Built-in Digital Camera
Visible light camera captures images for comparison and quicker fault location on thermal images.

  Multi Spectral Dynamic Imaging (MSX)
New feature that overlays a digital image onto thermal image and thus providing greater visual detail.

  Picture-in-Picture
Overlays an infrared image onto a digital image to quickly locate faults and anomalies.

  Measurement Functions
Spotmeter and area with max/min.

  Thumbnail Gallery
Easy access gallery allows users to quickly review captured infrared imagery.

  Reporting & Analysis Software Included
FLIR Tools software is available for free download, allowing comprehensive inspection reports to be generated.



  E5 E5-XT E6-XT E8-XT
Thermal resolution 120 x 90 pixels 160 x 120 pixels 240 x 180 pixels 320 x 240 pixels
Temperature range -20˚C to 250˚C -20˚C to 400˚C -20˚C to 550˚C -20˚C to 550˚C
Accuracy ±2% ±2% ±2% ±2%
Thermal sensitivity 100mK 100mK 100mK 50mK
Field of view 45˚ x 34˚ 45˚ x 34˚ 45˚ x 34˚ 45˚ x 34˚
Spotmeter
Min/max area readings
Hot/cold spot recognition
Isotherm colour alarms
Wi-Fi Connectivity
What's In The Box?
  • FLIR E5-XT Thermal Imaging Camera
  • Hard transport case
  • Battery (inside camera)
  • USB cable
  • Power supply/charger with EU, UK, US and Australian plugs
  • Printed documentation
More Information
Specification
  • Detector Type: Uncooled microbolometer
  • IR Resolution: 160 × 120 pixels
  • List of Contents: Infrared camera, hard transport case, battery (inside camera), USB cable, power supply/charger with EU, UK, US and Australian plugs, printed documentation
  • Packaging Size: 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
  • Set-up Commands: Local adaptation of units, language, date and time formats
  • Spectral Range: 7.5–13 µm

COMPLIANCE & CERTIFICATIONS

  • Certifications: UL, CSA, CE, PSE and CCC

CONNECTIONS & COMMUNICATIONS

  • AC Operation: AC adapter, 90–260 VAC input, 5 VDC output to camera
  • Interface: USB Micro: Data transfer to and from PC and Mac device
  • WiFi: Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

ENVIRONMENTAL

  • EMC: •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
  • Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity
  • Operating Temperature Range: –15°C to 50°C (+5°F to 122°F)
  • Radio Spectrum: •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
  • Shock: 25 g (IEC 60068-2-27)
  • Storage Temperature Range: –40°C to 70°C (–40°F to 158°F)
  • Emissivity table/correction: Emissivity table of predefined materials/variable from 0.1 to 1.0
  • Encapsulation/Drop: IP 54 (IEC 60529)/2m (6.6 ft.)

IMAGING & OPTICAL

  • Camera size (L x W x H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
  • Camera weight incl battery: 0.575 kg (1.27 lb.)
  • Colour: Black and grey
  • Colour palettes: Black & white, iron, and rainbow
  • f-number: 1.5
  • Field of view (FOV): 45° × 34°
  • Focus: Focus free
  • Image Adjustment: Automatic adjust/lock image
  • Image Frequency: 9 Hz
  • Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
  • Minimum Focus Distance: 0.5 m (1.6 ft.)
  • Multi Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail
  • Picture-in-Picture: IR area on visual image
  • Spatial resolution (IFOV): 5.2 mrad
  • Digital Camera Resolution/FOV: 640 × 480/55° × 43°

MEASUREMENT & ANALYSIS

  • Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
  • Isotherm: Above alarm, below alarm
  • Object Temperature Range: –20°C to 400°C (-4°F to 752°F) in two ranges
  • Reflected apparent temperature correction: Automatic, based on input of reflected temperature
  • Spot Meter: Centre spot; box with min./max.
  • Thermal Sensitivity/NETD: <0.10°C (0.27°F) / <100 mK
  • Spotmeter and Area: Centre spot; box with min./max.

METER DATA

  • Display: 3.0 in. 320 × 240 color LCD

POWER

  • Charging system: Battery is charged inside the camera or in specific charger.
  • Charging Time : 2.5 hours to 90% capacity in camera. 2 hours in charger.
  • Power Management: Automatic shut-down
  • Battery type & operating time: Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use

STORAGE MEDIA

  • File Formats: Standard JPEG, 14-bit measurement data included
