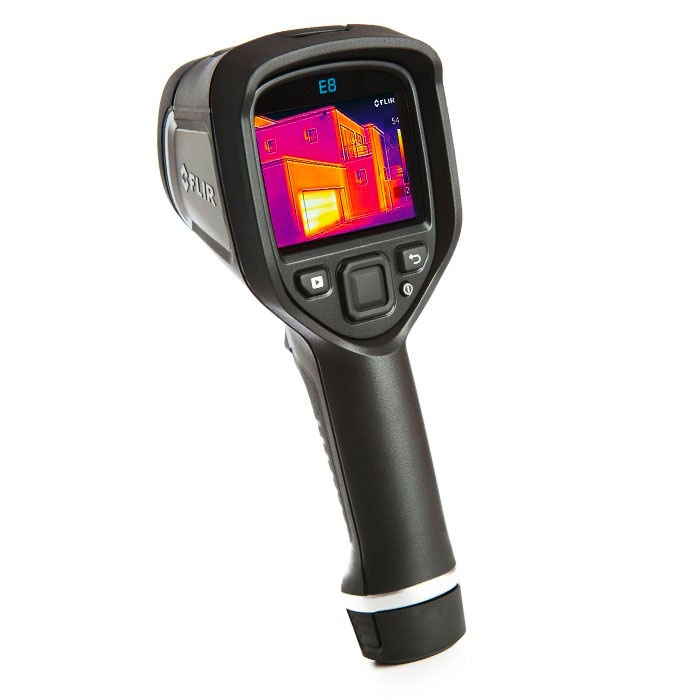

FLIR E8-XT Thermal Imaging Camera

FLIR
SKU: FLIRE8XT
  • High resolution thermal imaging over a temperature range of -20˚C to 550˚C
  • Thermal sensitivity of just 50mK with 9Hz image refresh rate
  • Wireless Wi-Fi communication allows data transfer to user's smartphone
More Info
Discontinued

FLIR E8-XT Thermal Imaging Camera

Please note that this product has now been discontinued, and replaced by the FLIR E8 Pro Thermal Imaging Camera.

The FLIR E8-XT Thermal Imaging Camera is a simple point-and-shoot thermal imager that nevertheless has extremely high thermal resolution and excellent measurement capabilities. The thermal sensor has a resolution of 320 x 240 pixels with a measurement range of -20˚C to 550˚C. A thermal sensitivity of 50mK means that temperature differences of just 0.05˚C can be depicted on screen.

The FLIR E8-XT has a 3” colour LCD screen that can show thermal images in a number of different colour palettes. The lens has a field of view of 45˚ x 34˚ with fixed focus imaging and there are handy features such as centre spot measurement, min/max area readings, and Isotherm above/below alarms.

The integrated digital camera on the FLIR E8-XT not only takes visible images to save alongside thermographs, but also enables a range of useful display options. These include picture-in-picture, thermal blending, and FLIR’s patented MSX® thermal image enhancement that imposes details from a visible picture onto a thermal image for greater clarity.

Files can be saved in .jpeg format in the FLIR E8-XT’s large onboard memory and then browsed using the camera’s gallery function. Data download can be performed using the USB port for PCs or via a wireless Wi-Fi connection to the user’s smartphone. The only requirement for wireless transfer is downloading the free FLIR Tools Mobile app, which also has useful analytics functions.

An IP54 ingress protection rating certifies that the FLIR E8-XT is highly resistant to damaging ingress and it is drop-tested to 2m. The thermal camera is supplied with a hard transport case, a rechargeable battery and a battery charger.

FLIR part number: 63908-0905

FLIR Ex-XT Series Comparison Table

  E5-XT E6-XT E8-XT
Thermal resolution 160 x 120 pixels 240 x 180 pixels 320 x 240 pixels
Temperature range -20˚C to 400˚C -20˚C to 550˚C -20˚C to 550˚C
Accuracy ±2% ±2% ±2%
Thermal sensitivity 100mK 100mK 50mK
Field of view 45˚ x 34˚ 45˚ x 34˚ 45˚ x 34˚
Spotmeter ✔ ✔ ✔
Min/max area readings ✔ ✔ ✔
Hot/cold spot recognition - ✔ ✔
Isotherm colour alarms - ✔ ✔
Wi-Fi Connectivity ✔ ✔ ✔

FLIR E8-XT Thermal Imaging Camera

The FLIR E8-XT Thermal Imaging Camera is a simple point-and-shoot thermal imager that nevertheless has extremely high thermal resolution and excellent measurement capabilities. The thermal sensor has a resolution of 320 x 240 pixels with a measurement range of -20˚C to 550˚C. Thermal sensitivity of 50mK means that temperature differences of just 0.05˚C can be depicted on screen.

The FLIR E8-XT has a 3” colour LCD screen that can show thermal images in a number of different colour palettes. The lens has a field of view of 45˚ x 34˚ with fixed focus imaging and there are handy features such as centre spot measurement, min/max area readings, and Isotherm above/below alarms.

The integrated digital camera on the FLIR E8-XT not only takes visible images to save alongside thermographs, but also enables a range of useful display options. These include picture-in-picture, thermal blending, and FLIR’s patented MSX® thermal image enhancement that imposes details from a visible picture onto a thermal image for greater clarity.

Files can be saved in .jpeg format in the FLIR E8-XT’s large onboard memory and then browsed using the camera’s gallery function. Data download can be performed using the USB port for PCs or via a wireless Wi-Fi connection to the user’s smartphone. The only requirement for wireless transfer is downloading the free FLIR Tools Mobile app, which also has useful analytics functions.

An IP54 ingress protection rating certifies that the FLIR E8-XT is highly resistant to damaging ingress and it is drop-tested to 2m. The thermal camera is supplied with a hard transport case, a rechargeable battery and a battery charger.

FLIR part number: 63908-0905

 E5E5-XTE6-XTE8-XT
Thermal resolution 120 x 90 pixels 160 x 120 pixels 240 x 180 pixels 320 x 240 pixels
Temperature range -20˚C to 250˚C -20˚C to 400˚C -20˚C to 550˚C -20˚C to 550˚C
Accuracy ±2% ±2% ±2% ±2%
Thermal sensitivity 100mK 100mK 100mK 50mK
Field of view 45˚ x 34˚ 45˚ x 34˚ 45˚ x 34˚ 45˚ x 34˚
Spotmeter ✔ ✔ ✔ ✔
Min/max area readings ✔ ✔ ✔ ✔
Hot/cold spot recognition     ✔ ✔
Isotherm colour alarms     ✔ ✔
Wi-Fi Connectivity   ✔ ✔ ✔



Key Features

  320 x 240 pixel resolution
The FLIR E8 resolution is 320 x 240 pixels, allowing a range of valuable thermal information to be displayed to isolate faults.

  Temperature Range & Accuracy
Detects 0.05°C temperature differences from -20 to 550°C with 2% accuracy.

  Built-in Digital Camera
Integrated camera captures images for comparison and quicker fault location on thermal images.

  Multi Spectral Dynamic Imaging (MSX)
Overlays a digital image onto thermal image and thus provides greater visual detail.

  Wi-Fi Connectivity
Connects camera to mobile devices so you can analyse stored images, and email findings quickly from the field. *Requires Free FLIR Tools Mobile App for Android and iPhone.

  Picture-in-Picture
Overlays an infrared image onto a digital image to quickly locate faults and anomalies.

  Measurement Functions
Spotmeter, area with max/min, hot & cold spot recognition with colour alarm.

  Thumbnail Gallery
Easy access gallery allows users to quickly review captured infrared imagery.

  Reporting & Analysis Software Included
FLIR Tools software is available for free download, allowing comprehensive inspection reports to be generated.

We know the importance of getting the right instrument for the job, so we now offer a "Try Before You Buy" option on many of our products to help you make a more informed buying decision. Simply give us a call or click here to find out more.

What's In The Box?

  • FLIR E8-XT Thermal Imaging Camera
  • Hard carry case
  • 2 x Li-on Rechargeable battery
  • Dual bay docking charger
  • Download lead/charging lead
  • Product documentation
  • Calibration document card
Specification

General

  • IR resolution: 320 × 240 pixels
  • Thermal sensitivity/NETD: < 0.05°C (0.09°F) / < 50 mK
  • Field of view (FOV): 45° × 34°
  • Minimum focus distance: 0.5 m (1.6 ft.)
  • Spatial resolution (IFOV): 2.6 mrad
  • F-number: 1.5
  • Image frequency: 9 Hz
  • Focus: Focus free

Detector data

  • Detector type: Focal plane array (FPA), uncooled microbolometer
  • Spectral range: 7.5–13 µm

Image presentation

  • Display: 3.0 in. 320 × 240 color LCD
  • Image adjustment: Automatic/Manual

Image presentation modes

  • Image modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
  • Multi Spectral Dynamic Imaging (MSX): IR image with enhanced detail presentation
  • Picture-in-Picture: IR area on visual image

Measurement

  • Object temperature range –20°C to +250°C (–4°F to +482°F); 10°C to 550°C (50°F to +1022°F)
  • Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F)

Measurement analysis

  • Spotmeter: Centre spot
  • Area: Box with max./min.
  • Isotherm: Above alarm, Below alarm
  • Emissivity correction: Variable from 0.1 to 1.0
  • Emissivity table: Emissivity table of predefined materials
  • Reflected apparent temperature correction: Automatic, based on input of reflected temperature

Set-up

  • Colour palettes: Black and white, iron and rainbow
  • Set-up commands: Local adaptation of units, language, date and time formats

Storage of images

  • File formats: Standard JPEG, 14-bit measurement data included

Digital camera

  • Digital camera, resolution: 640 × 480
  • Digital camera, FOV: 55° × 43°

Data communication interfaces

  • USB Micro: Data transfer to and from PC and Mac device
  • Wi-Fi: Peer-to-peer (ad hoc) or infrastructure (network)

Radio

  • Wi-Fi: • Standard: 802.11 b/g/n • Frequency range: ◦ 2400–2480 MHz ◦ 5150–5260 MHz • Max. output power: 15 dBm

Power system

  • Battery type: Rechargeable Li ion battery
  • Battery voltage: 3.6 V
  • Battery operating time: Approx. 4 hours at +25°C (+77°F) ambient temperature and typical use
  • Charging system: Battery is charged inside the camera or in specific charger.

Power system

  • Charging time: 2.5 hours to 90% capacity in camera. 2 hours in charger.
  • Power management: Automatic shut-down
  • AC operation: AC adapter, 90–260 VAC input, 5 VDC output to camera

Environmental data

  • Operating temperature range: –15°C to +50°C (+5°F to +122°F)
  • Storage temperature range: –40°C to +70°C (–40°F to +158°F)
  • Humidity (operating and storage): IEC 60068-2-30/24 h 95% relative humidity
  • EMC: • WEEE 2012/19/EC • RoHs 2011/65/EC • C-Tick • EN 61000-6-3 • EN 61000-6-2 • FCC 47 CFR Part 15 Class B
  • Radio spectrum: • ETSI EN 300 328 • FCC 47 CSR Part 15 • RSS-247 Issue 2
  • Encapsulation: IP 54 (IEC 60529)
  • Shock: 25 g (IEC 60068-2-27)
  • Vibration: 2 g (IEC 60068-2-6)
  • Drop: 2 m (6.6 ft.)

Physical data

  • Camera weight, incl. battery: 0.575 kg (1.27 lb.)
  • Camera size (L × W × H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in.)
  • Colour: Black and grey

Certifications

  • Certification: UL, CSA, CE, PSE and CCC

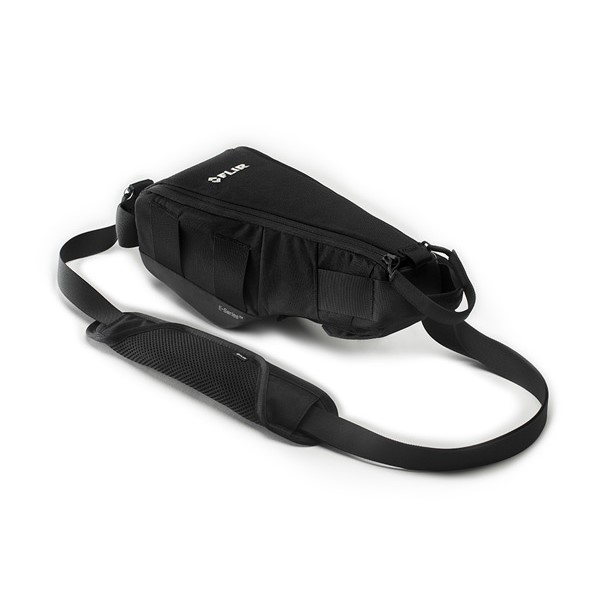

  1. Teledyne FLIR Pouch Case for Ex and Exx Series Frontal View
