Power Quality Analyser Hire

Showing 2 Items

  1. Features:

    • Measures voltage, frequency, power, energy, harmonics, transients, flicker, inrush & more
    • Handheld design with 5 voltage & 4 current channels
    • Large TFT screen & built-in memory
    • Battery life of approx. 13 hours
    • 10000 alarms
    • Peak detection

    £165.00+VAT per week

    Excludes £10 carriage charge each way (collection optional)

    The Chauvin Arnoux CA8336 Qualistar+ Power Quality Analyser provides a comprehensive snapshot of power quality and energy consumption, therefore helping to improve energy efficiency and reduce costs. The CA8336 features 5 voltage & 4 current channels, a large TFT screen & built-in memory, making it ideal for extended power quality analysis or swift one-off measurements. This handheld instrument is straight-forward to use and is available to hire with A193-450 10kA AC clamps (x4).

    --------------------------
    PLEASE NOTE: Energy loggers and power quality analysers require a sound electrical knowledge in order for them to be set up correctly in order for the correct parameters to be recorded on a specific electrical distribution system. We recommend that the user is competent of being able to identify any of the different electrical distribution systems found in the latest edition of BS7671 as well as being able to interpret the power recording properly.

  2. Features:

    • Install without power interruption
    • Map the electrical consumption onsite
    • Gain a real-time snapshot of consumption
    • Analyse electrical network quality
    • Record harmonics up to the 50th order
    • Record results to an SD card

    £95.00+VAT per week

    Excludes £10 carriage charge each way (collection optional)

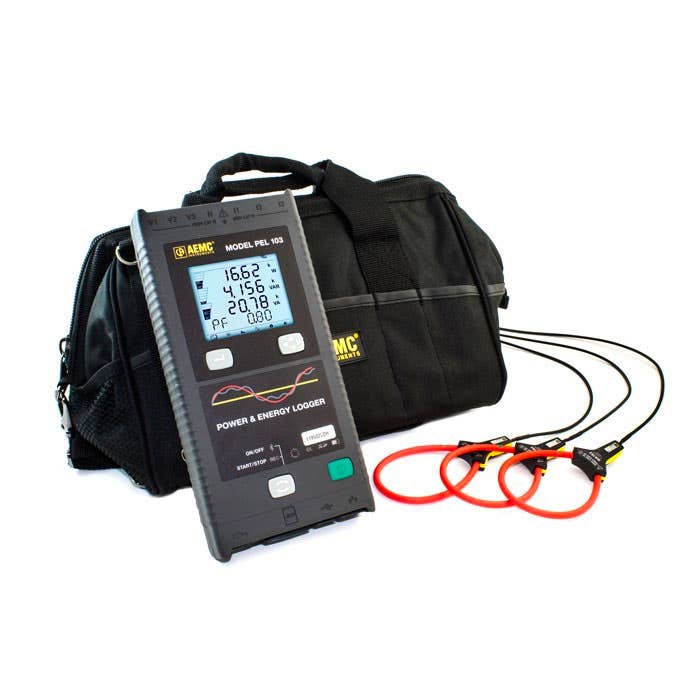

    The Chauvin Arnoux PEL103 Power Energy Logger is designed to measure and record the consumption of electrical installations in order to improve energy efficiency and reduce costs. Suitable for use on single-phase, split-phase and three-phase installations. Can be installed without cutting off the mains power supply. Map the electrical consumption on a site and gain a real-time snapshot of consumption. because the PEL 103 has a backlit 4-line LCD capable of clearly displaying readings in real-time.

    POWER QUALITY HEALTH CHECK: A power quality analysis service is availble that presents an easily-digestible report based on a file of one week's worth of surveys from the user's power quality analyser. With reports based on voltages and harmonics, the Health Check presents information in a traffic light format and even offers advice on managing energy consumption effectively. Click here for more. Available for £150.00+VAT.

    --------------------------
    PLEASE NOTE: Energy loggers and power quality analysers require a sound electrical knowledge in order for them to be set up correctly in order for the correct parameters to be recorded on a specific electrical distribution system. We recommend that the user is competent of being able to identify any of the different electrical distribution systems found in the latest edition of BS7671 as well as being able to interpret the power recording properly.

    A Windows PC or laptop is required to correctly set up the unit. This must be completed before the unit is used on an installation.
