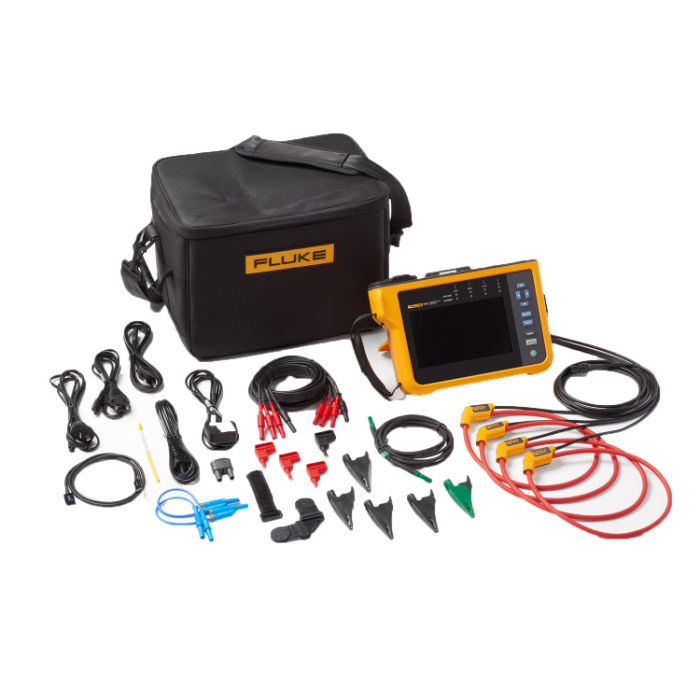

Fluke 1777 Three-Phase Power Quality Analyser Kit with Clamps

Fluke
SKU: FLUKE1777
  • Intelligent autocorrect function ensures you have the correct measurement connections every time
  • Instantly share data to PC for immediate decision making
  • Includes 1777 hard carry case
More Info
In Stock - Available Next Day

Fluke 1777 Three-Phase Power Quality Analyser

The Fluke 1777 Three-Phase Power Quality Analyser ensures you never miss a significant power quality event, measuring over 500 parameters from default. TRMS voltage and current, dips and swells, fast transients and harmonics can all be measured and instantly shared with colleagues using the 1777. The streamlined user interface and convenient touch-screen display make setting up and capturing the correct data easy and consistent, even when wearing gloves.

For more information about this product, please visit our Fluke 1777 page.

Key Features

  • Highest spec model of the 177X range
  • Includes 177X hard carry case
  • 1MS/s, 20 MS/s sampling rate
  • 1000 V Cat III/600V Cat IV overvoltage
  • 1000 V rms/1000 V dc (1700Vpk) maximum input voltage
  • Optimised UI, guided graphical setup
  • Slimeline design for storage inside machine cabinets
  • Draws power directly from measured unit
  • Instantly share data over WiFi
Specification

Full specifications can be found in the downloadable data sheet at the bottom of the page.

  • Maximum input voltage: 1000V RMS/1000V DC (1700Vpk)
  • Current input number: 4 inputs 3 phases and Neutral, range selected automatically to attached sensor
  • Input mains frequency: DC, 50/60 Hz ±15 % (42.5 Hz … 57.5 Hz, 51 Hz … 69 Hz)
  • Interfaces: Ethernet, USB A/C WiFi, GPS
  • Warranty: 2 years (analyser)/1 year (accessories)
  • Calibration cycle: 2 years
  • Weight: 2.1kg
  • Dimensions: 28.0 cm x 19.0 cm x 6.2 cm (11.0 in x 7.5 in x 2.4 in)
