Fluke T6-1000 Pro Electrical Tester

SKU: FLUKET610001
  • Measures AC/DC voltage (1000V), AC current (200A), resistance (100Ω)
  • FieldSense technology detects AC voltage, current & frequency without metal-to-metal contact with live voltage
  • Saves time by displaying voltage and current simultaneously on one screen
More Info
In Stock - Available Next Day

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

Fluke T6-1000 PRO Electrical Tester

The Fluke T6-1000 PRO Electrical Tester is a voltage and current meter with a number of impressive features. A single screen showing both voltage and current readings simultaneously allows users to save time when trouble shooting electrical equipment. Fluke’s FieldSense technology delivers one of the safest approaches to AC voltage, current and frequency measurement by removing the need for metal-to-metal contact with live voltage. In addition, the T6-1000’s Visual Continuity system provides immediate visual feedback, turning the screen bright green on detection. Visual Continuity is often invaluable in industrial environments, which can offer high noise levels or require hearing protection, making audible (beeper) continuity detection impractical. These features make this unit a safe and efficient choice for those looking for a complete electrical tester.

As a True-RMS device, the T6-1000 ensures accurate voltage and current measurements, even when measuring complex signals. Voltage measurements up to 1000V AC and current measurements up to 200A AC are supported, all through the open-fork FieldSense design. Connect the black lead to ground with the included heavy-duty alligator clip, slide the wire between the fork and see voltage and current displayed simultaneously, all without the need for test lead contact with live voltage.

With a jaw opening of 17.8mm, the T6-1000 supports wire gauges up to AWG 4/0. A clear, backlit display and a convenient HOLD button able to freeze screen values for easy viewing, make this tester a competitive choice for a range of environments. An extendable 2-4 year warranty also provides ample reassurance on Fluke’s commitment to quality.

Fluke T5 and T6 series Fluke Continuity, Current and Voltage Testers:

  Fluke T5-1000 Fluke T5-600 Fluke T6-600 Fluke T6-1000 Fluke T6-1000 Pro
Jaw Opening 12.9mm 12.9mm 17.8mm 17.8mm 17.8mm
Automatic Selection
Continuity Test
Visual Continuity
FieldSense Technology
True-rms Readings
Sleep Mode
AC Current Range RMS 0-100A 0-100A 0-200A 0-200A 0-200A
AC Voltage Range 0-1000V 0-600V 0-600V 0-1000V 0-1000V
DC Voltage Range 0-1000V 0-600V 0-600V 0-1000V 0-1000V
DC Voltage Accuarcy 1% ±1 count 1% ±1 count ±1% + 2 counts ±1% + 2 counts ±1% + 2 counts
Frequency Range 45Hz to 65Hz
Resistance Range 0 to 1000Ω 0 to 1000Ω 0 to 2000Ω 0 to 100kΩ 0 to 100kΩ
Display Count 1000 1000 1000 1000 1000
Dual Line Display-Simultaneous V+1, Hz
Safety Rating 1000V CATIII/ 600V VAT IV 600V VAT IV 600V CAT III/300V CAT IV 1000V CAT III/600V CAT IV 1000V CAT III/600V CAT IV
2 Year Warranty

Key Features

  • FieldSense Technology removes the need for metal-to-metal contact with live voltage, reducing risk of arc flash or shock
  • Simultaneous voltage and current display, saving users time when measuring
  • Visual Continuity feature enables continuity detection in loud and poorly lit environments
  • Voltage: 1-1000V AC
  • Current: 0.1- 200A AC
  • Resistance: 1Ω-100kΩ
  • Frequency: 45-66Hz
  • True-RMS voltage and current measurement
  • Screen hold function
  • Jaw opening of 17.8mm enables use with wires up to 4/0 AWG

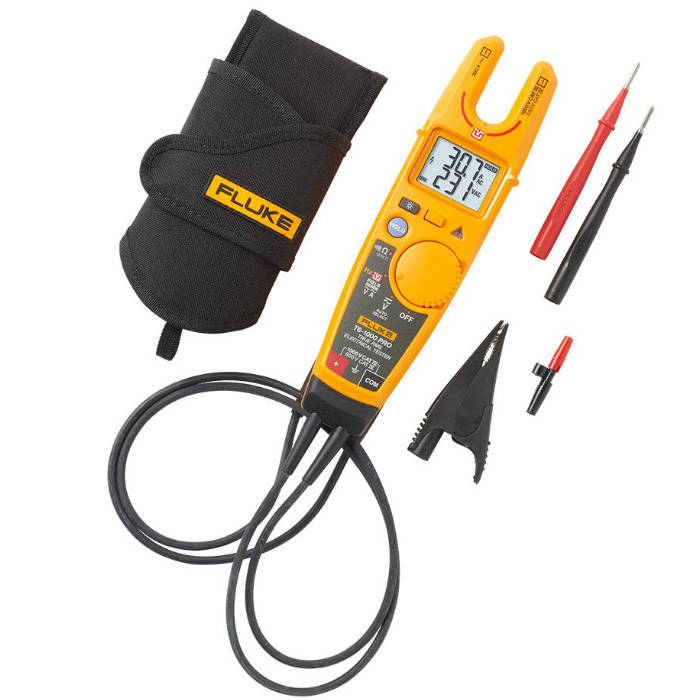

What's In The Box?

  • Fluke T6-1000 Pro Electrical Tester
  • Attached test leads with removable 4mm probe caps
  • Black AC285 SureGrip™ alligator clip
  • H-T6 holster
  • User documentation
Specification
    FieldSense AC Voltage
  • Requires test leads: No
  • Range: 1000V
  • Resolution: 1V
  • Accuracy: ±(3% + 3 counts) 45 Hz - 66Hz[1][2]
FieldSense AC Current
  • Requires test leads: No
  • Range: 200.0A
  • Resolution: 0.1A
  • Accuracy: ±(3% + 3 counts) 45Hz - 66Hz
  • FieldSense frequency (Hz)
    • Requires test leads: No
    • Range: 45Hz - 66Hz
    • Resolution: 1Hz
    • Accuracy ±(1% + 2 counts)
    Volts AC
    • Requires test leads: Yes
    • Range: 1000V
    • Resolution: 1V
    • ±(1.5% + 2 counts) 45Hz - 66Hz
    Volts DC
    • Requires test leads: Yes
    • Range: 1000V
    • Resolution: 1V
    • Accuracy: ±(1% + 2 counts)
    Resistance
    • Requires test leads (all ranges): Yes
    • Range: 2000Ω
    • Resolution: 1Ω
    • Range: 20.00kΩ
    • Resolution: 0.01kΩ
    • Range: 100.0kΩ
    • Resolution: 0.1kΩ
    • Accuracy (all ranges): ±(1% + 2 counts)
    General
    • Calibration: 1-year calibration cycle
    • Dimensions: 61mm x 259mm x 43mm
    • Weight: 0.35kg
    • Fork opening: 17.8 mm (0.7”)
    • Temperature: -10°C to +50°C (Operating) or -30°C to +60°C (Storage)
    • Altitude: 2,000m (Operating) 10,000m(Storage)
    • Relative humidity: 0% to 90% - 5 °C to 30°C , 0% to 75% - 30°C to 40 °C, 0% to 45% - 40°C to 50°C
    • Battery: 2 * AA (IEC LR6) - 360 hours of continuous use
    • Temperature coefficient: 0.1 x (specified accuracy) / °C for <18°C or >28 °C (< 64.4 °F or > 82.4 °F)
    • Safety: IEC 61010-1: Pollution Degree 2, IEC 61010-2-032: CAT IV 600V / CAT III 1000V
    • Electromagnetic compatibility: IEC/EN 61326-1 (Portable)
    Notes

    Accuracy[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC conversions are ac-coupled, RMS responding. Accuracy[2]: FieldSense specified from 16V to 1000V.
