Martindale MicroPAT Plus PAT Tester

Martindale
SKU: MARTMICROPATPLUS
Speeds up testing & downloading and allows user selection of pass levels.
More Info
Discontinued

Please note that this product has now been discontinued.

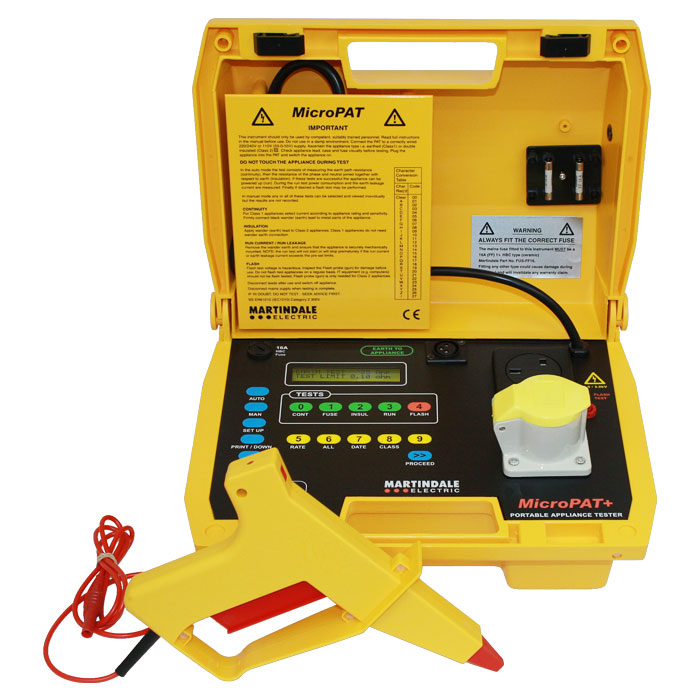

Martindale MicroPAT Plus PAT Tester

The Martindale MicroPAT+ is a downloading portable appliance tester for testing portable electrical equipment. The Micro PAT Plus PAT tester shows that simple dedicated push buttons for each test is the fastest way to do PAT testing. The alpha numeric tactile keypad is very simple to operate and step by step instructions are displayed on the custom LCD.

The MicroPAT + also has the ability to store test results and download these PAT testing results to a printer or a computer via dedicated software like SimplyPATs Version 7 Software. This PAT tester can check the electrical safety of electrical equipment like kettles, vacuums, toasters, fridges, computers, monitors, printers, fax machines, drills and angle grinders etc. The MicroPAT plus Performs earth bond, insulation and Leakage tests, it will test at either 230V or 110V, dependant on voltage. it has a smooth wipe clean industrial membrane keypad for ease of use. The MPAT has a flash test facility for Class 1 and Class II tools.This martindale PAT Tester can also perform load and run tests.

The MicroPAT can scan bar code labels to input appliance ID and test parameters using an optional bar code reader. The MicraPAT unit is housed in a tough injection moulded case with a detachable lid. The utmost importance has been placed upon specifying to the highest levels of safety, quality and reliability - BSEN50081, BSEN50082, EN61010 & IEC1010.

What's In The Box?

  • 500 Pass labels FREE
  • 200 Fail labels FREE
  • Removable strong earth bond lead
  • Flash test pistol probe with trigger
  • 110 volt adaptor
  • 230V Extension lead adaptor
  • Carry bag for accessories, attached to MicroPAT+
  • Spare fuses
  • Instruction manual
  • 24 months manufacturers warranty
Specification

Earth Continuity Test

  • Test Voltage: 6V AC nominal with no load.
  • Test Current: 25A AC nominal with 0.1O load.
  • (at 240V AC) 10A AC nominal with 0.5O load.
  • 100mA (soft test) for IT equipment.
  • Display Range: 0 to 1.99O.
  • Accuracy: ±10% ± 1 digit.

Insulation Test

  • Test Voltage: 500V DC - 0% + 20%.
  • Short Circuit Current: 1mA DC nominal.
  • Display Range: 0 to 19.9M½.
  • Accuracy: ±5% ±1 digit.

Run Test

  • Display Range: 0 to 3.1kVA.
  • Accuracy: ±10% ±1 digit at nominal 240V.

Earth Leakage Test

  • Display Range: 0 to 6mA AC.
  • Accuracy: ±10% ±1 digit.

Test

  • Test Voltage: 1.5kV AC - Class I
  • (at nom 240V AC) 3kV AC - Class II
  • Display Range: 0 to 3.0mA AC.
  • Accuracy: ±5% ±1 digit.

Case

  • Size: 330x263x144mm (Excluding bag)
  • Material: ABS/Polycarbonate
  • Colour: Yellow/Clear
  • Weight: 5.25kg nominal
