Megger PAT150 Landlords PAT Testing Kit

Megger
SKU: MEGGPAT150LKIT
  • Helps landlords demonstrate a proactive approach to electrical safety and appliance management
  • Battery-powered operation enables testing anywhere without mains power
  • Socket tester included for quick verification of socket wiring
More Info
Typically ships in 3-5 working days

Megger PAT150 Landlords PAT Testing Kit

The Megger PAT150 Landlords PAT Testing Kit is designed to help landlords, property managers and letting agents carry out professional appliance safety testing on electrical equipment supplied within rental properties. Combining the reliable Megger PAT150 PAT tester with a carefully selected range of accessories, this kit provides everything needed to inspect, test, record and label appliances in line with the IET Code of Practice.

The Megger PAT150 simplifies the process of regularly checking portable appliances to help maintain electrical safety standards with dedicated test sequences for Class I and Class II appliances, extension leads and Class III (SELV) equipment. Essential tests including earth continuity, insulation resistance and substitute leakage testing can be performed quickly and consistently, while additional mains-powered functions such as earth leakage, touch current and portable RCD testing offer greater confidence when assessing appliance condition.

Flexibility is built into the tester, allowing users to adjust pass limits and test durations to suit different applications. Bond lead resistance can be nulled to improve measurement accuracy, helping to deliver reliable results across a variety of appliance types. The PAT150 also features live circuit measurement for checking mains voltage and socket polarity, making it a practical tool for property inspections and maintenance visits. Its battery-powered operation removes the need for a nearby power supply, while the rugged rubber armour and toughened Gorilla glass construction ensure durability when travelling between multiple properties.

The included IEC Cloverleaf Adaptor extends testing capability to appliances fitted with cloverleaf power leads, commonly found on laptops, projectors and other electronic equipment often supplied within furnished accommodation. A Test Meter PRO socket tester allows landlords to quickly verify socket wiring before carrying out appliance tests, helping to identify basic wiring issues that could affect safety.

Accurate record keeping is supported by the supplied PAT register book and PAT certificate pad, making it easy to maintain clear testing documentation for compliance, maintenance records and tenant reference. The generous supply of pass labels, pass wrap labels and fail labels enables straightforward identification of tested equipment and helps maintain an organised appliance management system across multiple properties.

To further support safe working practices, the kit includes a PL13 230V 13A plug lockout and padlock. This allows faulty or unsafe equipment to be isolated from use while awaiting repair or replacement, helping to reduce the risk of accidental reconnection. Supplied in a durable Test-Meter kit bag, the entire kit remains protected, organised and ready for transport between properties.

Part number: PAT150

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Complies fully with the latest version of the IET Code of Practice
  • Simple pass fail indication & measurement with adjustable PASS limits
  • Rugged and hard wearing design
  • Rechargeable version available (Megger PAT150R)
  • Battery powered, portable design
  • Includes 250V Insulation testing for surge protected extension leads.
  • Automatic test sequences for Class I, Class II, Extension/Power leads
  • 10mA and 30mA Portable RCD lead testing options
  • Substitute and Mains powered leakage testing

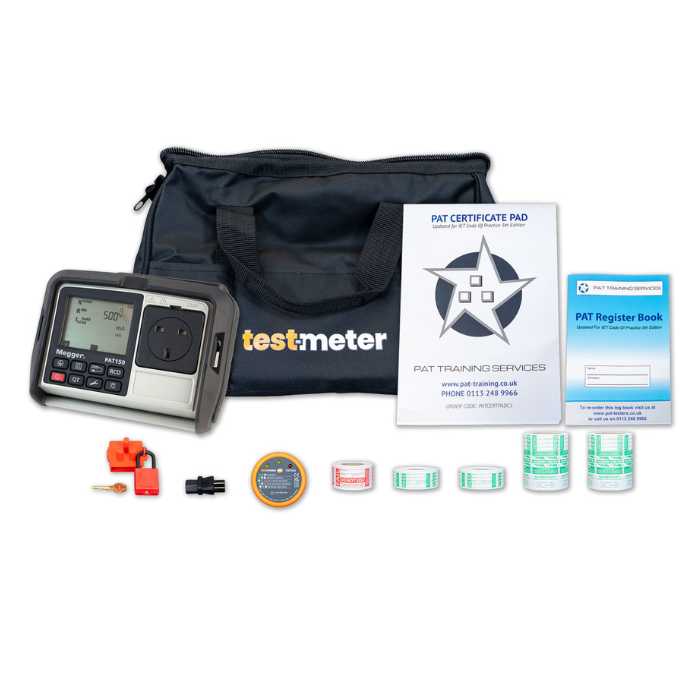

What's In The Box?

  • Megger PAT150 PAT tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Cloverleaf Adaptor
  • 2 x 500 Pass labels
  • 2x 250 Pass Wrap labels
  • 200 Fail labels
  • PL13 230V 13A Plug Lockout & Padlock
Specification

Environmental Conditions

  • Operating ambient: 20°C
  • Humidity: Nominal humidity

Continuity Test

  • Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
  • Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
  • Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
  • Resistance resolution: 10 mΩ
  • Display range: 0.01 to 19.99Ω
  • Continuity test nulling: up to 9.99 Ω
  • Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

  • Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
  • Short circuit/charge current: < 2mA dc
  • Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
  • Resolution: 0.01 MΩ
  • Display range: 0.10 MΩ to 99.99 MΩ
  • Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

  • Leakage current: Accuracy ± 5% ± 3 digits
  • Test frequency: Nominal mains frequency 50Hz
  • Test voltage: < 50V ac
  • Resolution: 0.01mA
  • Display range: 0.10 to 19.99mA
  • Test duration: User selectable from 2 sec to 5 seconds
  • Reading corrected to 230V ac.

Touch Current Test

  • Test voltage: Nominal mains 230 V ac
  • Test frequency: Nominal mains 50 Hz
  • Test accuracy: ± 5% ± 3 digits
  • Resolution: 0.01 mA
  • Display range: 0.10 to 3.99 mA
  • Test duration: User selectable from 2 sec to 5 sec

SELV Device Test

  • Test voltage: 0 to 300 V ac
  • Measurement accuracy: ± 3% ± 3 digits
  • Resolution: 0.1 V ac
  • Display range: 0.1 to 300 V ac

Extension Lead Test

Test includes Insulation and Bond tests.

  • Test voltage: 5V
  • Polarity: Lead OK, Live/neutral shorted, Live/neutral reversed, Live/neutral open circuit

Portable RCD Test

  • Test voltage: Nominal mains 230 V
  • Test frequency: 50Hz
  • Test current accuracy: +2% to +8% (1 x I, 5 x I)
  • Trip time accuracy: ±1% ± 1ms
  • Trip time resolution: 0.01ms
  • Display range: 0 to 200ms (1 x I), 0 to 40ms (5 x I)

Mains Supply Test

  • Frequency measurement range: 50 Hz
  • Test voltage: 40 to 300V ac
  • Accuracy: ± 3% ± 3 digits
  • Resolution: 0.1Vac
  • Display range: 40 to 300V ac

Circuit Test

Carried out automatically, not available to user.

  • Test voltage: 5V
  • Test frequency: Nominal Mains 50 Hz
  • Test current: < 100mA short circuit

Safety

  • Instrument designed to IEC 61010-1: 2012
  • Test leads designed to IEC 61010-031: 2005
  • 300 volts to Earth Category II
  • Mains fuse protection to 250 volts rms ac

EMC

  • Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

  • Operating temperature range: 0°C to +40°C
  • Storage temperature range: -20°C to +60°C
  • Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
  • Maximum altitude: 2,000m to full safety spec.
  • IP rating: IP40 (with front cover closed)

General

  • Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
  • Weight (PAT150 Only): 1300g
  • Weight (Shipping): 2795g / 2975g for PAT150R
  • Dimensions: 203 x 148 x 78mm
  • Megger Part Number: 1003-064 / 1003-428 (rechargable model)
