Megger PAT150R Contractors PAT Testing Kit

Megger
SKU: MEGGPAT150RCONKIT
  • Compatible with 110V and 415V equipment using suitable adaptors
  • Built-in battery charger recharges AA batteries without removal
  • Ideal for low to medium-volume PAT testing without complex data management
More Info

£655.00 (ex VAT)
£786.00 (inc VAT)

In Stock - Available Next Day

Megger PAT150R Contractors PAT Testing Kit

The Megger PAT150R Contractors PAT Testing Kit is designed with portability and simplicity in mind, performing all the essential electrical safety checks, including earth bond continuity, insulation resistance, polarity, and substitute leakage tests. Automatic test sequences for Class I and Class II appliances, as well as IEC and extension leads, help speed up routine testing and reduce the amount of manual input required.

For users who need more than just basic PAT testing, the PAT150R also offers portable RCD testing along with earth and touch leakage current measurements. Results are clearly displayed on the backlit digital screen, complete with straightforward PASS/FAIL indicators, making it quick and easy to assess equipment on the spot. The tester is suitable for Class I and Class II appliances, extension leads, power leads, and IT equipment, and can also be used with compatible 110V or 415V equipment when the appropriate adaptors are fitted.

Its rechargeable battery system make the PAT150R ideal for moving between appliances or testing equipment across multiple locations within a workplace. The built-in charger allows the AA batteries to be recharged without removing them from the tester, helping to minimise downtime between testing sessions.

As a manual PAT tester, the PAT150R does not have internal memory storage, so results need to be recorded separately in a suitable PAT testing logbook or on the supplied PAT certificate pad. This makes it particularly suitable for users who only need to test a manageable number of appliances rather than large-scale testing programmes requiring extensive electronic data storage.

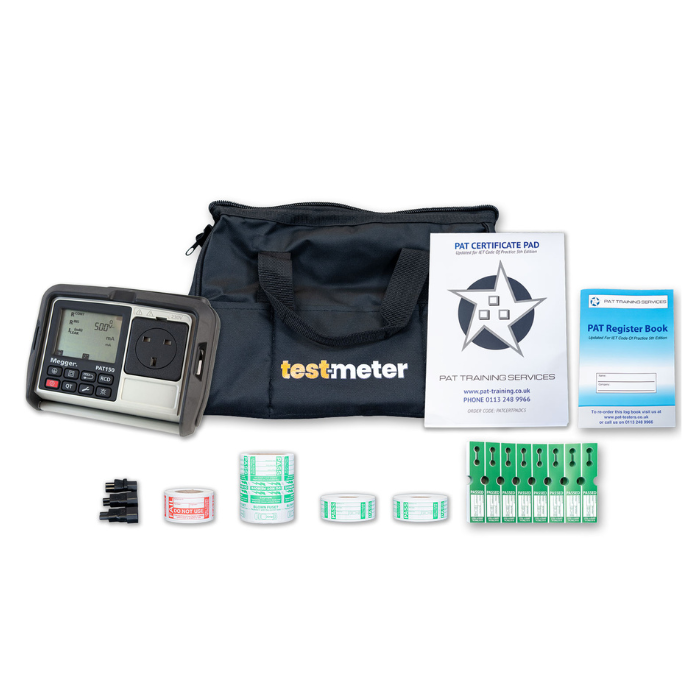

The kit also includes a range of useful accessories to support day-to-day testing, including an IEC adaptor, PAT certificate pad, two packs of 500 PASS labels, 250 PASS wrap labels, 200 FAIL labels, and 250 Tuff Tag cable wrap labels. Everything is supplied in a durable test meter kit bag, making it easy to keep your equipment organised and transport it between jobs.

PAT Testing Kit Comparison Guide



Small Business Kit

Contractors Kit

Landlords kit

Maintenance kit

Industrial kit

Test-Meter Kit Bag

✔

  ✔

✔

✔

x 2

PAT Register Book

✔

  ✔

✔

✔

✔

PAT Certificate Pad

✔

  ✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔



✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔

  ✔

✔

✔

500 Pass labels

x 2

  x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

  ✔

x 2

x 2

x 2

200 Fail labels

✔

  ✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels

    ✔

✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Performs essential PAT tests including earth bond, insulation resistance, polarity, and substitute leakage
  • Automatic test sequences for Class I and Class II appliances, IEC leads, and extension leads
  • Portable RCD testing capability
  • Measures earth leakage and touch leakage current
  • Clear PASS/FAIL indications on a backlit digital display
  • Suitable for testing Class I and Class II appliances, power leads, extension leads, and IT equipment
  • Compatible with 110V and 415V equipment when used with appropriate adaptors
  • Compact, lightweight design for easy transportation between test locations
  • Rechargeable AA battery system with built-in charger
  • Manual PAT tester ideal for low to medium-volume testing applications.
  • Includes IEC adaptor, PAT certificate pad, PASS and FAIL labels, Tuff Tag cable wrap labels, and carry bag
  • Durable test meter kit bag keeps accessories organised and protected

What's In The Box?

  • Megger PAT150R PAT Tester
  • IEC Adaptor
  • PAT Certificate Pad
  • 2 × 500 PASS Labels
  • 250 PASS Wrap Labels
  • 200 FAIL Labels
  • 250 Tuff Tag Cable Wrap Labels
  • Test Meter Kit Bag
Specification

Environmental Conditions

  • Operating ambient: 20°C
  • Humidity: Nominal humidity

Continuity Test

  • Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
  • Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
  • Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
  • Resistance resolution: 10 mΩ
  • Display range: 0.01 to 19.99Ω
  • Continuity test nulling: up to 9.99 Ω
  • Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

  • Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
  • Short circuit/charge current: < 2mA dc
  • Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
  • Resolution: 0.01 MΩ
  • Display range: 0.10 MΩ to 99.99 MΩ
  • Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

  • Leakage current: Accuracy ± 5% ± 3 digits
  • Test frequency: Nominal mains frequency 50Hz
  • Test voltage: < 50V ac
  • Resolution: 0.01mA
  • Display range: 0.10 to 19.99mA
  • Test duration: User selectable from 2 sec to 5 seconds
  • Reading corrected to 230V ac.

Touch Current Test

  • Test voltage: Nominal mains 230 V ac
  • Test frequency: Nominal mains 50 Hz
  • Test accuracy: ± 5% ± 3 digits
  • Resolution: 0.01 mA
  • Display range: 0.10 to 3.99 mA
  • Test duration: User selectable from 2 sec to 5 sec

SELV Device Test

  • Test voltage: 0 to 300 V ac
  • Measurement accuracy: ± 3% ± 3 digits
  • Resolution: 0.1 V ac
  • Display range: 0.1 to 300 V ac

Extension Lead Test

Test includes Insulation and Bond tests.

  • Test voltage: 5V
  • Polarity: Lead OK, Live/neutral shorted, Live/neutral reversed, Live/neutral open circuit

Portable RCD Test

  • Test voltage: Nominal mains 230 V
  • Test frequency: 50Hz
  • Test current accuracy: +2% to +8% (1 x I, 5 x I)
  • Trip time accuracy: ±1% ± 1ms
  • Trip time resolution: 0.01ms
  • Display range: 0 to 200ms (1 x I), 0 to 40ms (5 x I)

Mains Supply Test

  • Frequency measurement range: 50 Hz
  • Test voltage: 40 to 300V ac
  • Accuracy: ± 3% ± 3 digits
  • Resolution: 0.1Vac
  • Display range: 40 to 300V ac

Circuit Test

Carried out automatically, not available to user.

  • Test voltage: 5V
  • Test frequency: Nominal Mains 50 Hz
  • Test current: < 100mA short circuit

Safety

  • Instrument designed to IEC 61010-1: 2012
  • Test leads designed to IEC 61010-031: 2005
  • 300 volts to Earth Category II
  • Mains fuse protection to 250 volts rms ac

EMC

  • Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

  • Operating temperature range: 0°C to +40°C
  • Storage temperature range: -20°C to +60°C
  • Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
  • Maximum altitude: 2,000m to full safety spec.
  • IP rating: IP40 (with front cover closed)

General

  • Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
  • Weight (PAT150 Only): 1300g
  • Weight (Shipping): 2795g / 2975g for PAT150R
  • Dimensions: 203 x 148 x 78mm
  • Megger Part Number: 1003-064 / 1003-428 (rechargable model)
