- 1 × 3 m lead set with medium, insulated clips (rated for 5 kV use)
- 1 × 3 m lead set with large, insulated clips (rated for 10 kV use)
- Screened USB cable with filters
- Remote control indicator beacon
- Power lead
- Quick start guide
- CertSuite Asset Lite software access
Megger S1-1068/2 Expert 10kV HV Insulation Resistance Tester
SKU: MEGGS110682
- Offers high voltage testing up to 10kV
- Has up to 8mA noise rejection with advanced adaptive filter
- Supports a wide range of insulation diagnostic tests such as PDC, SV, DD, DAR & Ramp
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
£4,785.00
£5,742.00
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

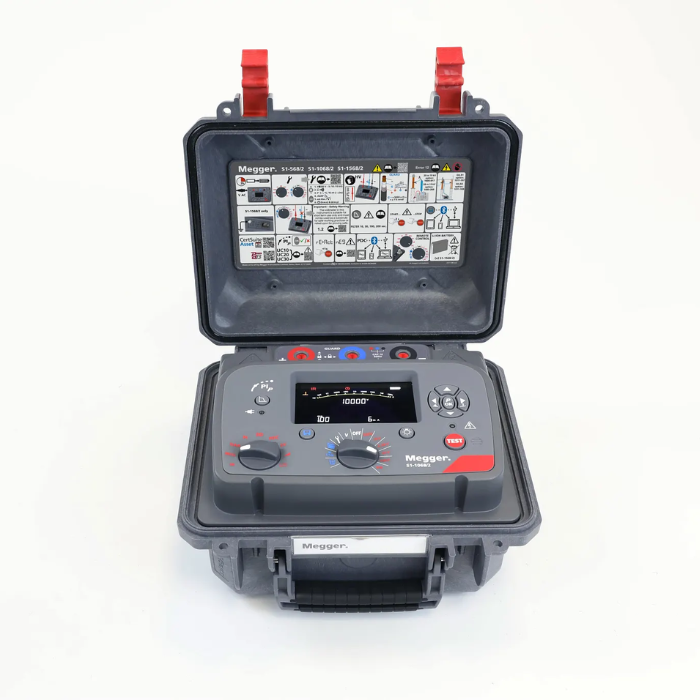

Megger S1-1068/2 Expert 10kV HV Insulation Resistance Tester
The Megger S1-1068/2 Expert 10kV HV Insulation Resistance Tester combines the full suite of features from Megger’s Essential and Advanced ranges along with additional capabilities to provide professionals working in high-voltage environments with a reliable instrument that is capable of measuring insulation resistance measurements of up to 10kV.
The S1-1068/2 supports a wide range of insulation diagnostic tests, including Polarisation Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Step Voltage (SV), Ramp Test, and Polarisation Dependent Current (PDC). It also includes Megger's patented PI Predictor (Plp), which estimates PI results early in the test cycle. The RE>Act mode improves measurement reliability by detecting and compensating for reabsorption currents, making sure that insulation faults are not masked by residual charge. The S1-1068/2 offers selectable test voltages from 250V to 10kV and a resistance measurement range of up to 35TΩ, making it suitable to use across varied applications.
The S1-1068/2 boasts superior noise rejection that can operate effectively with interference levels as high as 8mA, perfect for use in electrically noisy environments. Additionally, the adaptive filtering and high-voltage noise suppression make it ideal for use in substations and transmission yards where traditional testers may struggle. Users are able to conduct tests from a safe distance thanks to the remote operation via USB, which improves safety in hazardous conditions. Plus, the S1-1068/2 also supports real-time data streaming and logging, with time- and date-stamped results transferable via USB or Bluetooth® to Megger’s CertSuite Asset or PowerDB software for seamless asset management and reporting.
Safety was important when it came to the design of the S1-1068/2, as it boasts a CAT IV 600V rating up to 3000 metres altitude, reinforced insulation, a five-tier voltage warning system, and a dual-case construction with a shock-resistant outer shell and fire-retardant inner casing. To ensure longevity and safety in all environments, the S1-1068/2 is IP65 rated when the lid is closed, protecting it against dust and moisture ingress, as well as operates reliably in temperatures ranging from -20°C to +50°C.
In terms of performance, the S1-1068/2 delivers resistance accuracy of ±5% up to 2TΩ and ±20% up to 20 TΩ and supports current measurements from 0.01mA to 6mA and capacitance measurements from 10nF to 25µF with ±10% accuracy. The S1-1068/2 can either be powered by a rechargeable battery or AC mains, with a quick-charge feature allowing for one hour of operation after only 30 minutes of charging. It comes with a battery life that supports up to 4.5 hours of continuous testing at 10kV with a 100MΩ load.
The Megger S1-1068/2 includes two sets of 3 metre test leads, one with medium insulated clips and the other with large insulated clips, designed for safe and reliable connection to a variety of test pieces. It also includes a screened USB cable with filters, a remote control indicator beacon, and a free license for CertSuite Asset Lite software.
Comparing the Megger Essential, Advanced & Expert Ranges
| Feature | Essential Range MIT1015 MIT515/2 |
Advanced Range MIT525/2 MIT1025/2 MIT1525/2 |
Expert Range S1-568/2 S1-1068/2 S1-1568/2 |
| High Guard Termial Performance | ✔ | ✔ | ✔ |
| IR | ✔ | ✔ | ✔ |
| IR(t) | ✔ | ✔ | ✔ |
| PI Polirasation Index | ✔ | ✔ | ✔ |
| PI Predictor | ✔ | ✔ | ✔ |
| DAR Dielectric Absorption Ratio | ✔ | ✔ | ✔ |
| DD Dielectric Discharge | ✔ | ✔ | |
| Ramp Test | ✔ | ✔ | |
| RE>Act mode | ✔ | ✔ | ✔ |
| PDC test | ✔ | ✔ | |
| Max. voltage available | 5kV or 10kV | 5kV, 10kV or 15kV | 5kV, 10kV or 15kV |
| Default maximum current | 3mA | 3mA | 6mA |
| User selectable max. current values | n/a | 1mA, 3mA, 6mA (6mA only from main supply) | 1mA, 2mA, 3mA, 4mA, 5mA, 6mA (6mA from internal battery and mains supply |
| Max. noise current with measurement withing accuracy spec. | 3mA (LV and MV <45kV) | 6mA (HV <230kV) | 8mA (EHV <1000kV) |
| Adaptive filter | ✔ | ||
| Negative current handling | ✔ | ✔ | ✔ |
| Averaging filter | ✔ | ||
| CAT IV 1000V | ✔ | ✔ | |
| CAT IV 600V | ✔ | ✔ | ✔ |
| Hazardous peak voltage detection during IR measurement | ✔ | ✔ | |
| On-board - time stamped | ✔ | ✔ | |
| Temperature value stored | ✔ | ✔ | |
| Humidity value stored | ✔ | ||
| Test results transfer via wired USB | ✔ | ✔ | |
| Test result transfer via wireless Bluetooth LE | ✔ | ✔ | |
| Test result live streaming via wired USB | ✔ | ✔ | |
| Test result live streaming via wireless Bluetooth LE | ✔ | ✔ | |
| Remote control via wired USB | ✔ | ||
| New custom colour display | ✔ | ✔ | ✔ |
| Carry all holdall | ✔ | ✔ | ✔ |
| Deeper lid pouch | ✔ | ✔ | ✔ |
| CertSuite Asset Lite compatible | ✔ | ✔ | |
| CerSuite Assert compatible | ✔ | ✔ | |
| Power DB Lite supplied free | ✔ | ✔ | |
| Power DB Advance or Pro support | ✔ | ✔ |
part number: 1016-112
Key Features
- Test voltage range from 250V to 10,000V
- Resistance range from 10kΩ to 35TΩ
- Capacitance range: 10nF to 25µF
- ±5% accuracy up to 2TΩ at 10kV
- RE>Act mode and PI Predictor
- PDC, SV, DD, DAR, Ramp test capabilities
- Remote control via USB
- CAT IV 600V safety rating up to 3000 m altitude
- IP65 rated (lid closed)
- Dual-case design
- CertSuite Asset Lite compatible
What's In The Box?
|
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
Megger Expert Range Preview | 3 MB | Download |
-
-
-
Megger 5m HV Insulation Test Lead Set with 6kV Medium Clips (1002-641) SKU: MEGG1002641£147.00 (ex VAT)£176.40 (inc VAT) -
Megger 10m HV Insulation Test Lead Set with 6kV Medium Clips (1002-643) SKU: MEGG1002643£228.00 (ex VAT)£273.60 (inc VAT) -

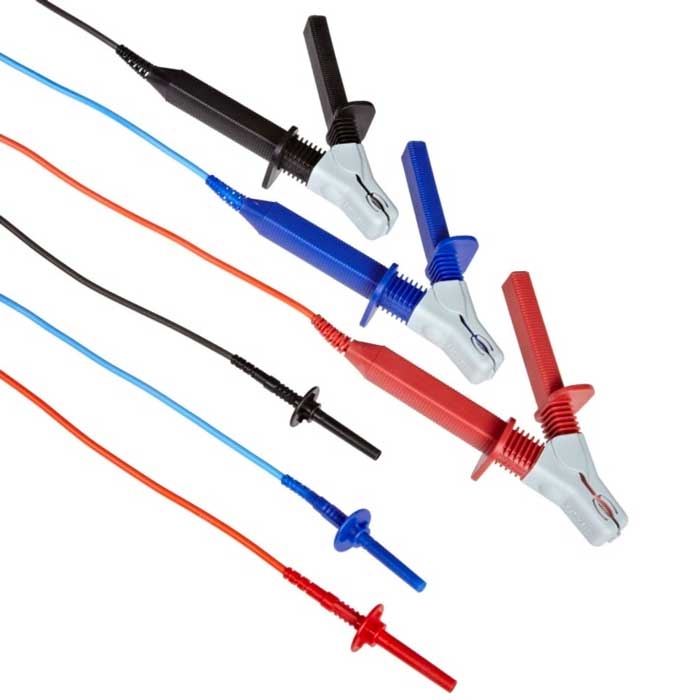

Megger 15m HV Insulation Test Lead Set with 6kV Medium Clips (1002-644) SKU: MEGG1002644£315.00 (ex VAT)£378.00 (inc VAT) -
Megger 3m HV Insulation Test Leads with 10kV Large Clips (1002-534) SKU: MEGG1002534£135.00 (ex VAT)£162.00 (inc VAT) -

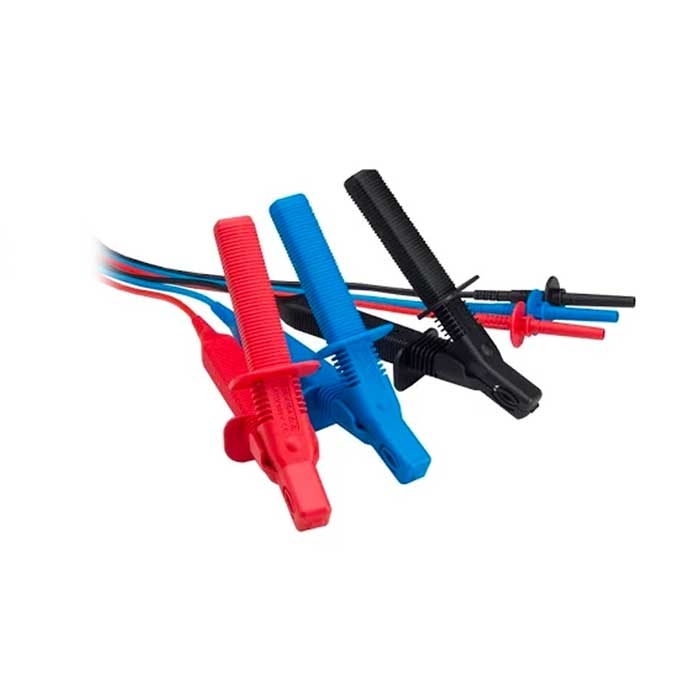

Megger 5m HV Insulation Test Leads with 10kV Large Clips (1002-645) SKU: MEGG1002645£179.00 (ex VAT)£214.80 (inc VAT) -
Megger 8m HV Insulation Test Leads with 10kV Large Clips (1002-646) SKU: MEGG1002646£230.00 (ex VAT)£276.00 (inc VAT) -

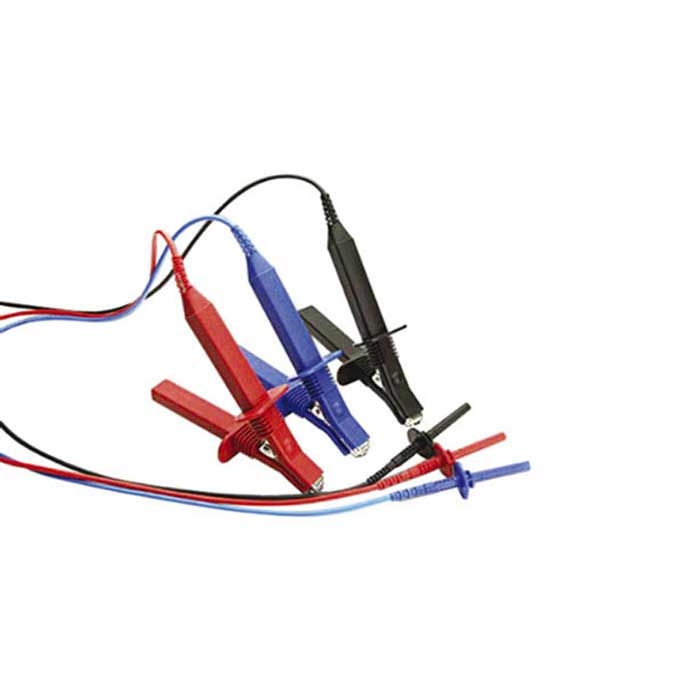

Megger 10m HV Insulation Test Leads with 10kV Large Clips (1002-647) SKU: MEGG1002647£240.00 (ex VAT)£288.00 (inc VAT) -
Megger 15m HV Insulation Test Leads with 10kV Large Clips (1002-648) SKU: MEGG1002648£335.00 (ex VAT)£402.00 (inc VAT) -
Megger 25m HV Insulation Test Leads with 10kV Large Clips (1003-201) SKU: MEGG1003201£380.00 (ex VAT)£456.00 (inc VAT) -

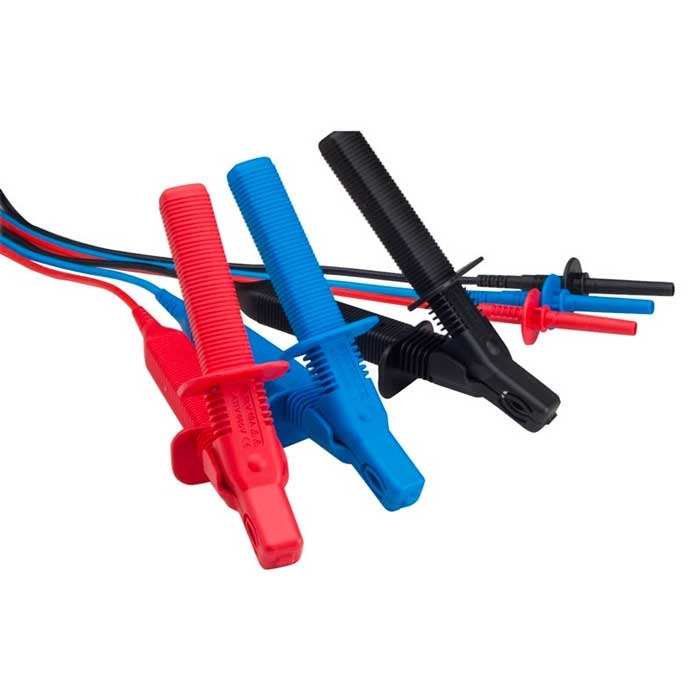

Megger 30m HV Insulation Test Leads with 10kV Large Clips (1003-202) SKU: MEGG1003202£450.00 (ex VAT)£540.00 (inc VAT) -

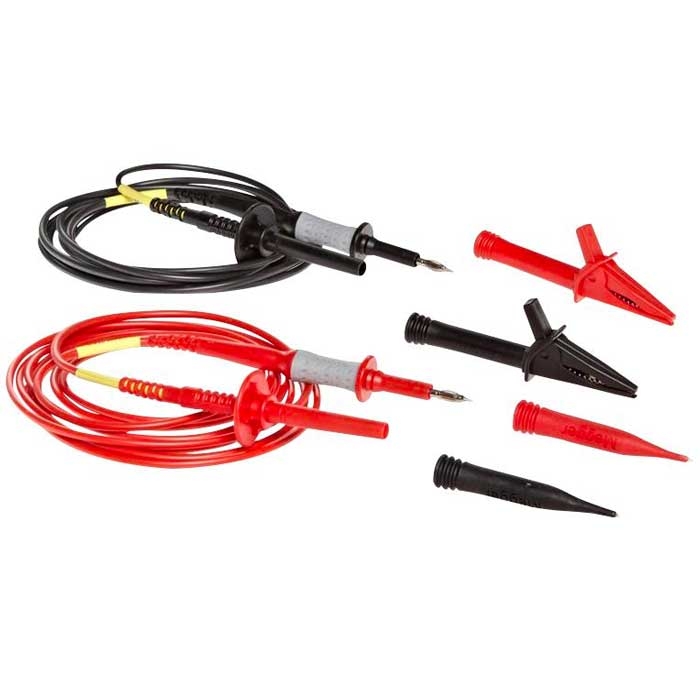

Megger 1kV Control Circuit Test Lead Set (6220-822) SKU: MEGG6220822£105.00 (ex VAT)£126.00 (inc VAT) -

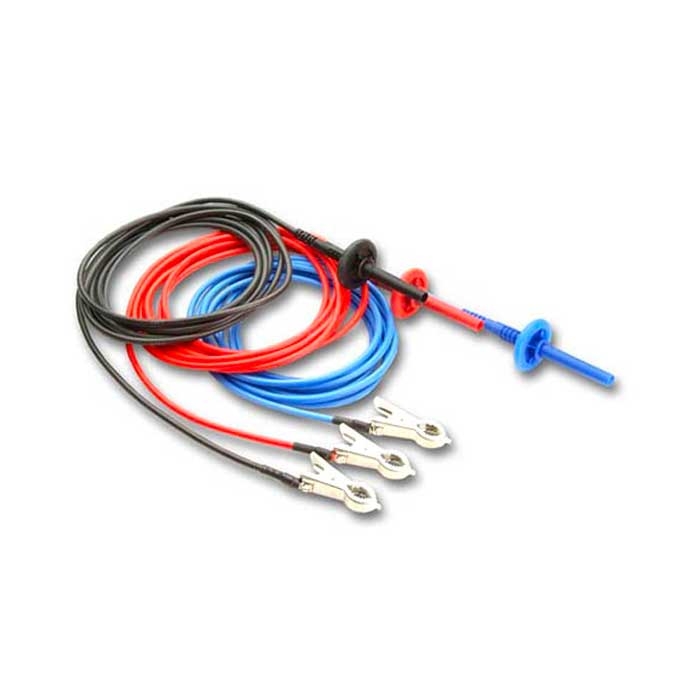

Megger 3m 10kV Shielded HV Insulation Test Leads (6220-834) SKU: MEGG6220834£385.00 (ex VAT)£462.00 (inc VAT) -
