Testo 830-T2 Infrared Thermometer

SKU: TESTO830T2-CONF
  • Non-contact infrared surface temperature measurement from -30˚C to 400˚C
  • Compatible with type K thermocouple for more accurate measurement
  • Distance-to-spot ratio of 12:1 allows measurement from a distance
More Info

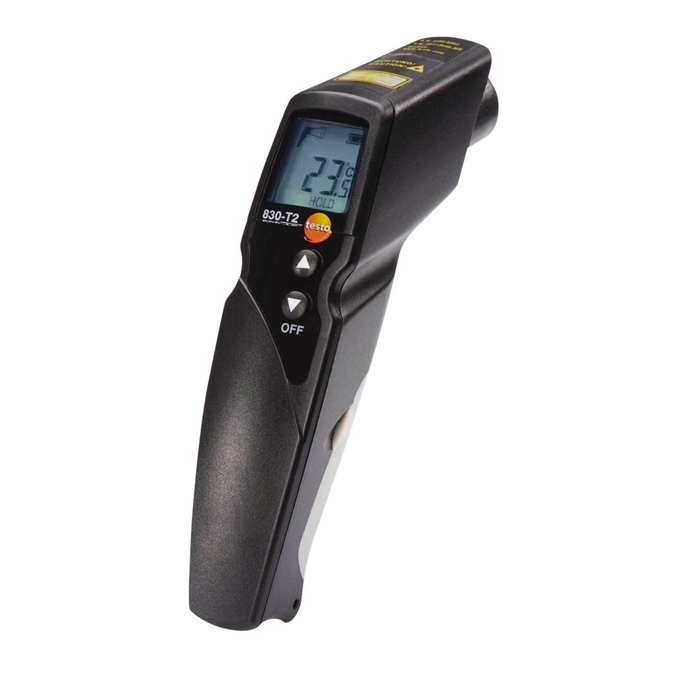

Testo 830-T2 Infrared Thermometer

The Testo 830-T2 Infrared Thermometer has a non-contact temperature measurement range that goes from -30˚C to 400˚C with an accuracy of ±(1.5˚C +1.5%) and a resolution of 0.1˚C. Infrared readings are taken twice every second and the thermometer has a 12:1 distance-to-spot ratio. Emissivity can be adjusted between 0.1 and 1 in order to compensate for different surface types, thereby maintaining accuracy.

The ergonomic pistol design of the Testo 830-T2 makes it very easy to use and it has twin laser pointers that show precisely where the measurement is being taken from. The thermometer has a clear digital screen that offers the user min/max readings and a data hold function for freezing a reading on screen. Adjustable alarms can be set which will sound when limits are exceeded.

It is also possible to use a type K thermocouple to measure temperature with the Testo 830-T2. It has a contact measurement range of -50˚C to 500˚C with ±(0.5˚C + 0.5%) accuracy and 0.1˚C resolution. A manufacturer’s calibration certificate and batteries are supplied as standard with the instrument and it has tough ABS housing.

A type K thermocouple is supplied in the ‘Set’ option alongside a useful leather pouch to protect the thermometer. This spring-mounted cross strip thermocouple is ideal for performing control measurements and taking readings on low-emissivity surfaces. Upgrade to the 'Set' option by clicking the checkbox above.

Testo part number: 0560 8312 / 0563 8312

Key Features

  • IR temperature range: -30˚C to 400˚C
  • IR Accuracy: ±(1.5˚C + 1.5%)
  • IR Resolution: 0.1˚C
  • 12:1 distance-to-spot ratio
  • Adjustable emissivity
  • Twin laser pointers
  • Type K range: -50˚C to 500˚C
  • Type K accuracy: ±(0.5˚C + 0.5%)
  • Type K resolution: 0.1˚C
  • Min/max display

What's In The Box?

Standard (0560 8312)

  • Testo 830-T2 Infrared Thermometer
  • Instructions for Testo 830-T2 Infrared Thermometer
  • Manufacturer’s calibration certificate
  • 9V battery

Set (0563 8312)-

  • Testo 830-T2 Infrared Thermometer
  • Instructions for Testo 830-T2 Infrared Thermometer
  • Manufacturer’s calibration certificate
  • Spring-loaded, cross strip type K thermocouple
  • Protective leather pouch
  • 9V battery
Specification

Temperature - TC Type K (NiCr-Ni)

  • Measuring range: -50 to +500 °C
  • Accuracy: ±0.5 °C + 0.5 % of mv
  • Resolution: 0.1 °C
  • Measuring rate: 1.75 s

Temperature - Infrared

  • Measuring range: -30 to +400 °C
  • Accuracy: ±1.5 °C or ±1.5 % of mv (+0.1 to +400 °C); ±2 °C or ±2 % of mv (-30 to 0 °C) (the higher value applies)
  • Measuring rate: 0.5 s
  • Infrared resolution: 0.1 °C

General technical data

  • Dimensions: 190 x 75 x 38 mm
  • Operating temperature: -20 to +50 °C
  • Housing: ABS
  • Battery type: 9V block battery
  • Battery life: 15 h
  • Storage temperature: -40 to +70 °C
  • Weight: 200 g
