Testo 176-T3 Temperature Data Logger

Testo
SKU: TESTO176T3
  • Multiple connections measure temperature at four points in industrial process
  • Compatible with range of thermocouples (type K, J and T)
  • IP68 construction, large internal memory, and 8-year battery life
More Info
Typically ships in 2-4 working days

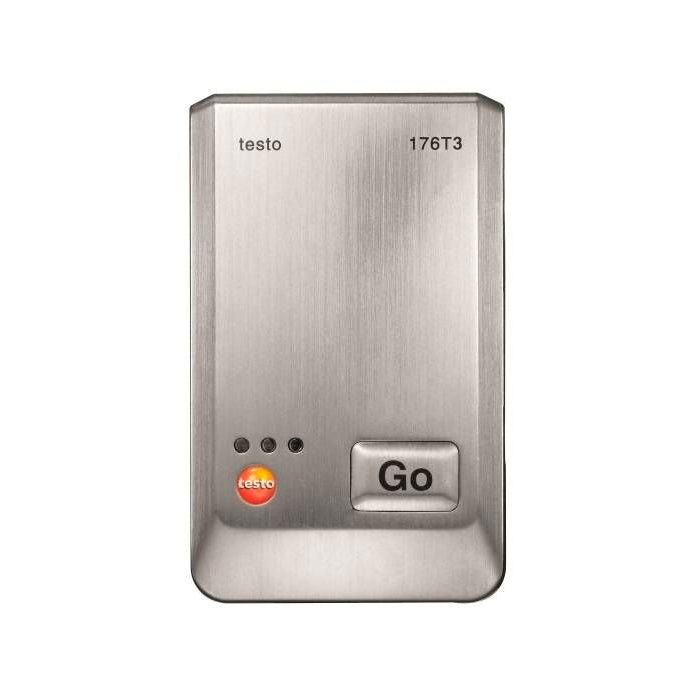

Testo 176-T3 Temperature Data Logger

The Testo 176-T3 Temperature Data Logger is designed to measure the temperature at up to four different stages of an industrial process. It has channels for simultaneous connection with up to four thermocouples (type T, J, or K) with a maximum measurement range of -195˚C to 1000˚C (type K). Accuracy varies from ±0.3˚C to ±1% depending on the probe and temperature whilst all readings are given to a precision of 0.1˚C. The user can adjust the measurement rate from 1s to 24h in order to perform intensive or extensive monitoring. Please note that probes are not included as standard.

Several features make the Testo 176-T3 suitable for long-term monitoring. Its internal memory has enough space for up to 2 million measurement values which can be downloaded to a PC using either a USB cable or SD card (not included) for further analysis. A free ComSoft Basic software package can be downloaded from testo.co.uk to facilitate analysis. The long-life battery will last for roughly eight years and a supplied wall bracket means that the monitor can be installed anywhere. The protective metal casing, meanwhile, ensures that the data logger is waterproof to IP68 standard and is highly resistant to impacts.

The Testo 176-T3 is supplied with a wall holder, lock, batteries and calibration protocol and constitutes an excellent option for long term industrial temperature logging.

Testo part number: 0572 1763

Key Features

  • Four channels (type K, J, T)
  • Max range: -195˚C to 1000˚C
  • Max accuracy: ±0.3˚C
  • Resolution: 0.1˚C
  • Adjustable measurement rate (1s to 24h)
  • Large memory (2 million values)
  • 8-year battery life
  • IP68-rated metal casing
  • USB and SD-Card connections

What's In The Box?

  • Testo 176-T3 Temperature Data Logger
  • Instructions for Testo 176-T3
  • Wall bracket
  • Lock
  • Battery
  • Calibration protocol
Specification

Temperature - TC Type K (NiCr-Ni)

  • Measuring range: -195 to +1000 °C
  • Accuracy: ±1 % of mv (-195 to -100.1 °C); ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70.1 to +1000 °C)
  • Resolution: 0.1 °C

Temperature - TC Type T (Cu-CuNi)

  • Measuring range: -200 to +400 °C
  • Accuracy: ±1 % of mv (-200 to -100.1 °C); ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70.1 to +400 °C)
  • Resolution: 0.1 °C

Temperature - TC Type J (Fe-CuNi)

  • Measuring range: -100 to +750 °C
  • Accuracy: ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70.1 to +750 °C)
  • Resolution: 0.1 °C

General technical data

  • Dimensions: 103 x 63 x 33 mm
  • Operating temperature: -20 to +70 °C
  • Protection class: IP65
  • Channels: 4 external
  • Battery type: 1 x Lithium (TL-5903)
  • Battery life: 8 years at 15 min. meas. rate
  • Memory: 2,000,000 measuring values
  • Storage temperature: -40 to +85 °C
