Megger MFT-X0 Multifunction Tester

Megger
SKU: MEGGMFTX0
  • True Loop testing with Confidence Meter for stable, repeatable readings
  • Insulation, continuity and automatic RCD testing in one instrument
  • Bluetooth result transfer to CertSuite Installation for easier reporting
More Info
Typically ships in 3-5 working days
Choose Your Free Gift
Test Meter PRO TMP775 Earth Leakage Clamp Meter
Test Meter PRO TMP775 Earth Leakage Clamp Meter
Free
£99.00
Test Meter PRO TMP690 Proving Unit
Test Meter PRO TMP690 Proving Unit
Free
£55.00
Test Meter PRO 50m R2 Wander Lead
Test Meter PRO 50m R2 Wander Lead
Free
£45.00
Test Meter PRO TMP901 Electricians Kit (FREE GIFT)
Test Meter PRO TMP901 Electricians Kit (FREE GIFT)
Free
£49.00

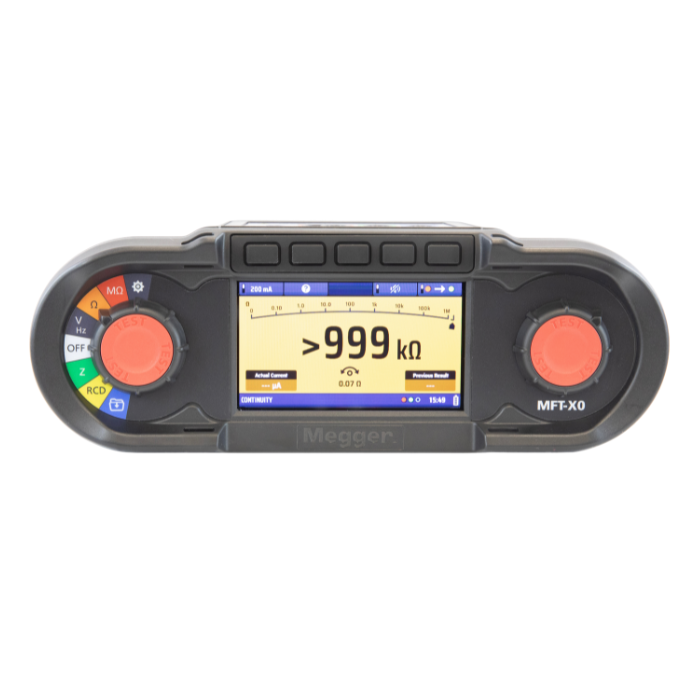

Megger MFT-X0 Multifunction Tester

The Megger MFT-X0 Multifunction Tester combines insulation, continuity, loop impedance and RCD testing in a portable instrument for electricians in the UK and Ireland. Suitable for commissioning, periodic inspection and fault finding across domestic, commercial and industrial installations, it combines essential electrical testing with intuitive controls and Bluetooth result transfer.

Take the Uncertainty Out of Loop Testing

Megger’s True Loop technology and patented Confidence Meter help deliver stable, repeatable loop impedance readings, even on electrically noisy circuits. The Confidence Meter shows measurement progress and indicates interference, helping you identify when a reliable result has been reached. Two-wire and three-wire non-trip testing provide flexible connection options, with tests taking around seven seconds on quiet circuits.

Cover Your Everyday Installation Tests

The MFT-X0 provides insulation testing at 100V, 250V, 500V and 1000V, alongside continuity testing with selectable 200mA and 10mA currents. RCD testing includes Type AC, A and B devices, with automatic sequences and ramp testing to streamline everyday checks. Voltage, frequency and phase-sequence measurements complete its core capabilities for domestic, commercial and three-phase electrical work.

Clear Results and Simple Controls

A 480 x 272 full-colour TFT display clearly presents results, test settings and graphical connection guidance, while colour-coded rotary controls make function selection straightforward. A black-on-white display mode improves visibility in difficult lighting, while the IP54-rated housing provides protection against dust and splashes. The quick-release battery system also makes changing power modules simple.

Move from Testing to Reporting

Built-in Bluetooth connectivity allows readings to be transferred to Megger CertSuite Installation on a compatible mobile device, helping reduce manual data entry. CertSuite provides cloud-based records and professional electrical certificates, with offline working available through the app. Firmware can also be updated via microSD card. CertSuite Installation requires a separate subscription following its trial period.

Megger part number: 1016-934

Key Features

  • True Loop impedance testing with patented Confidence Meter technology
  • Two-wire and three-wire non-trip loop testing
  • Stabilised insulation testing at 100V. 250V, 500V and 1000V
  • Selectable 200mA and 10mA continuity test currents
  • Type AC, A and B RCD testing, including selective devices
  • Configurable automatic RCD sequences and ramp testing
  • Voltage, frequency and phase-sequence measurements
  • Full-colour TFT display with monochrome viewing mode
  • Bluetooth result transfer to CertSuite installation
  • User-updateable firmware via microSD card
  • IP54 protection and CAT III 600V / CAT IV 300V safety ratings
  • Supplied with an AA battery module; rechargeable lithium-ion battery available seperately

Megger MFT Comparison Table

  MFT1711 MFT1721 MFT-X0 MFT-X1
200mA Continuity Test ✔ ✔ ✔ ✔
Low Current Continuity Test - ✔ ✔ ✔
Insulation Resistance Test 250V, 500V & 1000V 100V, 250V, 500V & 1000V 100V, 250V, 500V & 1000V 50V, 100V, 250V, 500V & 1000V
Variable Insulation Resistance Test - -   User selectable 50V - 999V
RCD Test (AC, A & S Types) ✔ ✔ ✔ ✔
RCD Test (B Type DC Current) - ✔ ✔ ✔
RCD (3 phase) - ✔ ✔ ✔
6mA DC RCD Test (for EVSE) - - - ✔ (Direct EVSE connection requires EVCA210UK or EVX100)
Loop Test (2 & 3 Wire Anti-Trip) ✔ ✔ ✔ ✔
Line Test (L-L) - ✔ ✔ ✔
Loop Test R1+R2 Calculation - ✔ ✔ ✔
Loop Test Confidence Meter - - ✔ ✔
Loop Test Compensation for RCDs - - ✔ ✔
High Resolution Loop Test (0.001 resolution) - - - ✔
Phase Rotation - ✔ ✔ ✔
Leakage Current (1mA - 1000A) - ✔ (Requires MC1010 current clamp)   ✔ (Requires MC1010 current clamp)
Earth Test (2 & 3 pole) - - - ✔
Earth Test (ART) - - - ✔ (Requires MC1010 current clamp)
Earth Test (Stakeless) - - - ✔ (Requires MC1010 and MVC1010 clamps)
Test Certificate Generation - - ✔ (Requires Megger CertSuite software) ✔ (Requires Megger CertSuite software)
User Upgradeable Firmware - - ✔ ✔
Rechargeable - - Optional rechargeable battery ✔

What's In The Box?

  • Megger MFT-X0 Multifunction Tester
  • Red test lead, probes, clips and grabbers
  • Blue test lead, probe, clips and grabbers
  • Green test lead, probe, clips and grabbers
  • AA battery module (with batteries)
  • MSA1363 socket adaptor UK
  • Neck strap
  • Multipurpose hard base carry case
  • Quick start guide
  • Calibration certificate
Specification

Voltage Measurement

  • Voltage Range – 0.001V to 2 V (mV range) 2 V to 600 V (V range), 1000 V DC (Non-CAT rated circuits)
  • Voltage Type – Trms, AC, DC
  • Phase Sequence – Automatic phase sequence testing on detection of valid three phase supplies

Continuity/Resistance

  • Measurement Range Digital display - 0.01 Ω to 999 kΩ Auto-ranging
  • Measurement Range Analogue arc - 0 Ω to 1 MΩ log scale
  • Test Voltage – 4 V DC to 5 V DC
  • Test Current (Nominal) - >200 mA 0 Ω >< 2 Ω, 10 mA, Auto reduction on high resistance (actual current reported in display)
  • Test Polarities – Forward polarity
  • Buzzer Resistance Range - > 0.01 Ω < 2 kΩ
  • Buzzer Threshold - 0.3, 0.5, 1, 2, 3, 4, 5, 10, 20, 30, 40, 50, 100, 200 Ω

Insulation Testing

  • Measurement Range Digital Display - 0.001 MΩ to 999 MΩ Auto-ranging
  • Measurement Range Analogue Arc - 0.001 MΩ to >1000 MΩ log scale
  • Insulation Test Voltages - MFT-X0: 100 V DC to 1000 V DC
  • Test Current – 1 mA to 2 mA
  • Stabilised Output Voltage - Output test voltage stabilised to -0% +2% +2 V

True Loop™ Loop Impedance Testing

2 Wire – All Modes

  • Test Types -
    - Mode 1: Non-Trip
    - Mode 2: High Current
    - Mode 3: High Resolution
  • Resolution -
    - Non-Trip: 0.01 Ω
    - High Current: 0.01 Ω
  • Voltage Range -
    - Non-Trip: 48 V AC to 280 V AC
    - High Current: 48 V AC to 550 V AC
  • Frequency Range – 45 Hz to 65 Hz (all modes)
  • 3 Phase Testing -
    - Non-Trip: Single phase only
    - High Current: Three phase

3 Wire – Non-Trip

  • Test Types – RCD (non-trip)
  • Resolution - 0.01 Ω
  • Voltage Range – 48 V AC to 280 V
  • Frequency Range – 45 Hz to 65 Hz
  • 3 Phase Testing – Single phase only

Volt Drop

  • Volt Drop Calculation – Requires Zref (Ze) and circuit current (I-vdrop)
  • Accuracy – Dependent on loop impedance accuracy

RCD Testing

  • RCD Types Supported – Type AC, A, B, AC(S), A(S), B(S)
  • Auto RCD Sequence - 1 / 2x I∆n, 1x I∆n, 2x I∆n, 5x I∆n, Ramp, 0º / 180º (customer configurable)
  • Ramp Testing – 10 mA to 1000 mA
  • Fault (Touch) Voltage – 0 V to 253 V

Voltage Measuremen

  • Function / Range / Accuracy
  • Voltage DC / 0 V – ±1000 V / ±1% ± 3 digits
  • Voltage AC/TRMS / 0 V – 600 V (15 – 500 Hz) / ±2% ± 1 digits
  • Frequency / 15 Hz – 99 Hz / ±0.5% ± 2 digit
  • Frequency / 100 Hz – 500 Hz / ±2.0% ± 2 digit

Millivolt Measurement

  • Function / Range / Accuracy
  • mV AC/TRMS / 0 mV to 1999 mV (50 / 60 Hz) / ±1% ± 3 digits
  • mV DC / 0 mV to ±1999 mV / ±1% ± 3 digits

Live Earth Detection

  • Live Earth Detection - Indicates if the PE terminal is live when selecting the Loop or RCD test ranges. The relevant Loop or RCD test is inhibited.

Resistance and Continuity

  • Function / Range / Test Current / Accuracy
  • 200 mA / 0.01 Ω – 99.9 Ω / (0 Ω – 2 Ω) 205 mA ±5 mA / ±3% ±2 digits
  • 10 mA / 0.01 Ω – 99.9 Ω / 10 mA / ±3% ±2 digits
  • 10 mA / 100 Ω – 999 kΩ / - / ±5% ±2 digits
  • Open Circuit Voltage / 4 V to 5 V

Safety and Electrical Protection

  • Safety Rating – CAT III 600 V / CAT IV 300 V to EN 61010, IEC 61010-031: 2015, IEC 61010-030 with respect to Earth, Safety category rating valid to altitude of 2000 m
  • Live Voltage - Active live voltage protection to 600 V between any test terminals without blowing a fuse. Live voltage warning on display and audible when >5 V is applied between any test terminals. Fuse protected to 1000 V, fuses are not user changeable

Insulation Test

  • Function / Range / Accuracy
  • 1000V / 0.001 – 999 MΩ / ±3% ±2 digits
  • 500 V / 0.001 – 500 MΩ / ±3% ±2 digits
  • 500 V / > 500 MΩ / ±10%
  • 250 V / 0.001 – 250 MΩ / ±3% ±2 digits
  • 250 V / > 250 MΩ / ±10%
  • 100 V / 0.001 – 100 MΩ / ±3% ±2 digits
  • 100 V / > 100 MΩ / ±10%
  • Leakage Current / 0.1 μA – 1.99 mA / ±10%
  • Output Voltage - -0% +2% +2 V at rated load or less
  • Voltage Display - ±1% ± 3 V
  • Short Circuit Current - 1.5 mA nominal
  • Test Current On Load - 1 mA at min pass values of insulation
  • Maximum capacitance - 2 μF for a stable reading, 5 μF absolute limit

Loop 2-Wire – No RCD (L-PE, L-N or L-L)

  • Function / Range / Accuracy
  • 2-Wire / 0.01 Ω – 9.99 Ω / ±2% ±5 digits
  • 2-Wire / 10.0 Ω – 99.9 Ω / ±10% ±5 digits
  • 2-Wire / 100 Ω – 1999 Ω / ±10% ±5 digits
  • Supply Voltage / 48 V – 550 V
  • Supply Frequency / 45 Hz – 65 Hz

Loop 2-Wire L-PE with RCD

  • Function / Range / Accuracy
    • - / 0.01 Ω – 1999 Ω / ±10% ±5 digits
    • Supply Voltage / 48 V – 280 V
    • Supply Frequency / 45 Hz – 65 Hz

    Loop 3-Wire L-PE with RCD

    • Designation / Test Current / Application
    • RCD / 15 mA / For circuits protected by an RCD rated 30 mA or greater
    • Function / Range / Accuracy
    • - / 0.01 Ω – 9.99 Ω / ±2% ±5 digits
    • - / 10.0 Ω – 199 9 Ω / ±10% ±5 digits
    • Supply Voltage / 48 V – 280 V
    • Supply Frequency / 45 Hz – 65 Hz

    RCD Tests, Types A and AC

    • RCD Types - AC, A, AC(S), A(S)
    • RCD Rated Current (IΔn) - 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 650 mA, 1000 mA, VAR
    • ½ I no-trip Test Current - -10% – +0% 0.5 IΔn
    • 1 I, 2 I, 5 I trip test – AC current - -0% – +10% M • IΔn
    • 1 I, 2 I, 5 I trip test – pulsed DC current - -0% – +10% 1.4 • M • IΔn
    • Trip time - ±10%
    • Ramp trip test current - ±5%
    • Fault Voltage (0 V – supply) - +5% +15% ±0.5 V
    • Supply Voltage - 48 V – 280 V
    • Supply Frequency - 45 Hz – 65 Hz

    Type B

    • RCD Types – B, B(S)
    • RCD Rated Current (IΔn) - 10 mA, 30 mA, 100 mA, 300 mA, 500 mA
    • ½ I no-trip Test Current - -10% – +0% (0.5 IΔn)
    • 1 I, 2 I, 5 I trip test Current - -0% – +10% (2 IΔn)
    • Trip Time - ±10%
    • Trip Current (Ramp) - ±5%
    • Fault Voltage (0 V – supply) - +5% +15% ±0.5 V
    • Supply Voltage - 48 V – 280 V
    • Supply Frequency - 45 Hz – 65 Hz

    Power Supply

    • Li-ion Rechargeable – 7.2 V DC 4400 mAh (non-serviceable) + charge status indication
    • Battery Charger (Li-ion) – Input: 110 V / 230 V AC, 50/60Hz, 1.3A , Output: 3 A, 8.4 V DC
    • Battery Life (Li-ion) -
      - Li-ion: 4400 mAh = >15 hrs*
      - Continuity: Approximately 2000 tests using Li-ion battery (0.5s test every 30s per EN 61557)
      - Insulation: Approximately 1400 tests using Li-ion battery (0.5s test every 30s per EN 61557)
      - Earth: Approximately 1600 tests using Li-ion battery *times based on typical daily test profile
    • Battery Charging Time - Li-ion: 2.5 to 3 hrs (ambient temperature dependent)
    • LR6 (AA) Battery Module (Supplied as standard with MFT-X0) – 8 x LR6 (AA) Alkaline batteries

    Environmental

  • Operating Temperature - -10 °C to +55 °C
  • Storage Temperature - -25 °C to +70 °C
  • Operating Humidity - 90% R.H. at +40 °C max
  • Ingress Protection - IEC 60529: IP 54 : Equipment is protected against ingress of dust and water splashes and is suitable for indoor and outdoor use
  • Vibration – MIL-PRF-28800F: class 2
  • Maximum Operating Altitude – 2000 m
  • Pollution Degree – 2

Mechanical

  • Length – 274 mm (10.79 ”)
  • Width – 96 mm (3.78 ”)
  • Depth – 143 mm (5.63 ”)
  • Weight – Instrument Only – 1.57 kg (3.46 lb)
  • Shipping Weight – 5.6 kg (12.35 ib)
