Baur BUKCI-3 Live LV Cable Identifier

The Baur BUKCI-3 Live LV Cable Identifier detects live low-voltage (LV) cables and phases, allowing operators to quickly confirm the correct cable, check phase rotation, and verify connections while the system is on; helping reduce downtime and eliminate the need for disruptive power interruptions.

With its versatile design, the BUKCI-3 can be connected to single-phase, two-phase, or three-phase systems at voltages of 115 V, 230 V, or 400 V. Once connected, the transmitter automatically configures to the appropriate power level, such as at the link-box, phase-to-phase or phase-to-neutral, and then introduces a complex signal into the cable. The handheld receiver then detects and analyses this signal upstream, providing operators with clear results. In three-phase mode, the receiver indicates a straightforward “yes/no” indication, whereas in single- or two-phase mode, it displays relative signal strength to guide precise cable identification.

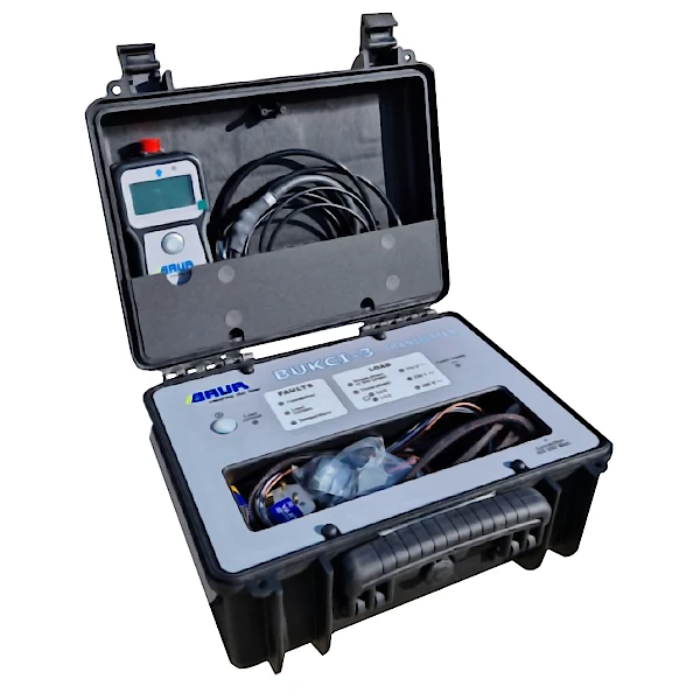

The BUKCI-3 system is easy to use with a single-button control along with visual and audible signals that make interpretation fast and intuitive. It also has LEDs that display supply voltage and phase rotation, which improves clarity during testing. The BUKCI-3 system is self-contained in a single robust case that weighs only 8 kg and is supplied with a transmitter, receiver, connection leads, cable and phase identification sensors, and an instruction booklet.

part number: BUKCI-3

Key Features

• LEDs indicate the supply (115 V, 230 V or 400 V), and the phase rotation
• Simple to use
• Single button control
• Live LV Cable identifier
• Identify live LV cables
• Identify live LV phases
• 3, or 2, or 1 phase connection
• Visual and audible signal
• Show phase rotation
• Simple single button operation
• Self-contained in a single case
