BAUR Frida VLF Test Set – 26KV RMS / 36KV Peak

BAUR
SKU: BAURFRIDA
  • Can be used for both cable testing and cable sheath testing, with a maximum available test voltage of 26kVrms and the ability to verify medium-voltage cables up to 20kV
  • The BAUR Fridas VLF Test Set also has truesinus testing technology, which is able to offer a load-independent, reproducible sinusoidal high voltage, which offers accurate measurements
  • The Frida is also able to test cables according to DIN VDE 0276-620/621 (CENELEC HD 620/621), IEEE 400-2012, IEEE 400.2-2013, IEC 60060-3, and is simple to use
More Info
Typically ships in 2-3 weeks

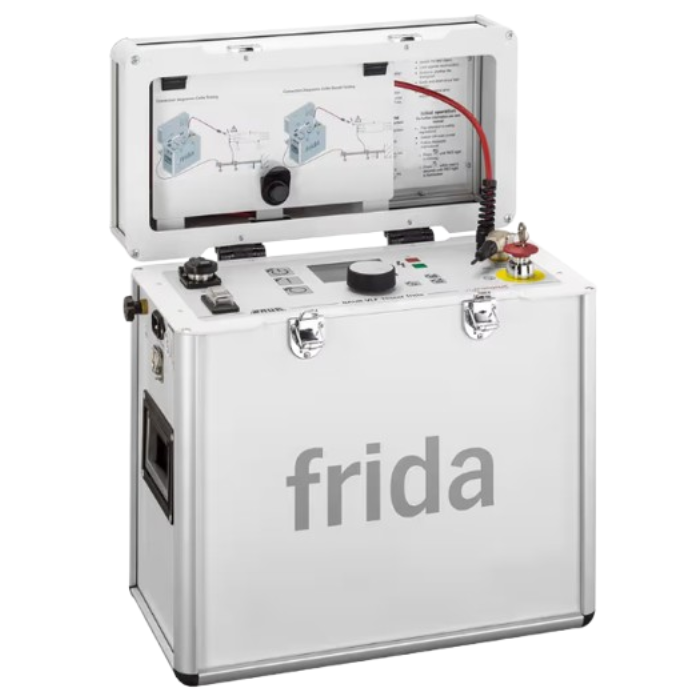

BAUR Frida VLF Test Set – 26KV RMS / 36KV Peak

The BAUR Frida VLF Test Set is used for cable testing and cable sheath testing, with a maximum test voltage of 26kVrms. The FRIDA is an extremely low frequency tester which has been expertly designed to verify the condition of medium-voltage cables and electrical equipment such as generators and transformers, up to 20kV. VLF testing allows the user to locate insulation faults in plastic and paper-insulated mass-impregnated cables, in quickfire fashion, without impacting the quality of the surround insulating material.

The BAUR Frida VLF Test Set also features truesinus testing technology, which offers a load-independent, reproducible sinusoidal high voltage. This enables the Frida to store voltage tests, as well as accurate dissipation factor and partial discharge measurements, which are then able to be repeated and compared. The Frida also has VLF square wave voltage and DC voltage capabilities, making it a versatile tool for industry professionals to complete the testing they desire.

The BAUR Frida VLF Test Set is able to test cables according to DIN VDE 0276-620/621 (CENELEC HD 620/621), IEEE 400-2012, IEEE 400.2-2013, IEC 60060-3. As well as this, it is able to perform cable sheath testing in accordance with IEC 60502/IEC 60229 and voltage withstand tests in accordance with IEEE 433. With a maximum test voltage of 24kVrms/34kVpeak, the Frida is simple to set up and use for all the user's needs. Automatic testing and diagnostic sequences can also be ran.

BAUR part number: Frida

Key Features

  • Suitable for continuous operation
  • Has a maximum test voltage of 26kVrms
  • Has the following voltage shapes: VLF truesinus, VLF square wave voltage, and DC voltage
  • Load-independent, reproducible sinusoidal high voltage by means of VLF truesinus testing technology
  • Cable testing according to: IEC 60060-3, IEC 60502.2, CENELEC HD 620/621 (DIN VDE 0276-620/621), IEEE 400-2012, IEEE 400.2-2013
  • Cable sheath testing according to IEC 60502/IEC 60229
  • Very low frequency tester for the verification of the condition of medium-voltage cables and electrical equipment up to 20kV
  • For use with test generators, transformers, and switchgear
  • Locate faults in plastic-and-paper insulated, mass-impregnated cables
  • Locate faults with ease and speed without damaging the surrounding materials
  • Automatic testing and diagnostic sequences
  • Quick and easy to set up
  • Transfer data via a USB interface
  • Automatic discharge unit
  • Compact and lightweight
  • A precise, portable and powerful high-voltage testing and diagnostics instrument

What's In The Box?

  • Frida VLF Tester
  • HV connection cable, 5m (fix mounted)
  • GDR 40-136 discharge and earth rod
  • Earth cable, 5m, with earth terminal
  • Jumper plug for external emergency off unit
  • HV connection set
  • Mains supply cord, 2.5m
  • User manual
  • Pocket guide
Specification

Output Voltage

  • Frequency Range - 0.01-0.1Hz
  • VLF truesinus - 1-26kVrms (36kV peak)
  • VLF Square Wave Voltage - 1-34kV
  • DC Voltage - ±1 – 34kV
  • Resolution - 0.1kV
  • Accuracy - 1%
  • Load Range (VLF Testing) - 1nF – 8µF

Output Current

  • Measurement Range - 0-14mA
  • Resolution - 1µA
  • Accuracy - 1%
  • Maximum Capacitive Load -
    0.5µF at 0.1Hz, 24kVrms / 34kV peak
    1µF at 0.05Hz, 24kVrms / 34kV peak
    8µF at 0.01Hz, 18kVrms / 25kV peak

Dissipation Factor Measurement (Frida TD)

  • VLF truesinus - 1-26kVrms
  • Load Range - 10nF - 8µF
  • Resolution - 1 x 10 to the power of -6
  • Accuracy - 1 x 10 to the power of -4
  • Measurement Range - 1 x 10 to the power of -4 - 21,000 x 10 to the power of -3
  • tan d measuring frequency - 0.1Hz
  • Automatic Detection and Compensation of Leakage Currents - With VSE box (optional)
  • BAUR Software 4 for office PC (Office Installation) - Used to evaluate test and measurement logs

General

  • Input Voltage - 100-260V, 50/60Hz
  • Power Consumption - Maximum of 300VA
  • Reverse Voltage Protected - up to 13kV
  • Degree of Protection - IP54 (in closed state)
  • Data Interface - USB 2.0
  • Dimensions (W x H x D) - 438 x 456 x 220mm
  • Weight (including HV connection cable) - Approximately 22kg
  • Ambient Temperature (Operational) - -10°C to +50°C
  • Storage Temperature - -20°C to +60°C
  • Safety and EMC - CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental Testing
  • User Interface Available in 13 Languages - Czech, Chinese (CN), Chinese (TW), Dutch, English, French, German, Italian, Korean, Polish, Portuguese, Russian, Spanish
