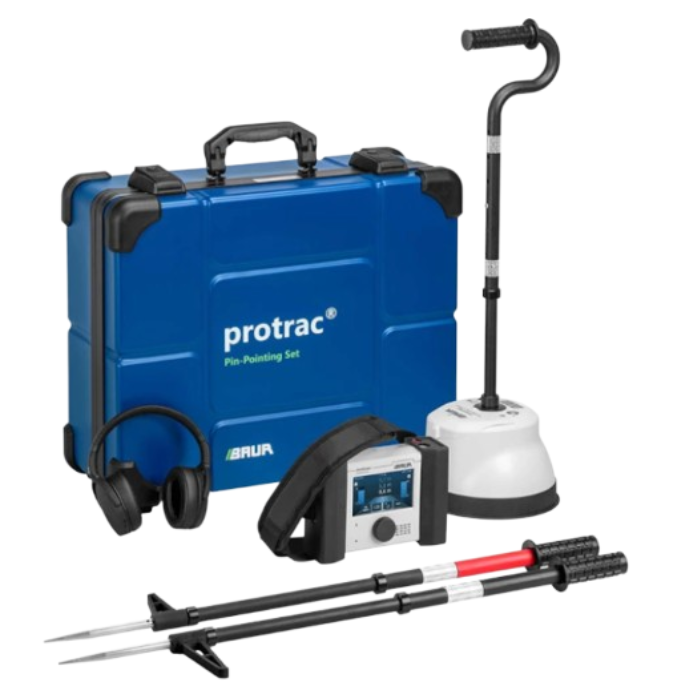

BAUR Protrac Complete Digital Pinpointing System, Acoustic & Step Voltage

BAUR
SKU: BAURPROTRACPINPOINT
  • Used for the precise pin-pointing of cable faults and cable sheath faults, with easy methods available in this system
  • The BAUR Protrac Complete Digital Pinpointing System can locate the exact location with ease of use, without compromising on accuracy
  • Supplied with a CU Control Unit, as well as an AGP Acoustic Ground Probe and SVP Step Voltage Probes, with accessories also included
More Info
Typically ships in 2-3 weeks

BAUR Protrac Complete Digital Pinpointing System, Acoustic & Step Voltage

The BAUR Protrac Complete Digital Pinpointing System is used for the precise pin-pointing of cable and cable sheath faults when used in conjunction with the Baur Shirla, and provides methods for both tracing and joint location in a system. By utilising the latest technologies, locating the exact fault position is simple and quick, without impacting on the accuracy of results. With an innovative two-level signal processing concept, a high degree of sensitivity and accuracy is achieved, as is the maximum suppression of ambient noise. Any data that is measured and processed is then sent directly to the supplied headphones and control unit through Bluetooth, which is extremely convenient and offers an enhanced freedom of movement. The Complete Digital Pinpointing System combines acoustic measurement with step voltage measurement, and is one of multiple BAUR sets, which are:

  • The BAUR Protrac Complete Digital Pinpointing System
  • The BAUR Protrac Acoustic Digital Pinpointing System
  • The BAUR Protrac Audio Frequency Pinpointing System
  • The BAUR Protrac Tracing Set

The BAUR Protrac Complete Digital Pinpointing System is supplied with a CU Control Unit which provides clear and intuitive navigation to the fault and along the cable route. With acoustic pin-pointing and precise 3D operating guidance to the fault, the CU can be used with or without headphones, thanks to an integrated loudspeaker. The headphones are safety-assured, as they are limited to 85dB(A) in accordance with EC directive 2003/10/EC, ISO 1999:1990 and OSHA 1910.95(c)(1).

The AGP Acoustic Ground Probe

The Complete System is also supplied with an AGP Acoustic Ground Probe, which has a powerful piezoelectric sensor with long-term measuring stability, which is designed for long-term and continuous use in an array of environments. There is a clear distinction between the cable fault noise in the ground, and that of the cable fault location system. With a simplified tracing function and different length contact spikes for better contact with the ground, the AGP offers acoustic measurement.

The BAUR Protrac Testing Kits

  Protrac Tracing Set Protrac Acoustics Set Protrac Audio Frequency Set Protrac Complete Acoustic and Step Voltage Set

CU Control Unit:

  • Carrying Strap
  • 8 x rechargeable batteries, NiMH Mignon AA 1.2V IEC LR6
  • Protrac tool
  • Charger including country-specific adaptor
  • USB cable 2.0 for software updates
 ✔ ✔ ✔ ✔

AGP Acoustic Ground Probe:

  • Contact bell, Ø 79mm
  • Tripod
  • Telescopic handle
  • Contact spikes: 50, 100, 150mm
  • 6 x rechargeable batteries, NiMH Mignon AA 1.2V IEC LR6
  • Charger including country-specific adaptor
 X ✔ X ✔

SVP Step Voltage Probes:

  • SVP step voltage probe, red
  • SVP step voltage probe, black
  • Connection cables, red and black, 1.5m each
 X X X ✔

AFP Audio Frequency Probe:

  • 6 x rechargeable batteries, NiMH Mignon AA 1.2V IEC LR6
  • Charger including country-specific adaptor
 ✔ X ✔ X
Bluetooth Headphones ✔ ✔ ✔ ✔

TG 20/50 Audio Frequency Transmitter:

  • Adjustable carrying strap
  • Mains supply cord, 2.5m
  • Earth cable, 3m, with earth terminal
  • Connection cables, red and black, touch-proof, 2m each, with connection clips
  • Connection clip, black
  • Connection clip, red
  • Earth spike
  • Connection cable, 25m, on hand reel
  • TG 20/50 user manual
 ✔ X X X
Protrac User Manual ✔ ✔ ✔ ✔
Transport Case ✔ ✔ ✔ ✔

BAUR part number: Protrac Pin-Pointing Set

Key Features

  • Used for the pin-pointing of cable faults in a variety of ways
  • Offers joint location and tracing
  • All of the system components, except for the step voltage probes, are connected with each other wirelessly with Bluetooth
  • A touchscreen offers easy operation, or a rotary switch can be used
  • Powered by rechargeable or non-rechargeable batteries
  • Can be used with or without headphones thanks to an integrated loudspeaker
  • Offers real-time calculation and display of the fault distance including the previously measured values
  • Excellent acoustic quality and range
  • Shows a clear distinction between the breakdown of the noise of the fault and the surge noises of the cable fault location

What's In The Box?

  • CU Control Unit
  • Carrying Strap
  • 8 x rechargeable batteries, NiMH Mignon AA 1.2V IEC LR6
  • Protrac Tool
  • Charger including country-specific adaptor
  • USB cable 2.0 for software updates
  • Bluetooth headphones with USB charging cable and charger
  • Protrac User Manual
  • Transport Case

AGP Acoustic Ground Probe, including:

  • Contact bell, Ø 79mm
  • Tripod
  • Telescopic handle
  • Contact spikes: 50, 100, 150mm
  • 6 x rechargeable batteries, NiMH Mignon AA 1.2V IEC LR6
  • Charger including country-specific adaptor

SVP Step Voltage Probes, including:

  • SVP step voltage probe, red
  • SVP step voltage probe, black
  • Connection cables, red and black, 1.5m each
Specification

CU Control Unit

  • Intuitive user interface in multiple languages
  • Loudspeaker - 3W
  • Display - Transmissive colour TFT
    Display Size - 4.3", 480 x 272 pixels
    Brightness - 800 cd/m²
    Touchscreen - Capacitive, operable with gloves
  • Power supply -
    Rechargeable battery mode - 8 x NiMH Mignon AA 1.2V IEC LR6
    Non-rechargeable battery mode - 8 x alkaline batteries AA 1.5V IEC LR6
  • Rechargeable or non-rechargeable battery life - Approximately 6 hours
  • Charging time - Approximately 3.5 hours
  • Degree of protection - IP54
  • Dimensions (W x H x D) - 205 x 143 x 69mm
  • Weight - Approximately 1.1kg

AGP Acoustic Ground Probe

  • Data transmission - Bluetooth
  • Range - 40m
  • Power supply -
    Rechargeable battery mode - 6 x NiMH Mignon AA 1.2V IEC LR6
    Non-rechargeable battery mode - 6 x alkaline batteries AA 1.5V IEC LR6
  • Rechargeable or non-rechargeable battery life - Approximately 16 hours
  • Charging time - Approximately 3.5 hours
  • Degree of protection - IP65
  • Dimensions - Ø 225 x 146mm
  • Weight - Approximately 2.6kg (without handle), approximately 3.2kg (with handle)

Sheath Fault Location

  • Measurement range - 1µV – 220V
  • Noise suppression - 50/60Hz, 16 2/3Hz, DC
  • Zero point adjustment - Automatic
  • SVP step voltage probes -
    Length - Extendable, approximately 580mm-1,100mm
    Weight per probe - Approximately 0.9kg

General

  • Charger for rechargeable batteries -
    Power supply - 100 - 240V, 50/60Hz
    Output voltage - DC 5 - 14.4V, 1 A ±100mA
  • Safety/work safety - Volume limiting to 85dB(A)
  • Ambient temperature (operational) - -20°C to +55°C
  • Storage temperature - -20°C to +65°C
  • Relative humidity - Non-condensing
  • Safety and EMC - CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing
