Brymen BM887 Insulation Multimeter

SKU: BRYMEN887
  • Test voltages from 50V to 1000V to measure insulation resistance from 3MΩ to 25GΩ
  • Further digital multimeter functions such as AC/DC voltage, current, temperature and frequency
  • The ideal combination tester to White Goods and Appliance repairs
More Info
In Stock - Available Next Day

Brymen BM887 Insulation Multimeter

The Brymen BM887 Insulation Multimeter is a combination of a regular digital multimeter and an insulation tester. It is capable of measuring insulation resistance from 3MΩ to 25GΩ with test voltages of 50V, 100V, 250V, 500V and 1000V. It has a basic accuracy of ±1.5% across much of its insulation resistance range and a maximum resolution of 0.001MΩ.

In terms of its digital multimeter capabilities, the Brymen BM887 can measure AC/DC voltage from 6V to 1000V, resistance from 0 to 60MΩ, and frequency from 10Hz to 50kHz. Further functions include continuity and diode testing as well as earth bond testing, capacitance, temperature (using supplied K-type probe), and even VFD AC voltage and frequency measurement, suitable for variable frequency motor drives.

Measurement readings are shown on the Brymen BM887’s backlit digital display and it possesses features such as min/max recording, relative zero and display hold. Notably, it can provide a PASS or FAIL indication using the compare mode. It has a live circuit detector to prevent the user from working on energised conductors and is operated with a simple dial selector and push button interface.

The Brymen BM887 comes supplied with a remote insulation probe that allows the user to trigger the test without having to juggle the tester and probe simultaneously. It warns when connections are incorrect and it has an overvoltage category rating of Cat IV 600V / Cat III 1000V.

Brymen part number: BM887

Key Features

  • Insulation resistance: 3MΩ to 25GΩ
  • Test voltages: 50V, 100V, 250V, 500V, 1000V
  • AC/DC voltage: 6V to 1000V
  • Resistance: 0MΩ to 60MΩ
  • Temperature measurements -40 to 537 Degrees C
  • Frequency: 10Hz to 50kHz
  • Suitable for variable frequency drives
  • Compare mode for PASS/FAIL results
  • Min/max/avg recording
  • Cat IV 600V / Cat III 1000V
  • Remote probe supplied

What's In The Box?

Brymen BM887 Insulation Multimeter
Remote Test Probe with button

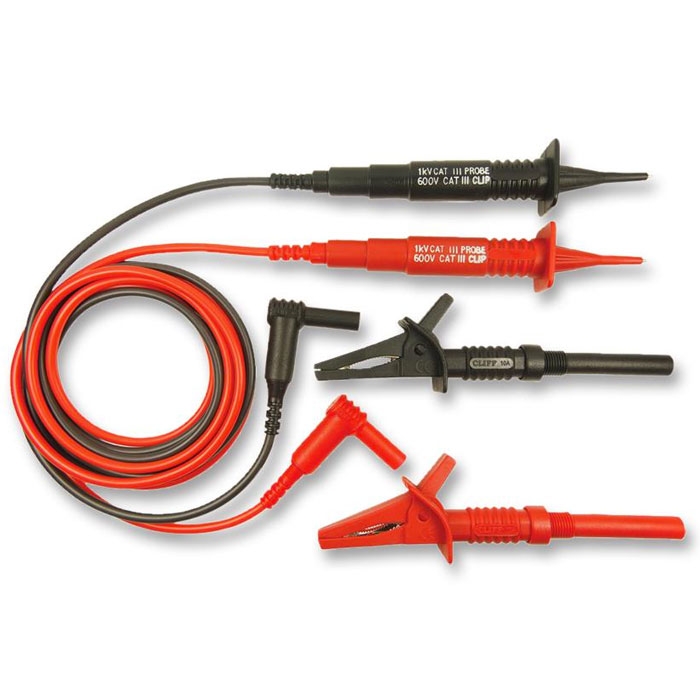

Test Leads
Instruction manual
Type K thermocouple
Brymen Carry Case (optional)
