C.Scope SGA3 Signal Generator for Cable Location

SKU
CSCOPSGA3
  • Transmits 33kHz signal through piping or cables via induction or contact
  • Pulse and continuous transmission for use in high-interference zones
  • Built-in accessory tray and fully weatherproof IP65-rated casing
More Info
inc VAT £426.00 ex VAT £355.00
Typically ships in 5-7 working days


Product Details

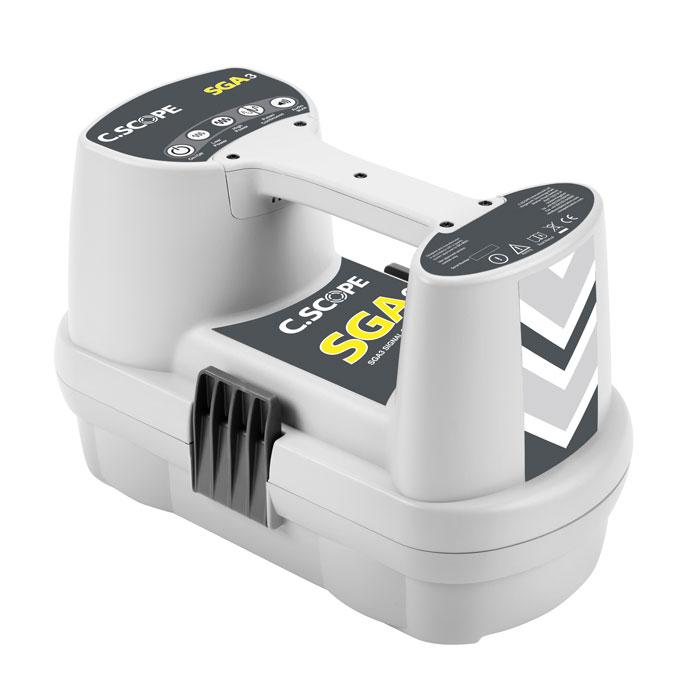

C.Scope SGA3 Signal Generator

Designed for use with C.Scope Cable Avoidance Tools, the C.Scope SGA3 Signal Generator produces a 33kHz signal which can be conveyed through underground pipes and cables and then picked up by the appropriate cable locator. It greatly increases the range of underground cables and pipes that can be located, thus preventing costly contact with pipes and cables.

The C.Scope SGA3 can energise a subterranean pipe or cable either through direct connection with the target or through the induction method from above the ground so it is very effective as a transmitter. This allows it to locate different underground obstacles including street lighting cables.

Two power levels allow the user to adjust the signal strength of the C.Scope SGA3 and the pulse and continuous modes help maintain location accuracy in high-interference zones. A clear audible signal sounds when the SGA3 is in operation although it also has an audio-mute button.

The C.Scope SGA3 has an in-built accessory tray and is fully weatherproof to IP65 standard. It is fully portable and has a three-year warranty.

C.Scope part number: CSSGA-33 SGA3

Key Features

  • Produces 33kHz signal
  • Transmits through contact or induction
  • Finds different cable types incl. street lighting
  • Adjustable signal strength
  • Pulse and continuous mode for high interference zones
  • Audible sound during operation
  • Three-year warranty
More Information
Specification
  • Audio indications: Audio Feedback on button push; Audio pitch drops with increasing load current in Connected Mode; Audio pitch changes with power level in Induced Mode; Audio output pulses to indicate Pulsed Mode; Low battery indicated by interrupted Audio and output signal
  • Output: Induced = 32,768Hz; Connected = 32,768Hz; Carrier Pulse Frequency: 7.5Hz (pulsed mode); Audio Pulse frequency: 3.75Hz (pulsed mode)
  • Connected Mode: Connection Mode automatically selected when lead is plugged into socket; Maximum Output Voltage (open circuit): 20V rms; Maximum Output Current (short circuit): 18mA rms; Maximum Power: 320mW into 1000Ω load
  • Construction: Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface. Incorporates clip on Accessory storage compartment
  • Weight: 3.4kg (7 pounds 7 ounces)
  • Dimensions: 360mm x 180mm x 230mm (14.1” x 7” x 9”)
  • Battery type: Internal 4 x ‘D’ (LR20) cells (either alkaline non-rechargeable or NiMH rechargeable)
  • Battery Life: Up to 40 hours intermittent use at 20oC (68oF) using alkaline cells
Icon Filename Type Size Download
pdf C.Scope CXL3 / CXL4 / SGA3 Datasheet pdf 1.1 MB Download
