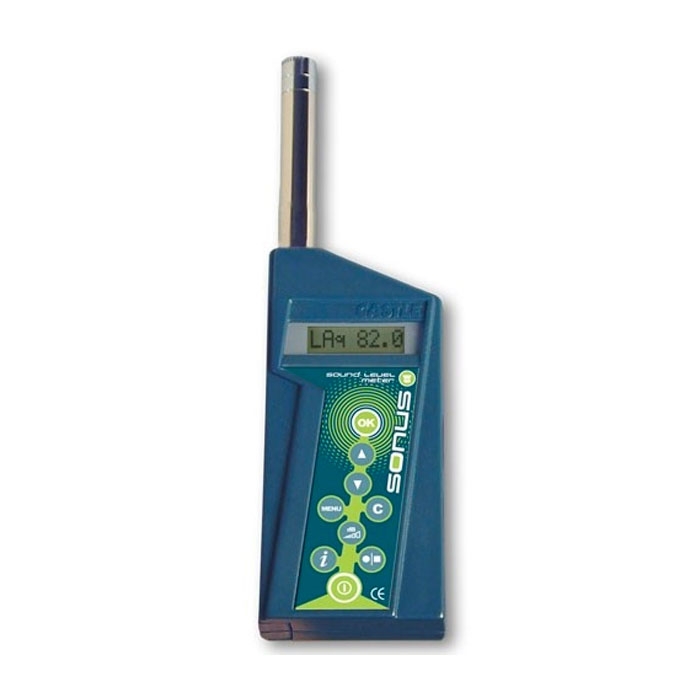

Castle GA116L SONUS Class 1 Datalogging Sound Level Meter

SKU: CASTGA116L
  • Accurately measure sound level and exposure from 30dB to 140dB
  • A, C, and Z for peak and frequency plus multiple measurement options
  • Log up to 2100 measurements then download and analyse with included software
More Info
Typically ships in 5-7 working days

Castle GA116L SONUS Class 1 Datalogging Sound Level Meter

The Castle GA116L SONUS Class 1 Datalogging Sound Level Meter is a useful instrument for performing risk assessments in compliance with the Noise at Work Regulations 1989. It can measure sound levels between 30dB and 140dB with three different ranges. Each range operates over 70dB and the meter also boasts Class 1 accuracy and 0.1dB resolution. Measurement options include average sound exposure (Leq), max sound (Lmax), peak sound, personal exposure (Lp) and percentiles alongside numerous other functions. The meter is capable of simultaneous measurement of two different variables.

The user can choose between A, C and Z weighting for both frequency and peak measurement as well as selecting ‘slow’, ‘fast’ and ‘impulse’ response time. The Castle GA116L can act as a dosemeter as well as taking peak and average measurement which allows the user to carry out assessments in compliance with the Noise at Work Regulations 1989.

The meter works through intuitive menus navigated by a push-button interface and automatically adjusts to the right settings when the user picks one of three modes. Results are shown in dB or Pa2h on the one-line digital screen.

The Castle GA116L has an internal memory with room for around 2100 records with time-and-date stamps for later reference. These can then be recalled to the digital screen or downloaded via a USB connection using the supplied Castle dBdataPro software. Operation is extremely simple despite this advanced functionality. The software also allows the user to determine the appropriate ear protection for the working environment.

Weighing just 220g and with dimensions of just 210mm x 60mm x 35mm, the Castle GA116L is truly pocket-sized and easy to transport. With helpful software, tough plastic casing and Class 1 accuracy, this sound meter is a perfect tool for in-depth Noise at Work assessments in all manner of industrial environments.

Castle part number: GA116L

Key Features

  • Max measurement: 140dB
  • Min measurement: 30dB
  • Linear range: 70dB
  • Measurement ranges: 30 to 100dB; 50 to 120dB; 70 to 140dB
  • Multiple measurement options including personal exposure
  • A, C, and Z weighting for frequency and peak
  • Internal memory for 2100 readings
  • Downloadable via dBdataPro
  • Calculate appropriate ear protection
  • 12-hour battery life
Specification
  • Measurement ranges: 30 to 100dB; 50 to 120dB; 70 to 140dB
  • Display ranges: 29 to 101dB; 59 to 121dB; 69 to 141dB
  • Peak range: 40 to 103dB; 60 to 123dB; 80 to 143dB
  • Linear range: 70dB
  • Detector Characteristics: RMS and Peak
  • Frequency Weighting:‘A’, ‘C’ & ‘Z’ Weighted in Accordance with IEC 61672-1-2002. Combinations of ‘A’, ‘A’&’C’ simultaneous or ‘A’&’Z’ simultaneous available for Leq, Lmax and Pmax.
  • Time Weighting: ’Slow’, ’Fast’ and ‘Impulse’ in Accordance with IEC 61672-1-2002
  • Exchange Rate: 3dB, 4dB or 5dB
  • Criterion Level: 75dB, 80dB, 85dB or 90dB
  • Threshold Level: -5dB, -10dB or OFF
  • Peak: 3dB above top of selected range
  • Display: Custom alphanumeric LCD, digit size 7mm x 5mm
  • Memory: 2100 Data Intervals Maximum
  • Microphone/ Preamplifier: ACO 7146A pre-polarised ½” condenser microphone, 25mV / Pa
  • Calibration: 91.0 to 120.0dB @ 1KHz
  • Batteries: 1 x PP3 (9V) Approximately 12 hours continuous use
  • Operating Temperature: -10 to + 50ºC
  • Humidity Effect: < 0.5dB from 25% to 90% RH
  • Vibration: No effect on instrument
