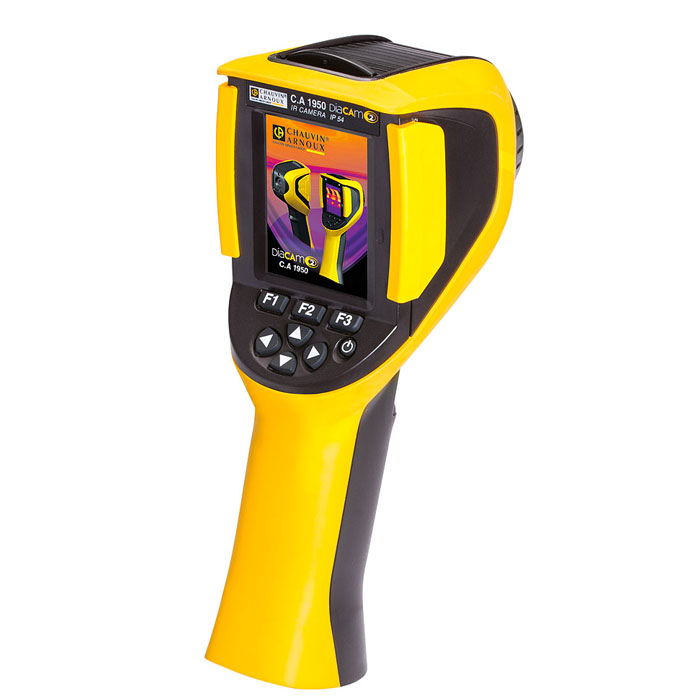

Chauvin Arnoux CA1950 Diacam2 Thermal Camera

SKU
CHAU1950
  • Fixed focus and 20˚ x 20˚ field of view for accurate, clear thermal images
  • Surface temperature measured and depicted from -20˚C to 250˚C
  • Huge 13-hour battery life and sturdy build for field use
More Info
inc VAT £958.80 ex VAT £799.00
Typically ships in 5-7 working days


Product Details

Chauvin Arnoux 1950 Diacam2 Thermal Camera

The Chauvin Arnoux 1950 Diacam2 Thermal Camera is a really handy tool thanks to its range of applications across a spectrum of different sectors. It measures and depicts temperature between -20˚C and +250˚C to within 2% or ±2˚C accuracy via an 80 x 80 pixel thermal sensor. This has uses in building, mechanical maintenance and electrical inspections as abnormal temperature patterns often constitute the first sign of, for example, malfunctioning components, leaks/blockages in water pipes and many other issues.

With a thermal sensitivity of ≤80mK, differences of just 0.08˚C are visualised on the 2.5” (320 x 240 pixel) screen which also has a range of three colour palettes. A visible-light image is supplied by an integrated digital camera and the user can easily toggle between thermal and visible views by using the trigger so analysis is simple with the Chauvin Arnoux 1950. The 20˚ x 20˚ field of view allows quick inspection of a large area whilst the useful fixed focus means that the image is always clear (≥40cm distance from target). The colour scale automatically changes to suit the range of surface temperatures within the image although this can also be manually adjusted as required.

The thermal/visible image is shown alongside a temperature reading at the adjustable measurement point and the date, time and colour scale in order to bring further clarity once the image is viewed on the instrument or on a computer screen. For electrical maintenance, the Chauvin Arnoux 1950 can communicate wirelessly with compatible clamp meters and multimeters via Bluetooth to display an electrical value alongside the thermal/visible image.

Both thermal images and their visible counterparts are stored onto the Chauvin Arnoux 1950’s removable 4GB micro-SD card whilst data transfer can be performed through the supplied USB cable. Bluetooth connectivity also allows the user to add voice annotations to files through the Plantronics Explorer 10 headset which comes provided as standard. Once on a computer, supplied CAmReport software can be used to edit and analyse pictures.

A huge 13-hour battery life means that the user can use the Chauvin Arnoux 1950 for an entire working day without having to worry about charging. It is powered by four rechargeable AA batteries and a charger is included. The camera and all its standard accessories (batteries, charger, software CD, USB cable, micro-SD, bluetooth headset, quick start guide) are supplied in a handy hard carry case with foam padding and there is even a tripod insert on the base. This product has been drop tested to 2m and comes with a 2-year warranty.

Chauvin Arnoux part number: P01651901

Key Features

  • Temperature range: -20˚C to 250˚C
  • 80 x 80 pixel sensor
  • Fixed focus
  • 20˚ x 20˚ field of vision
  • Thermal sensitivity: ≤80mK
  • 2.5” (320 x 240 pixel) screen
  • Auto and manual adjustment of colour scale
  • Three different colour palettes
  • Displays time, date, temperature reading and colour scale
  • Bluetooth connectivity to clamp meters and multimeters
  • Add voice annotations with Bluetooth headset
  • Removable 4GB micro-SD card
  • Data transfer via Micro-SD or USB
  • Analysis and editing through CAmReport software
  • Large 13-hour battery life
  • Withstands 2m fall
  • 2-year warranty
  • Multi-language interface
What's In The Box?
  • Chauvin Arnoux 1950 Diacam2 Thermal Camera
  • Quick start guide for Chauvin Arnoux 1950 Diacam2 Thermal Camera
  • 4 x NimH rechargeable batteries
  • Battery charger
  • 1 x micro-SD card with adapter
  • 1 x USB cable
  • Bluetooth headset
  • CAmReport software on CD
  • Hard carry case
More Information
Specification

Detector Specification

  • Thermal sensor: 80 x 80
  • Type: UFPA microbolometer, 8-14µm
  • Frequency: 9Hz
  • Sensitivity (N.E.T.D.): 80mK @ 30˚C (0.08˚C @ 30˚C)

Temperature Measurement

  • Temperature range: -20˚C to 250˚C
  • Accuracy: ±2˚C or ±2% of reading

Image performance

  • Field of view: 20˚ x 20˚
  • IFOV (spatial resolution): 4.4mrad
  • Focus: Fixed focus
  • Minimum focus distance: 40cm
  • Real image: Yes (320 x 240)
  • Display mode: Thermal image, real image with automatic parallax compensation. Merging of both images possible with PC software

Functions for Analysis

  • Measurement tools: 1 manual cursor + 1 automatic detection + Min-Max on adjustable area + temperature profile + Isotherm
  • Parameter settings: Emissivity, environmental temperature, distance, relative humidity
  • Vocal comments: Yes via Bluetooth (earphones provided)
  • Connectivity: F407 and F607 clamps, MTX 3292 and MTX 3293 multimeters
  • Data storage: On 2 GB micro SD card (approx. 4,000 images) removable up to 32 GB
  • Removable, up to 32 GB: .bmp (thermal and real images recorded simultaneously)

Presentation of Image

  • Adjustment: Automatic or manual adjustment of palette min-max
  • Freezing of image: Animated or fixed image
  • Image display: Multi-palette
  • Screen: 2.8 inches

Power Supply

  • Type: NiMH rechargeable batteries with low self-discharge
  • Recharging: External (charger provided)

Environmental Specifications

  • Operating temperature: -15 °C to +50 °C (-4 °F to +122 °F)
  • Storage temperature: -40 °C to +70 °C (-40 °F to +158 °F)
  • Humidity: 10 % to 95 %
  • Standards: EN 61326-1: 2006 / EN 61010-1 Ed.2
  • Fall resistance: 2 metres on all surfaces
  • Shock resistance: 25 G
  • Vibration resistance: 2 G

Physical Specifications

  • Weight / Dimensions: 700 g with rechargeable batteries / 225 x 125 x 83
  • Ingress protection: IP 54
  • Interfaces: - USB link and Mass Storage function: the product is then recognized as a USB drive for easy transfer of the images / - Bluetooth for connectivity with earphones (vocal comments) and Chauvin Arnoux® Metrix® measuring instruments (F407, F607, MTX 3292, MTX 3293)
  • Tripod mounting: Yes with ¼" insert on the camera

General Specifications

  • Report creation software: Supplied as standard with automatic report generation in .pdf or .docx (Word) format / Compatible with W7 and W8, 32 and 64 Bits
  • Warranty: 2 years
Icon Filename Type Size Download
pdf Chauvin Arnoux 1950 Diacam2 Datasheet pdf 1 MB Download
