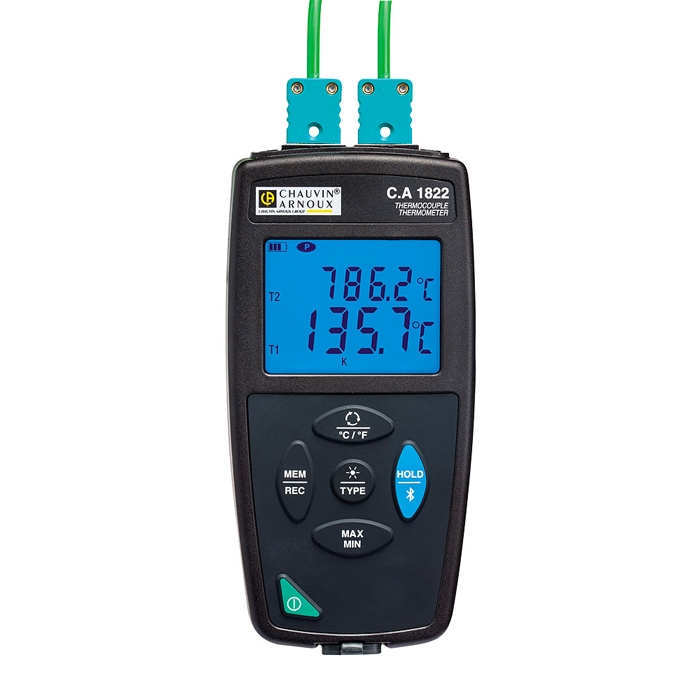

Chauvin Arnoux CA1822 Dual-Channel Thermometer

SKU: CHAUCA1822
  • Measures temperature via a range of different thermocouples (E, J, K, N, R, S, T)
  • Displays differential temperature thanks to simultaneous dual-channel recording
  • Download results from large internal memory using USB or Bluetooth
More Info
In Stock - Available Next Day

Chauvin Arnoux CA1822 Dual-Channel Thermometer

The Chauvin Arnoux CA1822 Dual-Channel Thermometer can measure air, surface and liquid temperature with a minimum temperature reading of -250˚C and a maximum temperature reading 1767˚C. Temperature range, resolution and accuracy depend on the kind of probe used and the thermometer is compatible with a range of thermocouples including type E, J, K, N, R, S, and T. Two connections allow simultaneous display of temperature at different points as well as displaying differential temperature. Please note that the thermometer comes without probes provided as standard.

A large backlit display can show readings from each attached thermocouple simultaneously and the thermometer has options for min/max recording. Data hold will keep readings frozen on screen and it is easy to switch between ˚C and ˚F. Operating the Chauvin Arnoux CA1822 is straightforward thanks to its one-button-one-function principle and the user can save 1 million values to the internal memory. Both spot and pre-programmed measurement are possible with the thermometer and user alarms can be adjusted according to requirements. In monitoring mode, any instance where the alarm is triggered will be saved to the internal memory.

The Chauvin Arnoux CA1822 is suitable for long-term measurement thanks to its long battery life. It will last for 1,000 hours in portable mode or three years in monitoring mode. The USB port and wireless Bluetooth interface allow data transfer to a PC or smart device. Free Data Logger Transfer software is available on the Chauvin Arnoux website and this will facilitate data download and report generation. The thermometer is IP54 rated and comes with a two-year manufacturer’s warranty.

Chauvin Arnoux part number: P01654821

Key Features

  • Thermocouple compatibility: Type E, J, K, N, R, S, T
  • Lowest reading: -250˚C
  • Highest reading: 1767˚C
  • Resolution: 0.1˚C/1˚C
  • Accuracy: ±0.1% to 0.2%
  • Minimum/maximum recording & data hold
  • Internal memory: 1,000,000 values
  • Bluetooth/USB connectivity
  • Pre-programmed or spot monitoring
  • Long battery life
  • Two-year warranty

What's In The Box?

  • Chauvin Arnoux CA1822 Contact Thermometer
  • Carry case
  • 3 x 1.5V AA batteries
  • USB cable
  • Test report
  • Quick start up guide

(Full manual and data transfer software available online from Chauvin Arnoux website)

Specification

Temperature

  • Measurement range: J - 210 to + 1,200 °C / -346 to + 2,192 °F; K - 200 to + 1,372 °C / -328 to + 2,501 °F; T - 250 to + 400 °C / -418 to + 752 °F; N - 200 to + 1,300 °C / -328 to + 2,372 °F; E - 150 to + 950 °C / -238 to + 1,742 °F; R - 0 to + 1,767 °C / 32 to + 3,212 °F; S - 0 to + 1,767 °C / 32 to + 3,212 °F
  • Resolution: ø < 1,000 °C : 0.1 °C and ø ≥ 1,000°C : 1 °C; ø < 1,000 °F : 0.1 °F and ø ≥ 1,000°F : 1 °F
  • Intrinsic uncertainty: (J. K. T. N. E) ø ≤ - 100°C ± (0.2% Reading + 0.6°C)
  • -100°C < ø ≤ + 100°C ± (0.15% R + 0.6°C) + 100°C < ø ± (0.1% R + 0.6°C); (R. S) ø ≤ + 100°C ± (0.15% R + 1.0°C) + 100°C < ø ± (0.1% R + 1.0°C)

Functions

  • Recording: Manual start/stop on the product, short press on MEM: spot recording / Long press on REC: recording at the rate of the current mode; Programmed recording, start date, recording rate (interval from 1 minute to 2 hours) and end date can be customised with the PC software
  • Alarms: Alarm thresholds set using the software. Visual alert on the product in the event of an overrun Recording can be triggered on alarm thresholds
  • Data storage: >1,000,000 values
  • Min/Max/Hold: Yes
  • Units: ˚C or ˚F
  • Backlighting: Yes
  • Auto power off: Yes (configurable)

Power Supply

  • Type: 3 x 1.5V AA / LR6 alkaline batteries; mains connection possible with the mains / micro USB adapter proposed as an accessory
  • Battery life: : 1,000 hrs (portable mode); 3 years for recording (15-minute measurement interval)

Physical Specifications

  • Interfaces: Bluetooth/USB
  • Fixations: Casing equipped with a magnet, a wall-mount system and a slot for suspension of the product. Compatible with the Multi x accessory. Sheath available as an accessory.
  • Connections: Compensated miniature female connector
  • Dimensions: 150 x 72 x 32mm
  • Weight: 260g
  • Ingress protection: IP54
  • Product operating ranges: -10˚C to 60˚C; 10 to 95% RH

General Specifications

  • Data Logger Transfer Windows PC software functions: Display as a graph or a table of values / Data export in graph or Excel table form; Real-time mode / Automatic report generation in Word format / Data format compatible with the Dataview software offered as an accessory

  • Warranty: 2 years
