Chauvin Arnoux CA6011 Continuity Tester

Chauvin Arnoux
SKU: CHAUCA6011
  • Allows the user to measure continuity up to 20Ω, as well as resistance up to 200Ω
  • The CA6011 has a battery life that can record and store up to 30,000 measurements for future reference
  • Measurement compliant with the IEC 61557-4 standards and simple for the user to operate
More Info
Typically ships in 5-7 working days

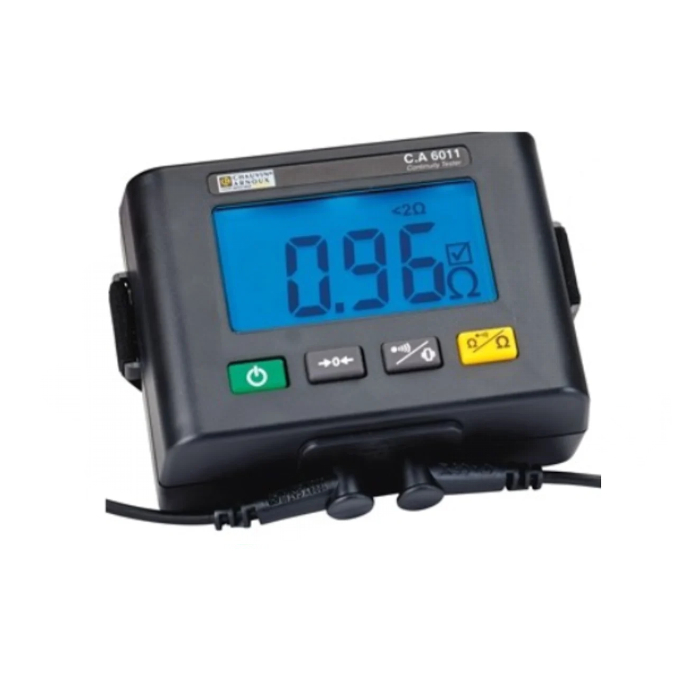

Chauvin Arnoux CA6011 Continuity Tester

The Chauvin Arnoux CA6011 Continuity Tester is a continuity tester designed for testing of the protective earth conductors of electrical equipment, appliances and the installation of new equipment.

The CA6011 allows a user defined programmable continuity threshold (1 Ω or 2 Ω) in accordance with the applicable legislation / Measurement of continuity (up to 20 Ω) or resistance (up to 200 Ω)

The CA6011 has a 2,000 count display with two colour backlighting with up to 30,000 measurements in real operating conditions or 4,500 as per IEC 61557-4 protocol, before the batteries need replacing. The CA6011 boasts a simple user interface consisting of four buttons on the front panel to access all the functions directly.

Safety of the operator is protected thanks to audible and visual (red/blue screens) alarms should voltage be detected and conforms to IEC 61010, 300V Cat IV and IEC 61557-4 safety standards.

Key Features

  • Measurements compliant with the IEC 61557-4 standard
  • Continuity measurement: 0.00 Ω to 20.00 Ω
  • Automatic polarity reversal
  • Measurement current: 200mA
  • Compensation of the resistance of the measuring leads
  • Resistance measurement: Up to 200.0Ω
  • Programmable conformity threshold <1Ω or <2Ω
  • Two colour back lit display
  • Up to 30,000 measurements before a battery change is required
  • Conforms to IEC 61010, 300V Cat IV and IEC 61557-4 safety standards

What's In The Box?

  • Chauvin Arnoux CA6011 Continuity Tester
  • CA 6011 elastic strap x 2 (strap on the casing to wear on the wrist)
Specification
  • Display: 2,000 counts with two colour backlighting

Continuity

  • Measurement Range: 0.00Ω to 2.00Ω/2.00Ω to 20.00Ω
  • Resolution: 10 mΩ
  • Measurement Current: 200mA/20mA
  • Open-Circuit voltage: ±(4 VDC < U < 6 VDC)

Resistance

  • Measurement Range: 1.0Ω to 200.0Ω
  • Resolution: 100mΩ
  • Measurement current: 10mA
  • Open circuit range: ±(4 VDC < U < 6 VDC)

Continuity threshold: Programmable 1Ω ru 2Ω

  • Compensation of cable resistance: Yes, <5Ω

Indication of test compliance/non compliance: Visual and or audible and/or vibrating, configurable/h4>
  • Compliance with standards: IEC 61557-1 & IEC 61557-4 IEC 61010-1, IEC 61010-2-030 300 V CAT IV
  • Automatic standby: 10 minutes/ deactivatable
  • Battery life: 30,000 measurements in real operating conditions 4,500 as per IEC 61557-4 protocol
  • Voltage presence: Visual and audible
  • Power supply: 4 standard 1.5V AA/LR6 batteries
  • Dimensions (instrument + reeling box): 225 x 185 x 135mm
  • Weight: CA6011 only: 350g
