Chauvin Arnoux CA6011 Continuity Tester Kit

Chauvin Arnoux
SKU: CHAUCA6011KIT
  • The kit comes with a 30m reeling box, a 30m green cable, as well as convenient straps
  • The CA6011 can measure continuity up to 20Ω, resistance to 200Ω and is IEC 61557-4 compliant
  • Has a battery life that can store up to 30,000 measurements which can be analysed
More Info
In Stock - Available Next Day

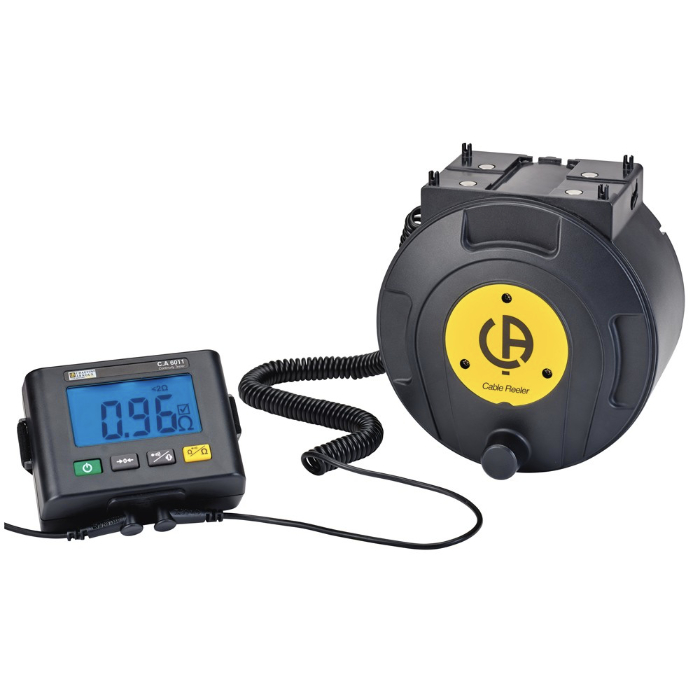

Chauvin Arnoux CA6011 Continuity Tester Kit

The Chauvin Arnoux CA6011 Continuity Tester Kit with a built-in in reeling box with 30m cable that has been designed for systematic testing of protective earth conductors of equipment and installation. Further testing of the earth conductor of a lighting arrestor, the meshing and earth connection of. Faraday cage and floorpans and equipotentiality.

The Chauvin Arnoux CA6011 Continuity Tester Kit contains a number of useful items that aid the user when testing and measuring continuity such as the 30m reeling box and 30m cable. Two hand straps and a shoulder strap and a belt allow the user to easily distribute the weight of the unit allowing for intensive use should it be needed.

The CA6011 allows a user defined programmable continuity threshold (1 Ω or 2 Ω) in accordance with the applicable legislation / Measurement of continuity (up to 20 Ω) or resistance (up to 200 Ω)

The CA6011 has a 2,000 count display with two colour backlighting with up to 30,000 measurements in real operating conditions or 4,500 as per IEC 61557-4 protocol taken, before the batteries need replacing. With a simple user interface the Ca 6011 has four buttons on the front panel to access all the functions directly.

Safety of the operator is protected thanks to audible and visual (red/blue screens) alarms should voltage be detected and conforms to IEC 61010, 300V Cat IV and IEC 61557-4 safety standards.

Key Features

  • Measurements compliant with the IEC 61557-4 standard
  • Continuity measurement: 0.00 Ω to 20.00 Ω
  • Automatic polarity reversal
  • Measurement current: 200mA
  • Compensation of the resistance of the measuring leads
  • Resistance measurement: Up to 200.0Ω
  • Programmable conformity threshold <1Ω or <2Ω
  • Reeling box with 30m cable
  • Elastic strap for wrist and shoulder and waist straps
  • Two colour back lit display
  • Up to 30,000 measurements before a battery change is required
  • Conforms to IEC 61010, 300V Cat IV and IEC 61557-4 safety standards

What's In The Box?

  • Chauvin Arnoux CA6011 Continuity Tester
  • 30m reeling box
  • Replacement parts for continuity
  • 30m green cable
  • CA6011 elastic strap x 2
  • CA6011 straps (shoulder strap and waist belt)
  • Continuity rod
Specification
  • Display: 2,000 counts with two colour backlighting

Continuity

  • Measurement Range: 0.00Ω to 2.00Ω/2.00Ω to 20.00Ω
  • Resolution: 10 mΩ
  • Measurement Current: 200mA/20mA
  • Open-Circuit voltage: ±(4 VDC < U < 6 VDC)

Resistance

  • Measurement Range: 1.0Ω to 200.0Ω
  • Resolution: 100mΩ
  • Measurement current: 10mA
  • Open circuit range: ±(4 VDC < U < 6 VDC)
  • Continuity threshold: Programmable 1Ω ru 2Ω
  • Compensation of cable resistance: Yes, <5Ω
  • Indication of test compliance/non compliance: Visual and or audible and/or vibrating, configurable
  • Compliance with standards: IEC 61557-1 & IEC 61557-4 IEC 61010-1, IEC 61010-2-030 300 V CAT IV
  • Automatic standby: 10 minutes/ deactivatable
  • Battery life: 30,000 measurements in real operating conditions 4,500 as per IEC 61557-4 protocol
  • Voltage presence: Visual and audible
  • Power supply: 4 standard 1.5V AA/LR6 batteries
  • Dimensions (instrument + reeling box): 225 x 185 x 135mm
  • Weight: CA6011 only: 350g/ Reeling box with 30m cable 1.2KG
