Chauvin Arnoux CA6030 RCD Tester

Chauvin Arnoux
SKU: CHAUCA6030
  • Five pre-set milliamp test currents plus one user-adjustable current
  • Automatic voltage and frequency testing on installations
  • Non-trip testing and trip time tests with pulse and ramp mode
More Info
Typically ships in 5-7 working days

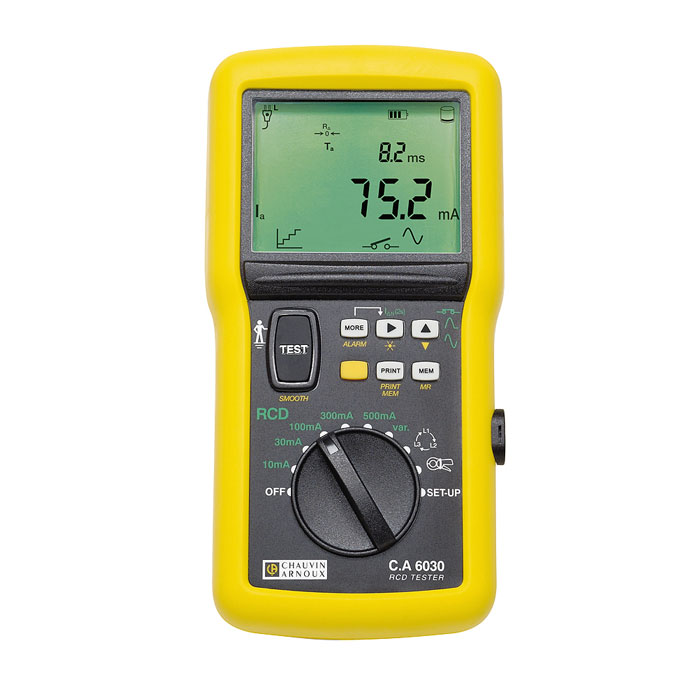

Chauvin Arnoux CA6030 RCD Tester

The Chauvin Arnoux CA6030 RCD Tester is an advanced RCD tester that offers a range of useful functions alongside standard RCD testing functions. It can perform RCD tests on standard, selective, A and AC RCDs by using one of five pre-set milliamp currents (10, 30, 100, 300 or 500mA) or a user-adjustable test current between 6 and 650mA.

Automatic voltage and frequency testing of installations adds greater detail to tests whilst a safe, reliable connection is facilitated by switchable L and N inputs. Non-trip RCD tests and trip time tests are also possible with the Chauvin Arnoux CA6030 and earth loop and 1P earth measurements are another important aspect of the instrument.

It is also possible to use an optional current clamp to measure current and leakage current whilst both two-wire and three-wire phase rotation indications can be displayed on screen.

The Chauvin Arnoux CA6030 has helpful warning alarms which can be customised by the user as well as providing time- and date-stamped printouts of results. Data transfer software for PCs is provided as standard. Results are shown on the clear, backlit display and practicality is aided by a ‘hands-free’ bag with a comfortable neck strap as well as a simple dial interface.

Cat III 600V safety certification and an IP54 dust-proof rating ensure that the Chauvin Arnoux CA6030 is safe to use in a range of environments. The tester comes supplied with a mains lead, a three-wire lead, a three test probes, three crocodile clips and a data transfer cable.

Chauvin Arnoux part number: P01191511A

Key Features

  • Tests standard, selective, A and AC RCDs
  • Five pre-set test currents (10, 30, 100, 300, 500mA)
  • One adjustable test current between 6 and 650mA
  • Automatic voltage (550V) and frequency (450Hz) measurement
  • Switchable L and N inputs plus mains lead
  • Non-trip RCD tests and trip time tests
  • Pulse and ramp mode
  • Current measurement through optional clamp
  • Power-on earth measurement
  • Phase rotation indication (2- or 3-wire)
  • Printable results with time and date stamp
  • Cat III 600V
  • IP54-rated

What's In The Box?

  • Chauvin Arnoux C.A 6030 RCD Tester (GB)
  • "Hands free" carrying strap and accessories bag
  • 1 mains lead
  • 1 3-wire lead
  • 3 test probes
  • 3 crocodile clips
  • 1 user's manual in 5 languages
  • 1 data transfer application software
  • 1 communication lead
Specification

Voltage / frequency measurement

  • Automatic upon connection to installation: From 2 to 550 V (DC or RMS) / from 15.3 to 450 Hz

Differential test

  • I∆n = 10 – 30 – 100 – 300 - 500 mA - Adjustable : 6 mA to 650 mA
  • Non-tripping test: At ½ I∆n
  • Tripping time measurement: At I∆n, 2 I∆n, 5 I∆n, 150 mA, 250 mA
  • Tripping current / time measurements: Ramp from 0.5…1.06 I∆n, in 3% increments
  • Fault voltage: 5.0 to 50.0 V by calculation I∆n x RE
  • Short-circuit current: displayed up to 40 kA by calculation IK = UREF / ZL-PE

Earth loop / live earth

  • By RCD test without tripping and without tripping using 1 auxiliary rod: from 0.1 to 4000 Ω
  • Calculation of fault voltage and short-circuit current memory

Current measurement

  • Using clamp connections 20 A (MN20 & C172) or 200 A (C174)

Phase rotation order

  • On installation frequencies from 15.3 to 64 Hz and voltage 90 to 550 V using conventional method (3 wires) or sequential method (2 wires)
